Product Details:
Payment & Shipping Terms:
|
| Part No.: | 401-00246 2401-9304C HZZC-M2X170CHB | Appliion: | Doosan DH500-7 SOLAR450-III SOLAR450LC-V SOLAR470LC-V SOLAR500LC-V |
|---|---|---|---|
| Conditions: | 100% New | Packing: | Wooden Box |
| Type: | Swing Motor | Terms Of Payment: | Western Union, T/T, Paypal Etc. |
| High Light: | final drive piston shoe,portable water pump |
||
Product Description

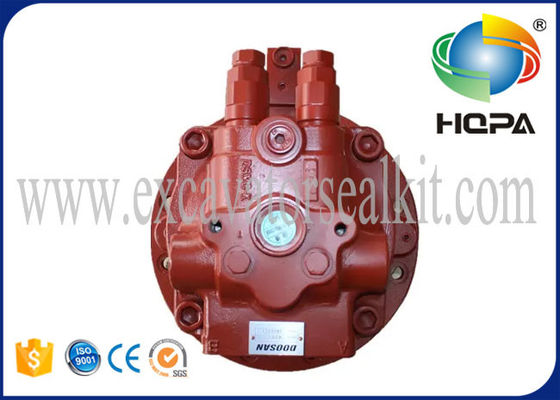

| Part Name | 401-00246 2401-9304C Swing Motor HZZC-M2X170CHB for DH500-7 SOLAR450-III |
| Position | Track Frame |
| Material | Stainless Steel |
| OEM | 401-00246 2401-9304C HZZC-M2X170CHB |
| Type | Swing Motor |
| Appliion | Doosan DH500-7 SOLAR450-III SOLAR450LC-V SOLAR470LC-V SOLAR500LC-V |
| Color | HQPA/OEM |
| Feature | Standard size |
| Product egory | Hydraulic Parts |
| Packing Method | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| The Port of Loading | HUAGNPU,China (Mainland) |
| Transport Method | AIR / SEA / EXPRESS |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P |

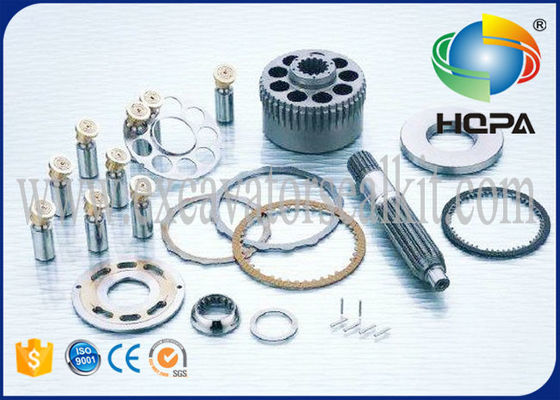

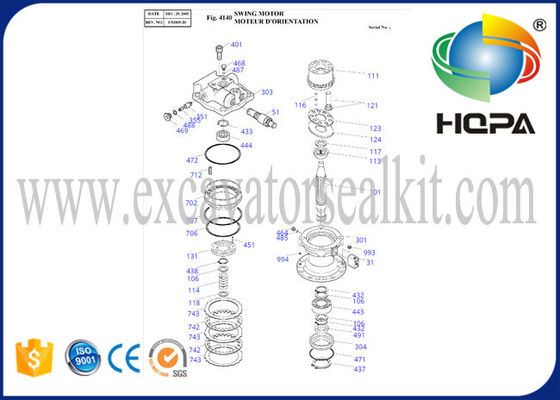

| Pos. | Part No | Qty | Parts name |
| -. | 2401-9304B | [2] | MOTOR;SWING |
| -. | 2401-9304C | [2] | MOTOR;SWING |
| 31 | 717022 | [1] | VALVE;BRAKE |
| 51 | 235886 | [2] | VALVE;RELIEF |
| 101 | 132528A | [1] | SHAFT;DRIVE |
| 106 | 113372 | [3] | SPACER |
| 111 | 116635A | [1] | CYLINDER;BLOCK |
| 113 | 113374B | [1] | BUSH;SPHERICAL |
| 114 | 211949A | [1] | SPRING;CYLINDER |
| 116 | 113375A | [12] | ROD;PUSH |
| 117 | 113376 | [1] | SPACER(F) |
| 118 | 113350 | [1] | SPACER(R) |
| 121 | 704502 | [9] | PISTON ASS'Y |
| 123 | 113353 | [1] | RETAINER |
| 124 | 113354C | [1] | PLATE;SHOE |
| 131 | 135306 | [1] | PLATE;VALVE |
| 301 | 134635 | [1] | CASING F4 |
| 301 | 134635B | [1] | CASING F4 |
| 303 | 135308 | [1] | CASING;VALVE H1 |
| 304 | 113360 | [1] | COVER;FRONT |
| 304 | 113360A | [1] | COVER;FRONT |
| 351 | 135309 | [2] | PLUNGER H |
| 355 | 214337A | [2] | SPRING |
| 401 | 200741 | [4] | BOLT;SOCKET M20X2.5X45 |
| 432 | 202608 | [2] | RING;SNAP |
| 433 | 202599 | [1] | RING;SNAP |
| 437 | 202558 | [1] | RING;SNAP |
| 438 | 212014 | [1] | RING;SNAP |
| 443 | 225681 | [1] | BEARING;ROLLER |
| 444 | 225680 | [1] | BEARING;ROLLER |
| 451 | 212881 | [2] | SPRING;PIN |
| 464 | 108844 | [1] | PLUG;VP |
| 469 | 108892 | [2] | PLUG;RO |
| 471 | 201630 | [1] | O-RING |
| 472 | 212009 | [1] | O-RING |
| 485 | 201689 | [1] | O-RING |
| 488 | 201727 | [2] | O-RING |
| 491 | 211952 | [1] | SEAL;OIL |
| 491 | 238795 | [1] | SEAL;OIL |
| 702 | 113363 | [1] | PISTON;BRAKE |
| 706 | 212008 | [1] | O-RING |
| 707 | 212010 | [1] | O-RING |
| 712 | 211953A | [18] | SPRING;BRAKE |
| 742 | 125812 | [2] | PLATE;FRICTION |
| 743 | 113365 | [3] | PLATE;SEPARATION |
| 993 | 206699 | [1] | PLUG;PT Komatsu |
| 994 | 208276 | [1] | SCREW;RIVER |
| *. | 2401-9242KT | [1] | SEAL KIT;SWING MOTOR |
| *. | K9002875 | [1] | SEAL KIT;SWING MOTOR |
|
Except this, other spare parts also can reach you.
Engine Parts : Piston,liner, gasket set, bearing, valve, crankshaft,connect rod, camshaft,cyl block,cyl head, turbo,starter, water pump, alternator, feed pump, injector, fuel pump.......
Hydraulic main pump, gear pump, swing motor, travel motor, final drive assy, swing device unit, main control valve, hydraulic spare parts, final drive parts, swing motor parts......
Undercarriage Parts: top roller,bottom/track roller, idler,sproker, track shoe, track link, adjust cyl,arm/boom/bucket cyl, adjust spring, exvavator bucket, bucket teeth/tip, H link......
Except this, other spare parts also can reach you.
Engine Parts : Piston,liner, gasket set, bearing, valve, crankshaft,connect rod, camshaft,cyl block,cyl head, turbo,starter, water pump, alternator, feed pump, injector, fuel pump.......
Hydraulic main pump, gear pump, swing motor, travel motor, final drive assy, swing device unit, main control valve, hydraulic spare parts, final drive parts, swing motor parts......
Undercarriage Parts: top roller,bottom/track roller, idler,sproker, track shoe, track link, adjust cyl,arm/boom/bucket cyl, adjust spring, exvavator bucket, bucket teeth/tip, H link......
Throttle/stepper motor,electric appliance,Pressure Switch, Sensor, Switch Start Flameout Solenoid , monitor, controller......
|
Welcom to contact us,we can provide the high quality and best price!
