Product Details:
Payment & Shipping Terms:
|

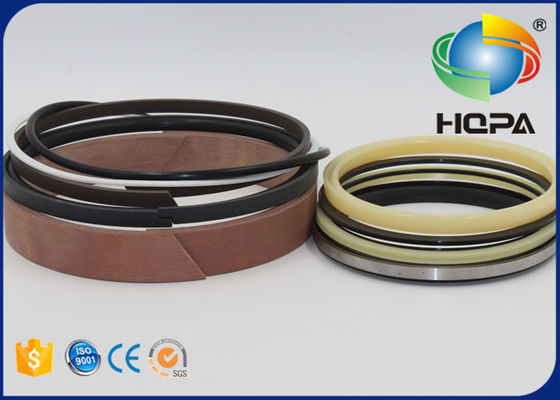

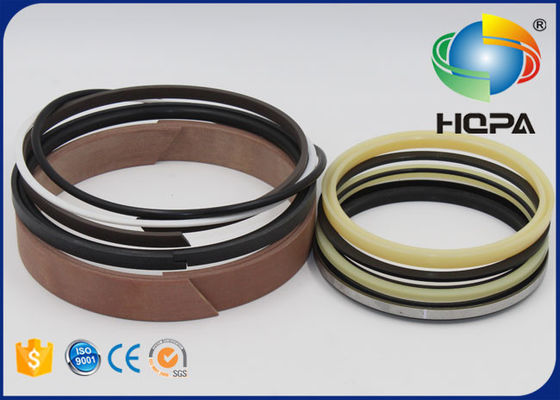

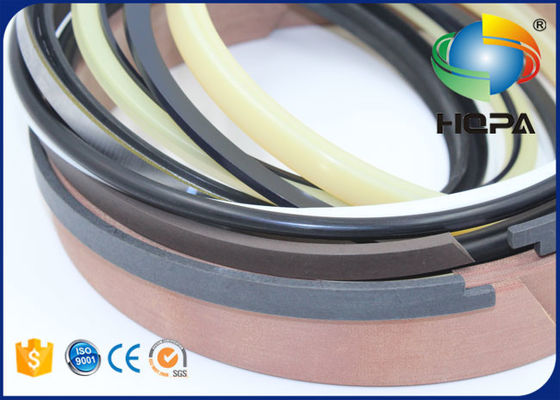

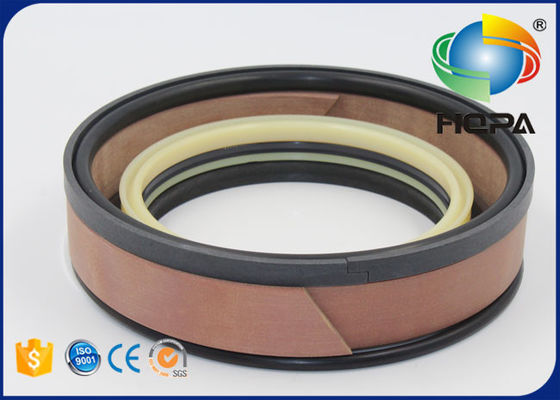

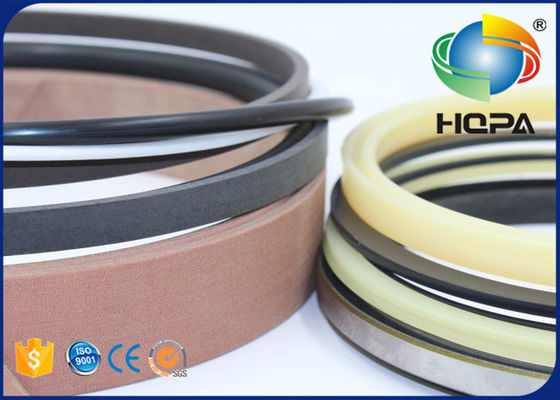

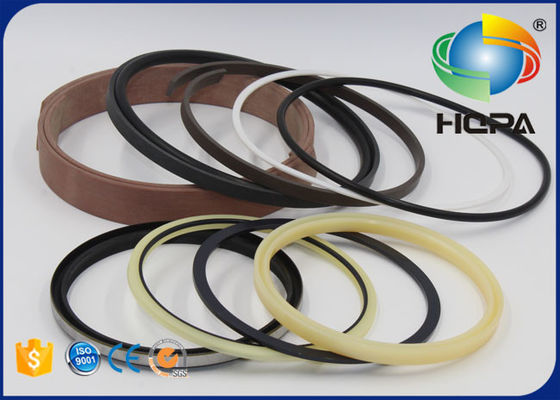

Product: | 225-4646 331-9328 379-9497 518-5140 Boom Cylinder Seal Kit | Part Number: | 225-4646 331-9328 379-9497 518-5140 |
---|---|---|---|
Fit For Model: | Excavator E345C E345D E349D | Group: | Cylinder Seal Kit / Boom Cylinder Seal Kit |
Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
High Light: | 379-9497,518-5140,E345C Boom Cylinder Seal Kit |
1.Product Description:
Hydraulic cylinder seal kits are used to prevent the oil linkage from the cylinder by sealing the gap between different parts of the hydraulic cylinder. It helps to maintain the working pressure of the hydraulic system, to keep its hydraulic power to make sure all the work performance. Usually, there is one piece boom cylinder for the small excavator under 10-tun; the bigger excavator's two pieces boom cylinders. But there is an exception too when the driver will remove one piece for a special purpose, say at some particular working place, it is convenient to work by one cylinder. Soft remind: all refit job should be operated by an experienced technician. |
2.General Product Information:
Brand Name |
HQPA/OEM |
Product Name |
225-4646 331-9328 379-9497 518-5140 Boom Cylinder Seal Kit for E345C E345D E349D |
Product style |
Boom Cylinder Seal Kit / Cylinder Seal Kit |
Part No. |
225-4646 331-9328 379-9497 2254646 3319328 3799497 518-5140 5185140 |
Related parts: |
Swing Motor Seal Kit / Travel Motor Seal Kit / Hydraulic Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
Appliion |
312D, 345C, 345C L, 365B, 365B II, 365C, 365C L, 365C L MH, 374D L |
MOQ |
1 PC |
Condition |
100% New |
Package |
Inner-Plastic Bag; Outer -Standard Carton Box. |
Payment |
Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
Departure ports |
Huangpu(Guangzhou), China (Mainland) |
Delivery time |
3-5 days after payment received(public holiday excluded) |
Place of origin |
China (Mainland) |
Appliion |
Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
Part Number: 225-4646 331-9328 379-9497 518-5140
Group: Boom Cylinder Seal Kit
Fit for model: E345C E345D E349D
Contact: Mr. Sum Huang
Whatsapp: +8618902494641
www.excavatorsealkit.com
When you open and repair the cylinder, please follow below operation: 1. Take off the cylinder from the machine. 2. Remove the head assembly nad the rod assembly from the stick cylinder group. 3.If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it. 4.Meansure the seal kits before fitting. 5.Install the seals. After fix the cylinder assy, test it first before reinstall the stick culinder group on the machine. |
4.Related parts
Part No | Parts name | Part No | Parts name |
125-1286 | SEAL AS | 358-8479 | HEAD |
204-2824 | CYLINDER AS | 153-1727 | BUSHING |
358-8478 | PISTON | 200-3620 | RING-SEAL |
215-9867 | ROD AS | 148-3381 | BEARING |
216-0008 | SEAL-U-CUP | 359-7190 | STOP |
087-5393 | RING-RETAINING | 087-5397 | RING-BACKUP |
114-0763 | BUSHING | 126-1971 | LOCKNUT-SPECIAL |
165-9293 | SEAL-LIP TYPE | 170-9850 | SEAL-BUFFER |
204-2845 | RING | 204-2846 | RING |
095-1730 | SEAL-O-RING | 126-1978 | RING-BACKUP |
7X-2489 | BOLT (M24X3X100-MM) | 5M-6213 | PLUG-PIPE (1/4-18-THD) |
8T-6757 | PLUG-PIPE | 225-4646 |
KIT-SEAL (BOOM CYLINDER) |
