Product Details:
Payment & Shipping Terms:
|

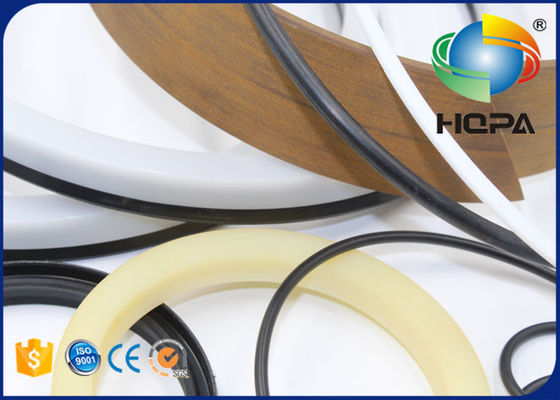

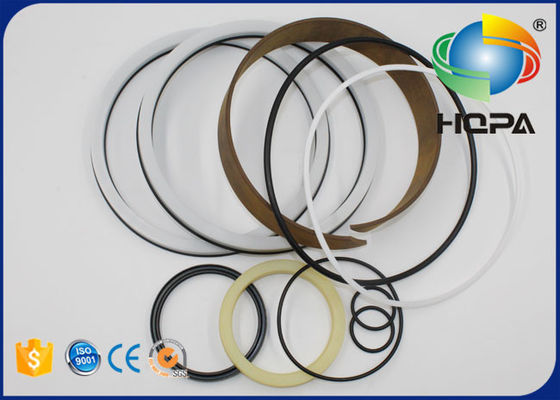

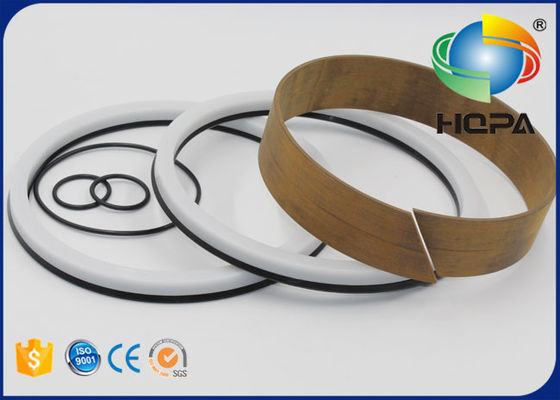

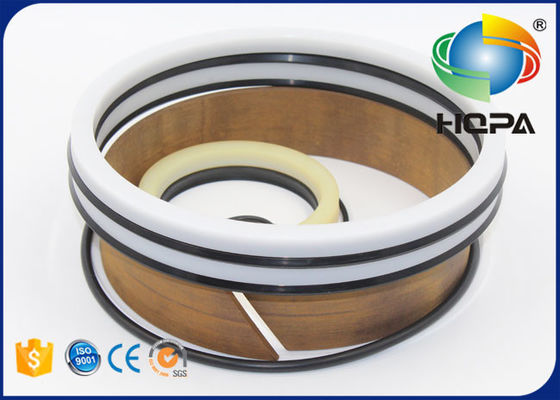

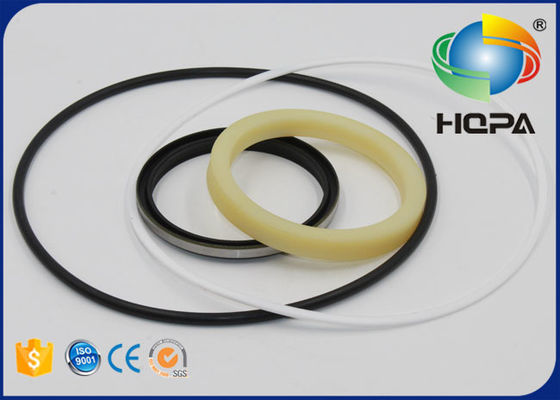

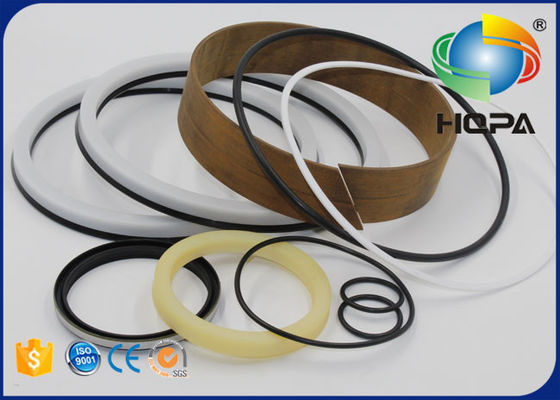

Product: | 175-63-05080 1756305080 Blade Tilt Cylinder Seal Kit | Part Number: | 175-63-05080 1756305080 |
---|---|---|---|
Fit For Model: | Komatsu Bulldozers D150A-1 D155A-1 | Group: | Cylinder Seal Kit / Blade Tilt Cylinder Seal Kit |
Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
High Light: | D155A-1 Cylinder Seal Kit,D150A-1 Cylinder Seal Kit,175-63-05080 |
1.Product Description:
Hydraulic cylinder seal kits are used to seal the gap between different parts of the hydraulic cylinder. The function of hydraulic cylinder seal kits is to prevent oil leakage, to assure the working pressure of the hydraulic system, to maintain its power. |
2.General Product Information:
Brand Name | HQPA/OEM |
Product Name | 175-63-05080 1756305080 Blade Tilt Cylinder Seal Kit for D150A-1 D155A-1 |
Product style | Blade Tilt Cylinder Seal Kit / Tilt Cylinder Seal Kit |
Part No. | 175-63-05080 1756305080 |
Related parts: | Swing Motor Seal Kit / Travel Motor Seal Kit / Hydraulic Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
Appliion | Komatsu Bulldozers D150A-1; D155A-1; |
MOQ | 1 PC |
Condition | 100% New |
Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
Departure ports | Huangpu(Guangzhou), China (Mainland) |
Delivery time | 3-5 days after payment received(public holiday excluded) |
Place of origin | China (Mainland) |
Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
Part Number: 175-63-05080 1756305080
Group: Blade Tilt Cylinder Seal Kit
Fit for model: D150A-1 D155A-1
Contact: Mr. Sum Huang
Whatsapp: +8618902494641
www.excavatorsealkit.com
When you open and repair the cylinder, please follow below operation: 1. Take off the cylinder from the machine. 2. Remove the head assembly and the rod assembly from the stick cylinder group. 3.If it always happens that the seal kit not perform well soon after it fitted, there maybe problem of the cylinder assembly itself. It is better to check the cylinder assembly whether need to change it. 4.Meansure the seal kits before fitting. 5.Install the seals. After fix the cylinder assy, test it first before reinstall the stick culinder group on the machine. |
4.Related parts
Part No | Parts name | Part No | Parts name |
175-63-52402 | CYLINDER ASS'Y | 175-63-52401 | CYLINDER ASS'Y |
175-63-52542 | CYLINDER | 175-63-52541 | CYLINDER |
195-63-52160 | BUSHING | 195-63-42132 | HEAD |
07177-09035 | BUSHING | 707-51-90110 | U-PACKING (KIT) |
154-63-52173 | U-PACKING (KIT) | 07000-15220 | O-RING (KIT) |
07001-05220 | RING (KIT) | 01011-63000 | BOLT |
01601-03075 | WASHER | 195-63-52470 | GLAND |
07177-09020 | BUSHING | 07000-03110 | O-RING |
195-63-94170 | SEAL (KIT) | 07016-00908 | SEAL (KIT) |
07179-00113 | RING | 01010-31865 | BOLT |
01602-01854 | WASHER | 175-63-52422 | ROD |
175-63-52421 | ROD | 175-71-11211 | CAP |
195-63-42480 | RETAINER | 195-63-42161 | PISTON |
07155-02250 | RING (KIT) | 195-63-42461 | PACKING |
195-63-42490 | RETAINER | 04069-01952 | RING |
175-63-52441 | WASHER | 07165-16870 | NUT |
175-63-52552 | TUBE | 175-63-52551 | TUBE |
175-63-52562 | TUBE | 175-63-52561 | TUBE |
07000-13035 | O-RING (KIT) | 01010-31050 | BOLT |
01010-31075 | BOLT | 01602-01030 | WASHER |
195-63-52871 | CLIP | 175-63-52671 | CLAMP |
01010-31420 | BOLT | 01010-31235 | BOLT |
01602-01442 | WASHER | 01602-01236 | WASHER |
175-63-52572 | COVER | 175-63-52571 | COVER |
01010-31440 | BOLT | 01643-31445 | WASHER |
