Product Details:
Payment & Shipping Terms:
|

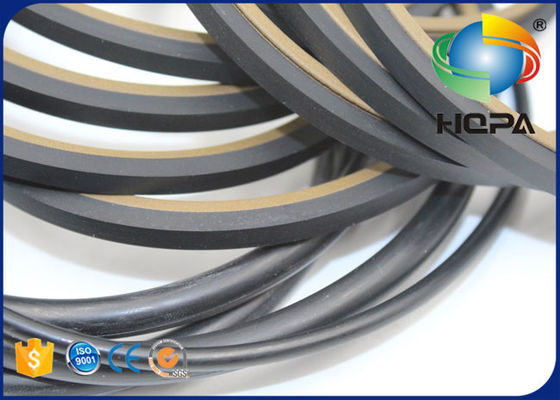

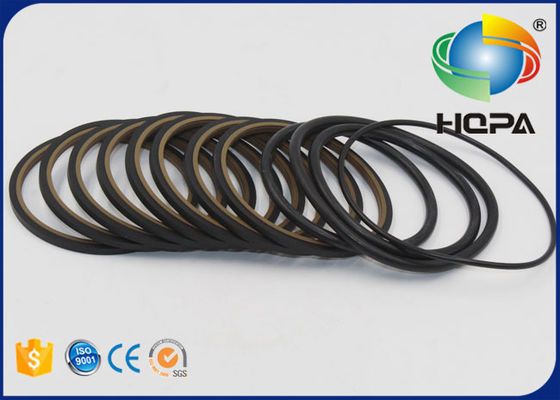

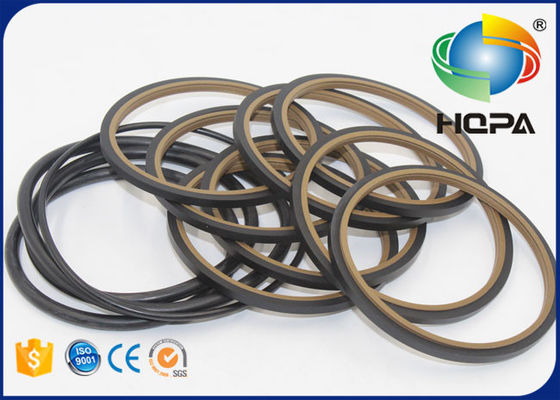

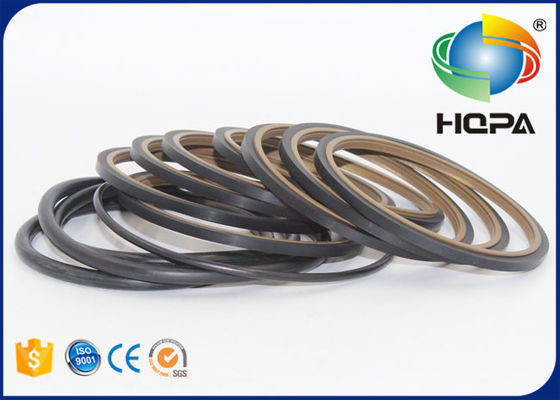

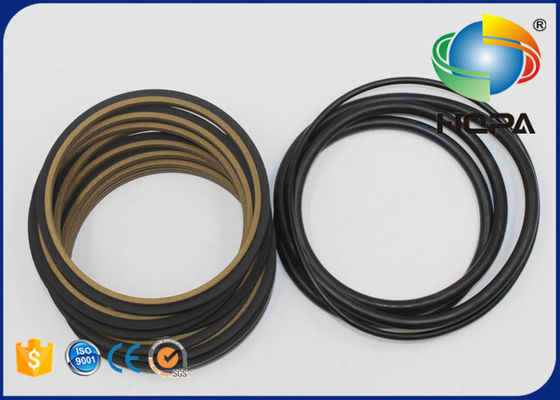

| Product: | 31M8-51530 Turning Joint Seal Kit | Part Number: | 31M8-51530 |
|---|---|---|---|
| Fit For Model: | Hyundai R55-7 R60-7 R80-7 | Group: | Swivel Joint Seal Kit / Turning Joint Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
|
Swivel joint is used to be a channel for the hydraulic fluid going to the travel motor. It has many other names, including rotary manifold, rotary union, center swivel, and center joint. It's an important part of the machine. If there is oil leak in the swivel joint, the travel motor will lose power. So when the travel motor acts without power, you should take it into consideration too that whether it‘s the problem of swivel joint, and to change swivel join seal kits. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 31M8-51530 Turning Joint Seal Kit for Hyundai R55-7 R60-7 R80-7 |
| Product style | Turning Joint Seal Kit / Joint Seal Kit |
| Part No. | 31M8-51530 |
| Related parts: |
Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Hyundai R55-7, R55-7A, R80-7, R80-7A, R80CR-9, R80CR-9A |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
Part Number: 31M8-51530
Group: Turning Joint Seal Kit
Fit for model: Hyundai R55-7 R60-7 R80-7
Contact: Mr. Sum Huang
Whatsapp: +8618902494641
www.excavatorsealkit.com
.
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 31M8-51000 | TURNING JOINT ASSY | 31M8-51500 | SHAFT |
| 31M8-51510 | ROTOR | 31M8-51520 | COVER |
| S631-080004 | O-RING | 31M6-51530 | RING |
| 31M6-51540 | SLIPPER SEAL | S632-105004 | O-RING |
| S601-075004 | RING-RETAINING | S631-095001 | O-RING |
| P220-430201 | PLUG | P220-430203 | PLUG |
| S017-080352 | BOLT-HEX | S411-080002 | WASHER-SPRING |
| 31M8-51530 | SEAL KIT | 31M8-40010 | TRAVEL MOTOR |
| XKAH-00797 | REAR FLANGE ASSY | XKAH-00796 | REAR FLANGE KIT |
| XKAH-00795 | REAR FLANGE | XKAH-00827 | MAIN SPOOL(E-TYPE) |
| XKAH-00793 | SEAT-VALVE | XKAH-00792 | VALVE-T |
| XKAH-00791 | SPRING | XKAH-00790 | PLUG-VP |
| XKAH-00461 | RING | XKAH-00789 | PLUG-MAIN |
| XKAH-00788 | RETAINER-SPRING | XKAH-00787 | PLUG-CHECK |
| XKAH-00786 | VALVE-CHECK | XKAH-00785 | SPRING-MAIN |
| XKAH-00784 | SPRING-CHECK | XKAH-00389 | O-RING |
| XKAH-00104 | O-RING | XKAH-00325 | PLUG |
| XKAH-00050 | PLUG-RO | XKAH-00208 | PLUG-PT |
| XKAH-00387 | VALVE(TWO SPEED) | XKAH-00386 | STOPPER(TWO SPEED) |
| XKAH-00385 | RING(TWO SPEED) | XKAH-00384 | SPRING(TWO SPEED) |
| XKAH-00378 | BALL-STEEL | XKAH-00256 | O-RING |
| XKAH-00326 | O-RING | XKAH-00757 | PIN-PARALLEL |
| XKAH-00756 | PIN-PARALLEL | XKAH-00755 | BOLT-SOCKET |
| XKAH-00052 | O-RING | XKAH-00754 | PLATE-NAME |
| XKAH-00116 | SCREW-RIVET | XKAH-00327 | PLUG-PT |
| XKAH-00838 | SEAL KIT | XKAH-00753 | TRAVEL MOTOR UNIT |
| XKAH-00752 | C/BLOCK & PISTON KIT | XKAH-00831 | BLOCK-CYLINDER |
| XKAH-00828 | PISTON ASSY | XKAH-00747 | PLATE-RETAINER |
| XKAH-00746 | BALL-THRUST | XKAH-00745 | WASHER |
| XKAH-00744 | WASHER-COLLAR | XKAH-00743 | SPRING |
| XKAH-00742 | ROLLER | XKAH-00741 | PISTON ASSY-2 SPEED |
| XKAH-00738 | SPRING | XKAH-00740 | PISTON |
| XKAH-00739 | SHOE | XKAH-00832 | SHAFT-MAIN |
| XKAH-00736 | PLATE-SWASH | XKAH-00833 | PLATE-TIMING |
| XKAH-00734 | PISTON-PARKING | XKAH-00733 | SPRING |
| XKAH-00732 | PLATE-FRICTION | XKAH-00731 | PLATE-MATING |
| XKAH-00730 | SEAL-OIL | XKAH-00729 | O-RING |
| XKAH-00728 | O-RING | XKAH-00727 | RING-SNAP |
| XKAH-00726 | RING-BACK UP | XKAH-00725 | RING-BACK UP |
| XKAH-00724 | BEARING-ROLLER | XKAH-00723 | BEARING-BALL |
| XKAH-00722 | PIVOT | XKAH-00299 | BOLT-SOCKET |
| XKAH-00262 | O-RING | XKAH-00721 | RING-SNAP |
| XKAH-00838 | SEAL KIT | XKAH-00836 | RELIEF VALVE BLOCK KIT |
| XKAH-00719 | VALVE BLOCK | XKAH-00837 | RELIEF VALVE ASSY |
| XKAH-00674 | SEAT | XKAH-00672 | PLUNGER |
| XKAH-00671 | SPRING | XKAH-00670 | BODY |
| XKAH-00669 | SHIM | XKAH-00668 | PISTON |
| XKAH-00667 | ROD | XKAH-00666 | PLUG |
| XKAH-00665 | RING-BACK UP | XKAH-00035 | O-RING |
| XKAH-00194 | O-RING | XKAH-00035 | O-RING |
5. Related Information:
|
Seal kit is the top-priority main product for the one we supply. During the past 10 years, Sonka company build a developing list for the formula for the seal kits from the ground. now we have most data information about the excavator seal kits for the brand Komatsu Hyundai Kobelco DOOSAN Excavators. And next step is for the Volvo loaders, Komatsu loaders, and bulldozers. Now Sonka company has its two own brand seals developed "HQPA" & "SUNCAR" on launching. Sonka company is becoming better and better to provide better service to customers.
