Product Details:
Payment & Shipping Terms:
|

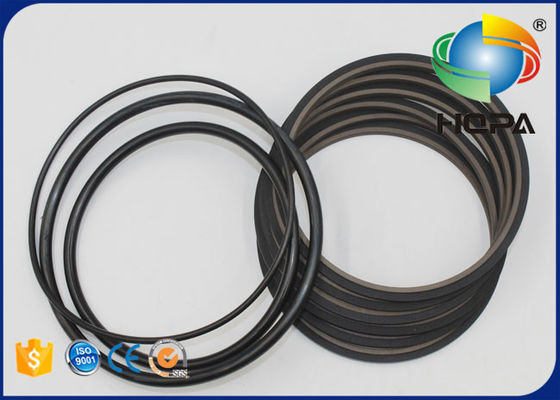

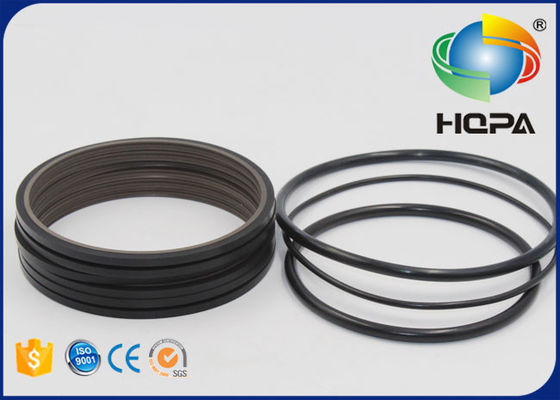

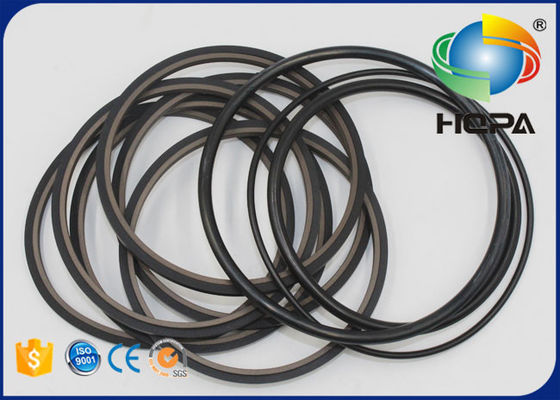

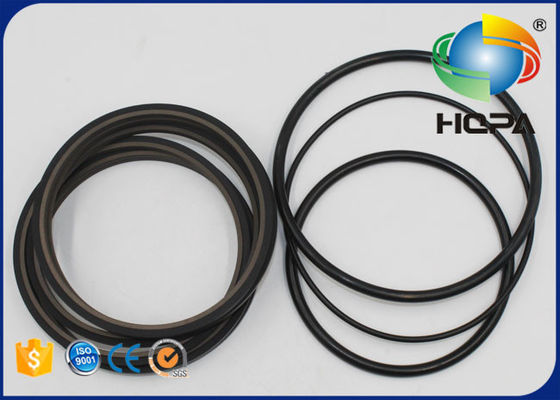

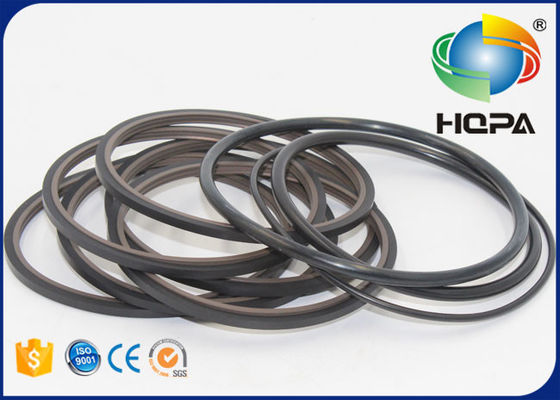

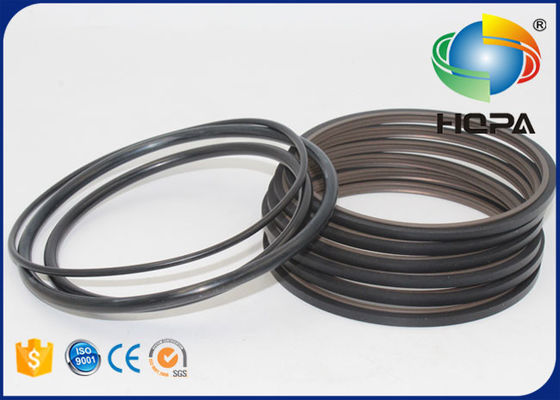

| Product: | 91E2-2705 Turning Joint Seal Kit | Part Number: | 91E2-2705 |
|---|---|---|---|
| Fit For Model: | Hyundai R200-5 R280LC-7 | Group: | Center Joint Seal Kit / Turning Joint Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | 91E2-2705,R280LC-7 Joint Seal Kit |
||
|
Swivel joint is used to be a channel for the hydraulic fluid going to the travel motor. It has many other names, including rotary manifold, rotary union, center swivel, and center joint. It's an important part of the machine. If there is oil leak in the swivel joint, the travel motor will lose power. So when the travel motor acts without power, you should take it into consideration too that whether it‘s the problem of swivel joint, and to change swivel join seal kits. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 91E2-2705 Turning Joint Seal Kit for Hyundai R200-5 R280LC-7 |
| Product style | Turning Joint Seal Kit / Joint Seal Kit |
| Part No. | 91E2-2705 |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Hyundai R200-5 R280LC-7 |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
Part Number: 91E2-2705
Group: Turning Joint Seal Kit
Fit for model: Hyundai R200-5 R280LC-7
Contact: Mr. Sum Huang
Whatsapp: +8618902494641
www.excavatorsealkit.com
.
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 31E1-0001 | TURNING JOINT | 31E1-0002 | HUB |
| 31E1-0003 | SHAFT ASSY | 31E3-0034 | COVER |
| 31E3-0035 | SPACER | 31E3-0036 | SHIM |
| 31E3-0037 | SHIM | 31E6-3002 | PLUG-PORT |
| 31E6-3005 | PLUG-PORT | CO0067B | O-RING |
| CO0073A | O-RING | CO0219B | O-RING |
| 31E6-40500 | SEAL-SLIPPER | S017-120302 | BOLT-HEX |
| S017-200902 | BOLT-HEX | S207-200002 | NUT-HEX |
| S411-120002 | WASHER-SPRING | S601-090004 | RING-RETAINING |
| 91E2-2705 | SEAL KIT | E231-0199 | TRAVEL MOTOR |
| Y20800057A | TRAVEL MOTOR UNIT | 35050BAA-101 | SHAFT-DRIVE |
| PNUP2210 | BEARING-ROLLER | PNK385227 | BEARING-NEEDLE |
| 371A00AA-106 | SPACER-BEARING | OSR50 | RING-SNAP |
| 35050BAA-111 | CYLINDER | 2953801840 | BUSHING-SPHERICAL |
| 2953801842 | SPRING-CYLINDER | 2953801841 | SPACER |
| 371A00AA-121 | PISTON | 371A00AA-122 | SHOE |
| 2943800488 | PLATE-SET | 35050BAA-131 | PLATE |
| 35050BAA-201 | PLATE | 35050BAA-202 | SUPPORT-PLATE |
| 35050BAA-272 | CASING | 35050BAA-303 | CASING-VALVE |
| 35050BAA-304 | COVER-SEAL | V8708243432 | VALVE-RELIEF SUB |
| 5A250050-3000 | SPOOL | 5A250010-3310 | WASHER |
| 35050BAA-362 | SPRING | 5A250010-3410 | BUSHING |
| 35050BAA-364 | COVER | OORBG45 | O-RING |
| OSBM1245 | BOLT-SOCKET | OSBM1650 | BOLT-SOCKET |
| OSBM16120 | BOLT-SOCKET | ORR85 | RING-SNAP |
| PJR1014 | PIN 2 | PJR1524 | PIN-1 |
| PBP116-2403 | PLUG | OVP12 | PLUG |
| OORBG75 | O-RING | PCPP275 | O-RING |
| OORBP18 | O-RING | PTCV48V | SEAL-OIL |
| 35050BAA-501 | PISTON | 35050BAA-503 | STOPPER(L) |
| 35050BAA-504 | STOOPER(S) | 35050BAA-505 | ROD |
| PSSSM1640 | SCREW | ONM16C | NUT |
| OORBP21 | O-RING | OORBP16 | O-RING |
| OT2BP16 | RING-BACK UP | OORBP10A | O-RING |
| 35050BAA-531 | SPOOL | 35050BAA-533 | SPRING |
| 2953801680 | SEAT | 35050BAA-542 | STOPPER |
| ODW732 | BALL-STEEL | OTRS116A08 | ORIFICE |
| OORBP10 | O-RING | PR014 | PLUG |
| OORBP11 | O-RING | OTRS116A15 | ORIFICE |
| 37DAOOAA-688 | PLUG | OORBP14 | O-RING |
| 35050BAA-702 | SPRING | 35050BAA-705 | SPRING |
| 377BOOAA-707 | RING-PISTON | 35050BAA-780 | RING-PISTON |
| PJR1540 | PIN-CENTER | 35050BAA-741 | PLATE |
| 35050BAA-742 | PLATE | 34750-00-367 | GUIDE-SPRING |
| 37KBOOAD-368 | SPOOL | 34750-00-369 | BUSHING |
| 34750-00-370 | SPRING | PR038 | PLUG |
| Y20800058 | T/REDUCTION GEAR | 371A00AA-12 | (121,122) |
| 33522-00-14 | (111,131) | 33522-00-18 | SET PLATE SUB ASSY |
| 33522-00-20 | VALVE CASING SUB ASSY | 33522-00-21 | SWASH PLATE SUB ASSY |
| VZ40103067 | SPOOL-C/BALANCE | 91E2-2706 | SEAL KIT(ITEM:25,34-37 |
| Y20800058 | T/REDUCTION GEAR | 35050BAA-001 | GEAR-RING |
| 35050BAA-002 | HOUSING(16 HOLE) | 35050BAA-004 | COVER-SIDE |
| 35050BAA-005 | CARRIER NO1 | 35050BAA-006 | CARRIER NO2 |
| 35050BAA-007 | CARRIER | 35050BAA-008 | RETAINER-BEARING |
| 35050BAA-009 | GEAR-SUN NO1 | 35050BAA-010 | GEAR-SUN NO.2 |
| 35050BAA-011 | GEAR-SUN NO.3 | 35050BAA-012 | GEAR-PLANETARY NO1 |
| 35050BAA-013 | GEAR-PLANETARY NO.2 | 3050-00-014 | GEAR |
| 35050BAA-015 | PIN NO.1 | 35050BAA-016 | PIN NO.2 |
| 3050-00-017 | PIN | 35050BAA-018 | PLATE-SIDE |
| 35050BAA-019 | PLATE-SIDE | 35050BAA-020 | PLATE-SIDE |
| PKT505825 | GAUGE-NEEDLE | PKT597132 | CAGE-NEEDLE |
| PBN506006 | CAGE-NEEDLE | 35050BAA-024 | RING-THRUST |
| 63050-AA-285 | RING-THRUST | 63050-AA-289 | RING-THRUST |
| OSBM20100 | BOLT-SOCKET | OSBM1035 | BOLT-SOCKET |
| OBM1230 | BOLT | OBP12 | PLUG |
| 35050BAA-033 | BEARING-ANGULAR | P297 | SEAL-FLOATING |
| 35050-00-035 | SHIM | OSPV625 | PIN-SPRING |
