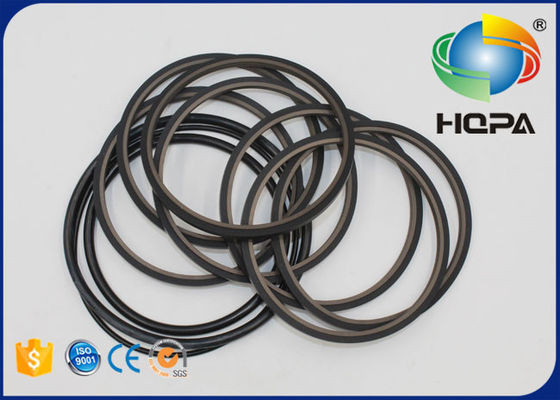

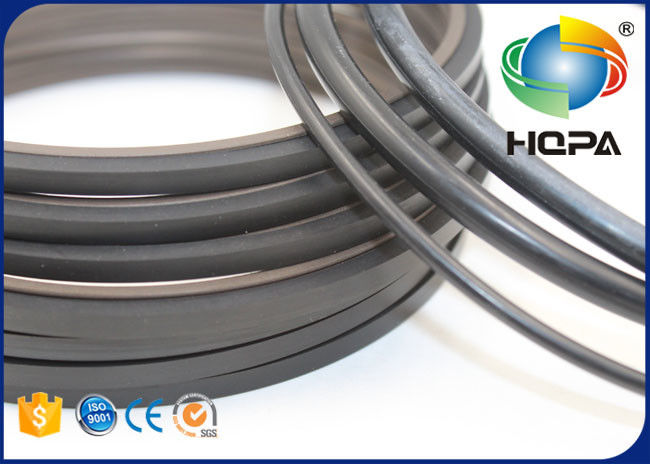

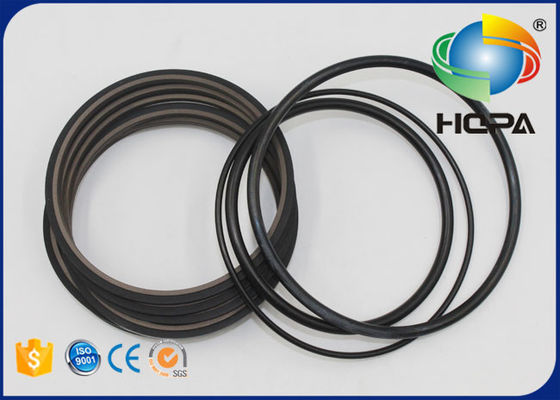

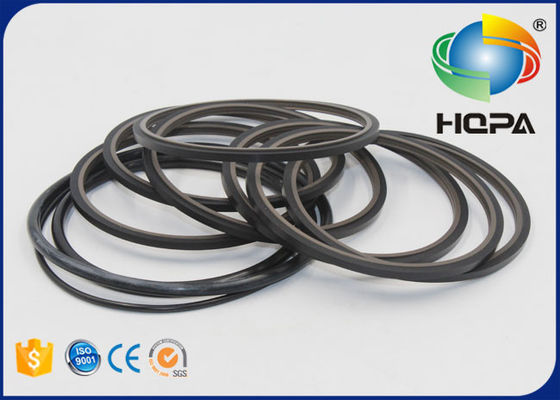

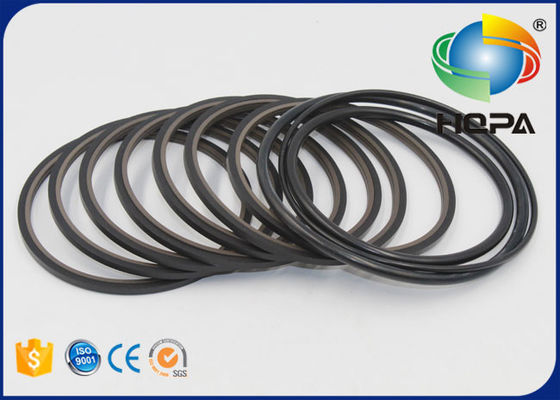

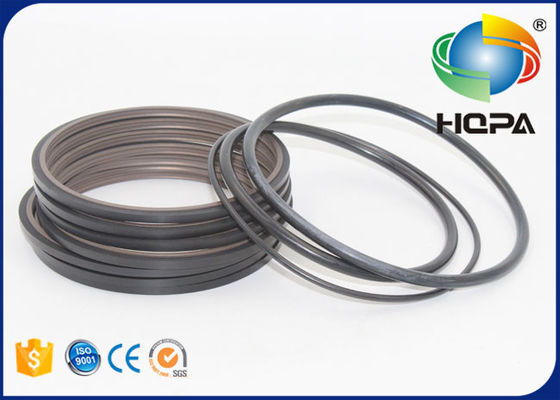

| Product: | 91E6-27111 Turning Joint Seal Kit | Part Number: | 91E6-27111 |
|---|---|---|---|
| Fit For Model: | Excavator Hyundai R480LC-9 | Group: | Center Joint Seal Kit / Turning Joint Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | excavator center joint seal kit,91E6-27111 |
||
|
Swivel joint is used to be a channel for the hydraulic fluid going to the travel motor. It has many other names, including rotary manifold, rotary union, center swivel, and center joint. It's an important part of the machine. If there is oil leak in the swivel joint, the travel motor will lose power. So when the travel motor acts without power, you should take it into consideration too that whether it‘s the problem of swivel joint, and to change swivel join seal kits. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 91E6-27111 Turning Joint Seal Kit for Hyundai R480LC-9 |
| Product style | Turning Joint Seal Kit / Joint Seal Kit |
| Part No. | 91E6-27111 |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Hyundai R480LC-9MH R480LC-9 R480LC-9A R480LC-9S R510LC-7(INDIA) R520LC-9 R520LC-9A R520LC-9S |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
Part Number: 91E6-27111
Group: Turning Joint Seal Kit
Fit for model: Hyundai R480LC-9
Contact: Mr. Sum Huang
Whatsapp: +8618902494641
www.excavatorsealkit.com
.
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 31NB-40500 | TURNING JOINT ASSY | 31QB-40500 | TURNING JOINT ASSY |
| 31QB-40501 | TURNING JOINT ASSY | 34E7-00040 | HUB |
| 34E7-00030 | SHAFT ASSY | 34E7-01520 | COVER-MACHINING |
| 31E3-0035 | SPACER | 31E3-0036 | SHIM |
| 31E3-0037 | SHIM | 31E6-40500 | SEAL-SLIPPER |
| 31Q6-40960 | SEAL-SLIPPER | S631-120001 | O-RING |
| S631-100004 | O-RING | S632-120004 | O-RING |
| P220-430205 | PLUG-HEX | P220-430202 | PLUG-HEX |
| S601-090004 | RING-RETAINING | S017-120306 | BOLT-HEX |
| S411-120006 | WASHER-SPRING | 91E6-27110 | SEAL KIT |
| 91E6-27111 | SEAL KIT(7-10) | 34E7-03050 | TRAVEL MOTOR ASSY |
| 34E7-03051 | TRAVEL MOTOR ASSY | 34E7-02490 | TRACK MOTOR UNIT |
| ZGAR-00039 | ROTARY GROUP | ZGAR-00051 | ROTARY-HYD SECTION |
| ZGAR-00070 | CYLINDER | ZGAR-00071 | LENS-CONTROL |
| ZGAR-00072 | PIN-CENTER | ZGAR-00073 | PISTON |
| ZGAR-00082 | RING-STEEL SEALING | ZGAR-00074 | SHIM-ADJUST |
| ZGAR-00080 | SPRING-PRESSURE | ZGAR-00081 | PLATE-RETAINING |
| ZGAR-00083 | SCREW-PAN HEAD | ZGAR-00052 | SHAFT-DRIVE |
| ZGAR-00053 | SHIM | ZGAR-00058 | PLATE-BACK UP |
| ZGAR-00067 | RING-RETAINING | ZGAR-00068 | BEARING-ROLLER |
| ZGAR-00069 | BEARING-ROLLER | ZGAR-00043 | HOUSING |
| ZGAR-00044 | RING-RETAINING | ZGAR-00045 | RING-SHAFT SEAL |
| ZGAR-00046 | PLATE-BACK UP | ZGAR-00047 | O-RING |
| ZGAR-00048 | SCREW-LOCKING | ZGAR-00049 | O-RING |
| ZGAR-00041 | PIN-THREADED | ZGAR-00050 | NUT-SEAL LOCK |
| ZGAR-00042 | O-RING | ZGAR-00040 | CONTROL GROUP |
| 34E7-02500 | TRAVEL REDUCTION GEAR | 34E7-02501 | TRAVEL REDUCTION GEAR |
| ZTAJ-00003 | SCREW | ZTAJ-00117 | COVER ASSY |
| ZTAJ-00075 | PLUG-OIL BREATHER | ZTAJ-00123 | PLUG-OIL BREATHER |
| ZTAJ-00001 | WASHER | ZTAJ-00005 | O-RING |
| ZTAJ-00101 | PAD | ZTAJ-00077 | GEAR-SUN |
| ZTAJ-00078 | GEAR ASSY-1ST | ZTAJ-00079 | SUN GEAR |
| ZTAJ-00080 | GEAR ASSY-2ND | ZTAJ-00081 | SUN GEAR |
| ZTAJ-00118 | SCREW | ZTAJ-00119 | GEAR ASSY-3RD |
| ZTAJ-00084 | BUSHING | ZTAJ-00085 | HOUSING + BEARING |
| ZTAJ-00124 | HOUSING + BEARING | ZTAJ-00116 | SEAL-LIFETIME |
| ZTAJ-00120 | RETAINER-DISCS | ZTAJ-00065 | RETAINER-DISCS |
| ZTAJ-00121 | HUB | ZTAJ-00087 | SHAFT-BRAKE |
| ZTAJ-00074 | DISC-SINTERED | ZTAJ-00073 | RING-STEEL |
| ZTAJ-00024 | RING-BACK UP | ZTAJ-00025 | O-RING |
| ZTAJ-00026 | O-RING | ZTAJ-00027 | RING-SPIRAL |
| ZTAJ-00088 | PISTON-BRAKE | ZTAJ-00089 | SPRING |
| ZTAJ-00090 | PLATE-SPRING RETAINER | ZTAJ-00031 | CIRCLIP |
| ZTAJ-00021 | O-RING | ZTAJ-00091 | ADAPTOR-MOTOR |
| ZTAJ-00036 | SCREW | ZTAJ-00092 | O-RING |
| ZTAJ-00034 | SCREW | ZTAJ-00098 | O-RING |
| ZTAJ-00122 | CIRCLIP | ZTAJ-00093 | O-RING |
