Product Details:
Payment & Shipping Terms:
|

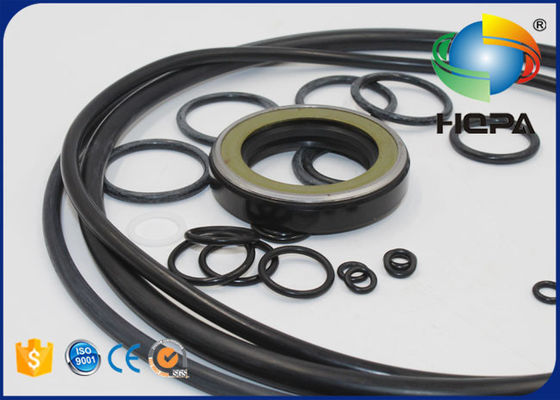

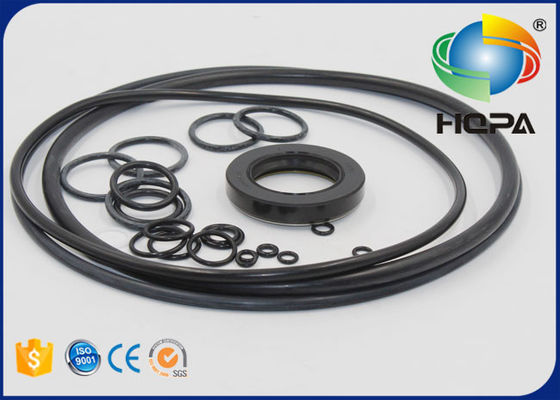

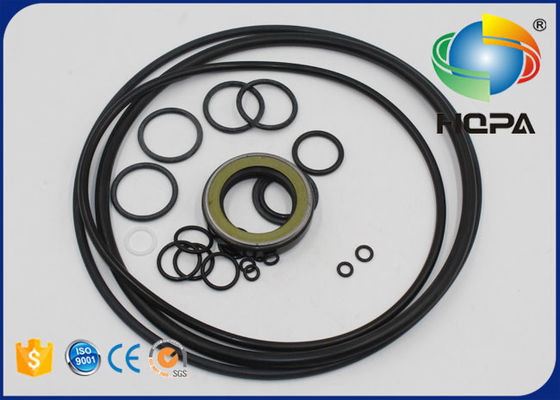

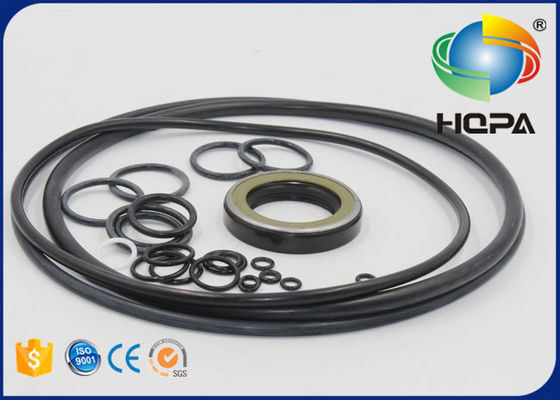

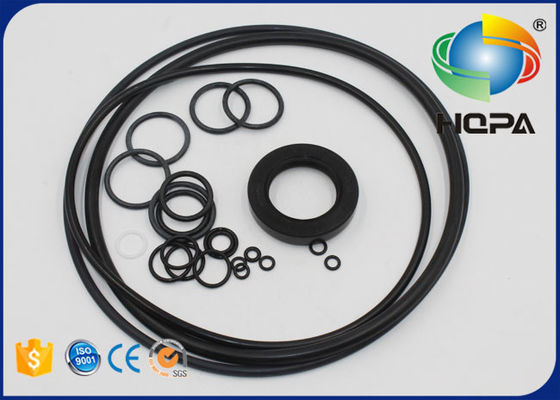

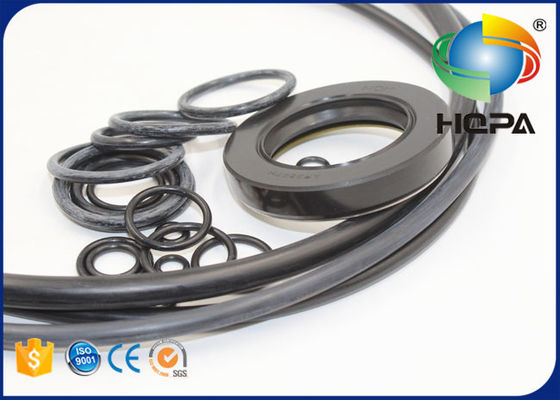

| Product: | 2401-9082K 2401-9082KT 24019082K Travel Motor Seal Kit | Part Number: | 2401-9082K 2401-9082KT 24019082K |
|---|---|---|---|
| Fit For Model: | DOOSAN DH225-7 | Group: | Final Drive Seal Kit / Travel Motor Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | 24019082K,DH225-7 Travel Motor Parts,DOOSAN Excavator Machinery Parts |
||
|
The travel motor provides the power that the final drive transforms into torque. Then torque is transferred to the sprocket, which turns the wheel or track. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 2401-9082K 2401-9082KT 24019082K Travel Motor Seal Kit for DOOSAN DH225-7 |
| Product style | Travel Motor Seal Kit / Motor Seal Kit |
| Part No. | 2401-9082K 2401-9082KT 24019082K |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | DOOSAN SOLAR 255LC-V SOLAR 220LC-Ⅴ SOLAR 220LC-Ⅴ SOLAR 220LC-6 SOLAR 220LC-6 SOLAR 230LC-Ⅴ SOLAR 225LC-V SOLAR 225LC-7A SOLAR 220LC-Ⅴ SOLAR 220LC-Ⅲ DX 260LC(China) DX 255LC DX 225NLC DX 225LC(China) DX 225LC DH 258LC-V DH 258LC-7 DH 225LC-7 DH 220LC-7 DH 220LC-3 |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
Part Number: 2401-9082K 2401-9082KT 24019082K
Group: Travel Motor Seal Kit
Fit for model: DOOSAN DH225-7
Contact: Mr. Sum Huang
Whatsapp: +8618902494641
www.excavatorsealkit.com
.
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 401-00454C | TRAVEL DEVICE | 1.405-00022 | SHAFT;MAIN |
| 1.412-00202 | PLATE;SWASH | 1.441-00292 | BLOCK;CYL'D |
| 1.409-00232 | PISTON | 1.355-00011 | SHOE |
| 1.412-00093 | PLATE;RETAINER | 1.148-00016 | BALL;THRUST |
| 1.412-00203 | PLATE;TIMING | 1.114-00305 | WASHER |
| 1.409-00115 | PISTON;PARKING | 1.131-00055 | SPRING;P/PISTON |
| 1.129-00019 | SPRING;FOR CYL'D | 1.412-00061 | PLATE;FRICTION |
| 1.412-00072 | PLATE;MATING | 1.180-00631 | SEAL;OIL |
| S8002101 | O-RING | S6510700 | RING;SNAP |
| 1.109-00147 | BEARING;BALL | 1.109-00026 | BEARING;BALL |
| 1.109-00135 | ROLLER | 1.409-00116 | PISTON |
| 1.355-00012 | SHOE | 1.131-00042 | SPRING |
| 1.540-00006 | PIVOT | S8011951 | O-RING |
| S5701242 | PIN | *NA00460 | . FLANGE;REAR |
| 1.427-00029 | VALVE;SEAT T-TYPE | 1.420-00009 | VALVE;T-TYPE |
| 1.131-00041 | SPRING;T-TYPE | 2181-1890D4 | PLUG |
| 1.115-00139 | . RING;T-TYPE | 1.424-00062 | SPOOL;MAIN |
| 1.181-00059 | PLUG;FOR MAIN | 1.181-00067 | PLUG;CHECK |
| 1.420-00013 | VALVE;CHECK | 1.131-00058 | SPRING;FOR MAIN |
| 1.129-00006 | SPRING;CHECK | S8000091 | O-RING |
| S8002731 | O-RING | S8000181 | O-RING |
| S5700891 | PIN;PARALLEL | 1.420-00014 | VALVE;REDUCING |
| 2181-1116D1 | PLUG | 2181-1116D2 | PLUG |
| 422-00031 | VALVE;TWO SPEED | K9001047 | PLUG |
| S8000111 | O-RING | 1.131-00099 | . SPRING;TWO SPEED |
| S6250161 | . BALL;STEEL | 1.427-00031 | SEAT;VALVE REDUCING |
| 1.131-00062 | SPRING;REDUCING V/V | 1.115-00141 | RING;REDUCING |
| S8000321 | O-RING | S2221471 | BOLT,SOCKET |
| 1.416-00027 | STOPPER | 1.424-00063 | SPOOL;MAIN |
| 1.129-00018 | SPRING | 1.114-00542 | WASHER |
| 1.415-00005 | ORIFICE | S6550100 | RING;SNAP |
| 1.429-00037 | SEAT | 1.424-00064 | PLUNGER |
| 1.424-00065 | ROD | 1.409-00233 | PISTON |
| 1.441-00295 | BODY | 1.181-00154 | PLUG |
| 1.129-00020 | SPRING | 1.114-00543 | SHIM |
| S8000181 | O-RING | S8000181 | O-RING |
| S8060181 | . RING;BACKUP | 2401-9082K | SEAL KIT |
| 1.401-00011 | MOTOR PART | 1.441-00291 | KIT;CYL'D BLOCK & PISTON |
| 1.409-00231 | PISTON ASS'Y | K9001814 | PISTON ASS'Y |
| 1.426-00024 | RELIEF VALVE ASS'Y | K9001812 | REAR FLANGE ASS'Y |
| K9001813 | KIT;REAR FLANGE | 1.416-00026 | STOPPER ASS'Y |
| 401-00454C | TRAVEL DEVICE | *NA00546 | HUB |
| 1.540-00004 | PIECE;DISTANCE | 1.430-00030 | COVER |
| 1.114-00541 | COLLAR;THRUST | 1.115-00138 | RING |
| 1.123-00034 | PIN | 1.414-00009 | COUPLING |
| *NA01154 | 1.412-00164 | PLATE;THRUST | |
| 1.180-00355 | RING;SEAL | 1.109-00146 | BEARING;ANGULAR BALL |
| 1.109-00145 | BEARING;NEEDLE | 1.180-00512 | SEAL;FLOATING |
| *NA00774 | S8012300 | O-RING | |
| 1.230-00054 | CARRIER | 2181-1116D4 | PLUG |
| S0561471 | BOLT;HEX M12X1.75X85 | S5110701 | WASHER;SPRING M12 |
| 1.123-00026 | PIN;PARALLEL | S2224471 | ..BOLT;SOCKET M8X2.5X40 |
| S6250200 | BALL;STELL | S8000081 | O-RING |
| *NA00495 | S8003401 | JOINT TORIQUE | |
| 1.104-00003 | GAER;RING B | 1.404-00007 | GEAR;CLUSTER |
| 1.403-00111 | GEAR;SUN | *NA00485 | |
| 1.405-00121 | SHAFT;CLUSTER | 1.404-00001 | REDUCTION GEAR ASS'Y |
| 1.156-00001 | HUB ASS'Y | 1.220-00001 | SPINDLE ASS'Y |
| 1.230-00053 | CARRIER ASS'Y |
