Product Details:
Payment & Shipping Terms:
|

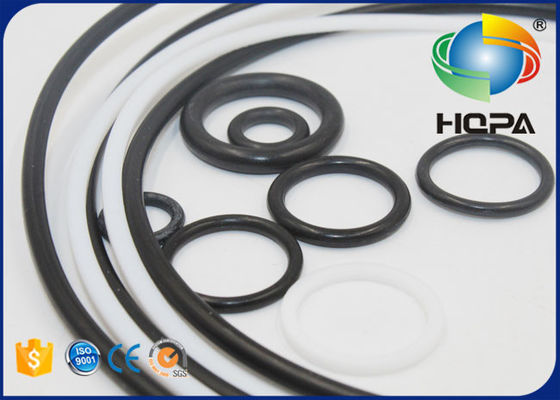

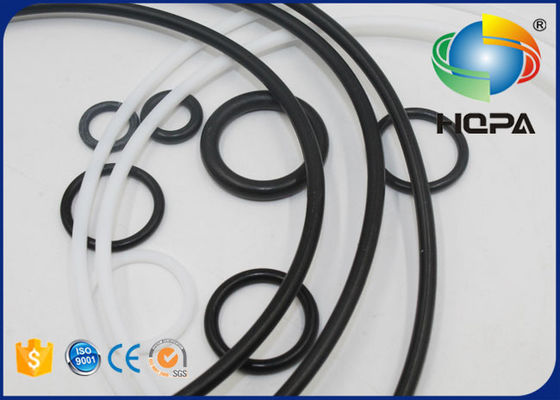

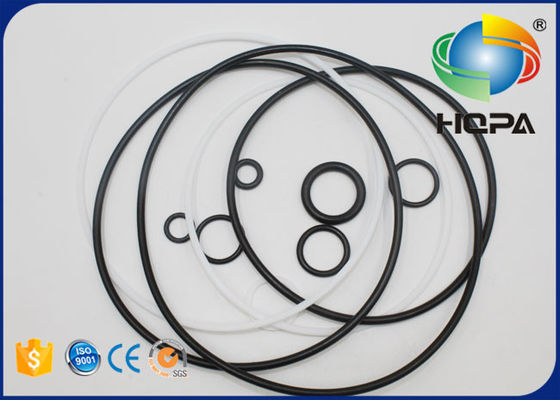

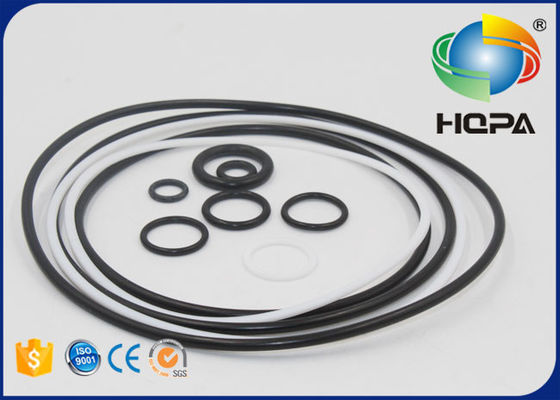

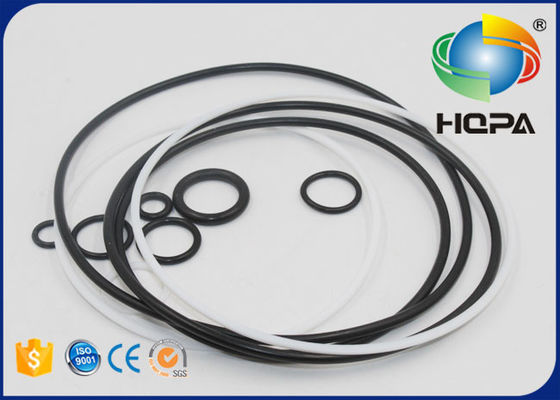

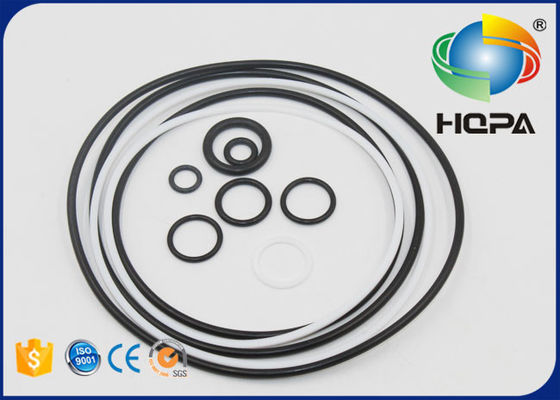

| Product: | 708-7T-00470 708-7T-00480 Swing Motor Seal Kit | Part Number: | 708-7T-00470KT 708-7T-00480KT 708-7T-00470 708-7T-00480 7087T00470 7087T00480 Swing Motor Assy |
|---|---|---|---|
| Fit For Model: | Komatsu PC60-7 PC75UU PC78US-6 | Group: | Swing Motor Seal Kit / Hydraulic Motor Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | 708-7T-00470,PC75UU Swing Motor Seal Kit,PC60-7 Swing Motor Seal Kit |
||
|
Swing motors are hydraulic motors that form the proper turning force of excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power. Swing motor seal kits maintain the power of the swing motor. If the swing motor leaks oil, the boom cylinder will be powerless. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 708-7T-00470 708-7T-00480 Swing Motor Seal Kit for Komatsu PC60-7 PC75UU PC78US-6 |
| Product style | Swing Motor Seal Kit / Motor Seal Kit |
| Part No. | 708-7T-00470KT 708-7T-00480KT 708-7T-00470 708-7T-00480 7087T00470 7087T00480 |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Komatsu PC60-7 PC60-7S PC60-7E PC60-7E-B PC60-7-B PC70-7 PC70-7E PC70-7-B PC70-7E-B PC60-7S-B |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
|
Part Number: 708-7T-00470 708-7T-00480 |
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 708-7T-00480 | MOTOR ASS'Y | 708-7T-01210 | MOTOR SUB ASS'Y |
| 708-7T-11240 | CHN,MOTOR | 708-7T-11670 | COVER,END |
| 706-73-72420 | VALVE | 706-73-72440 | SPRING |
| 706-73-72430 | PLUG | 07002-12434 | O-RING |
| 708-7T-51210 | O-RING | 720-68-19610 | PIN |
| 01010-81250 | BOLT | 708-7T-12420 | SHAFT |
| 708-7T-12240 | BEARING | 708-7T-12250 | BEARING |
| 708-7T-05020 | SPACER KIT | 708-7T-12230 | SEAL,OIL |
| 04065-04518 | RING,SNAP | 708-7T-13140 | BLOCK,CYLINDER |
| 708-7T-13290 | PLATE,VALVE | 708-7T-13540 | PIN |
| 708-7T-13530 | WASHER | 708-7T-13570 | SPRING |
| 04065-03815 | RING | 708-7T-13510 | GUIDE,RETAINER |
| 708-7T-13342 | RETAINER,SHOE | 708-7T-13352 | PISTON SUB ASS'Y |
| 708-7T-53420 | PLATE,THRUST | 708-7T-13710 | SPACER |
| 708-7T-52512 | PLATE | 708-7T-15120 | DISC |
| 708-7T-15140 | PISTON,BRAKE | 07000-12130 | O-RING |
| 708-7T-55220 | O-RING | 708-7T-15150 | SPRING |
| 708-7T-00480 | MOTOR ASS'Y | 702-73-01570 | VALVE ASS'Y,RELIEF |
| 723-60-22230 | RING,BACK-UP | 07000-F2016 | O-RING |
| 07002-12434 | O-RING | 702-15-79000 | VALVE ASS'Y |
| 709-70-71610 | SEAL | 702-15-71130 | SPRING |
| 702-15-71140 | PLUG | 07002-11423 | O-RING |
| 07000-13042 | O-RING | 07000-11007 | O-RING |
| 01252-60825 | BOLT | 201-26-00090 | SWING MACHINERY A. |
| 708-7T-00480 | MOTOR ASS'Y | 201-26-62190 | RING,SNAP |
| 01011-81000 | BOLT | 01643-31032 | WASHER |
| 07042-30108 | PLUG | 07049-01012 | PLUG |
| 07235-10628 | ELBOW | 07002-02434 | O-RING |
| 07235-10424 | ELBOW | 07002-12034 | O-RING |
| 07235-10210 | ELBOW | 07002-11423 | O-RING |
| 201-62-65670 | TEE | 07002-02034 | O-RING |
| 20U-26-21220 | FILLER | 20U-26-21211 | CAP |
| 708-7T-00480 | MOTOR ASS'Y | 708-7T-01210 | MOTOR SUB ASS'Y |
| 708-7T-11240 | CHN,MOTOR | 708-7T-11670 | COVER,END |
| 706-73-72420 | VALVE | 706-73-72440 | SPRING |
| 706-73-72430 | PLUG | 07002-12434 | O-RING |
| 708-7T-51210 | O-RING | 720-68-19610 | PIN |
| 01010-81250 | BOLT | 708-7T-12420 | SHAFT |
| 708-7T-12240 | BEARING | 708-7T-12250 | BEARING |
| 708-7T-05020 | SPACER KIT | 708-7T-12230 | SEAL,OIL |
| 04065-04518 | RING,SNAP | 708-7T-13140 | BLOCK,CYLINDER |
| 708-7T-13290 | PLATE,VALVE | 708-7T-13540 | PIN |
| 708-7T-13530 | WASHER | 708-7T-13570 | SPRING |
| 04065-03815 | RING | 708-7T-13510 | GUIDE,RETAINER |
| 708-7T-13342 | RETAINER,SHOE | 708-7T-13352 | PISTON SUB ASS'Y |
| 708-7T-53420 | PLATE,THRUST | 708-7T-13710 | SPACER |
| 708-7T-52512 | PLATE | 708-7T-15120 | DISC |
| 708-7T-15140 | PISTON,BRAKE | 07000-12130 | O-RING |
| 708-7T-55220 | O-RING | 708-7T-15150 | SPRING |
5. Our advantage:
|
1. We have a professional team, more than 10 years of experience parts.
2. We can offer used and new, OEM, good quality made in china parts to you.
3. All parts can check with part number, all parts can order follow the part number.
4. Quick delivery time, in 24 hours if there is stock.
5. Safe packing to protect the goods, such as wooden boxes, Iron sheets for our parts.
6. A small quantity can be accepted. The sample order also accepted.
7. 24 hours oversea service.
8.Lifelong after-sales service. |
Welcome to contact us, we can provide high quality and the best price!
