Product Details:
Payment & Shipping Terms:
|

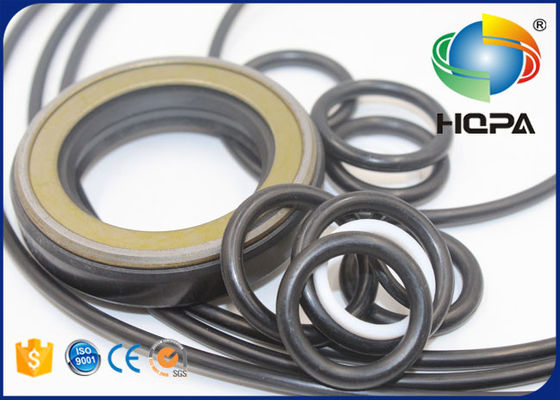

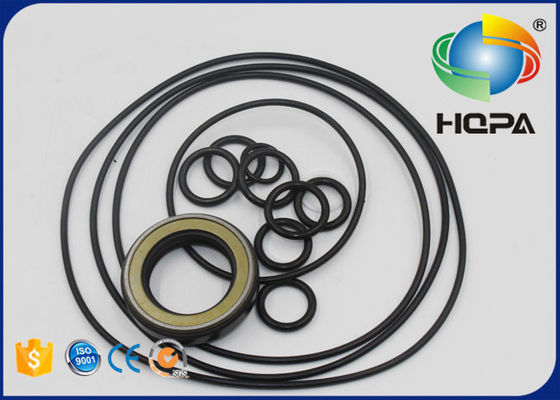

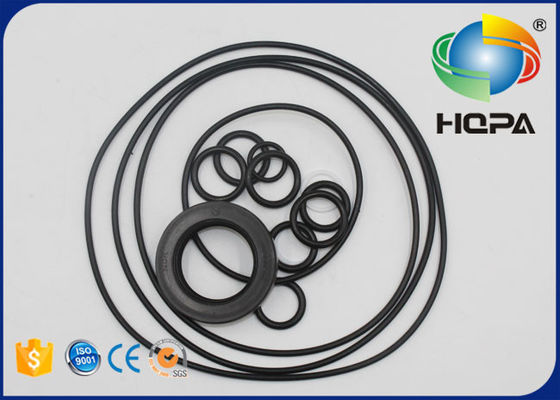

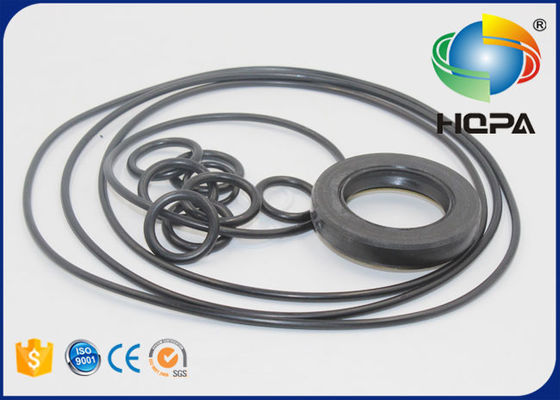

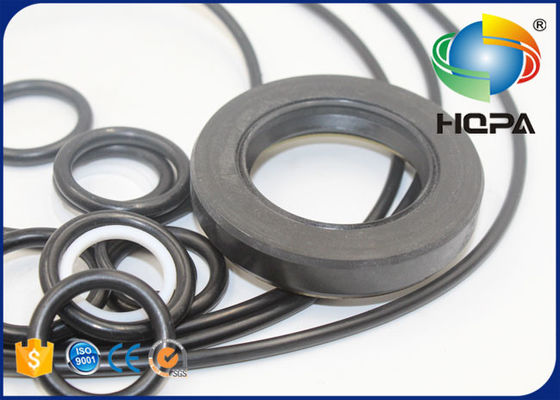

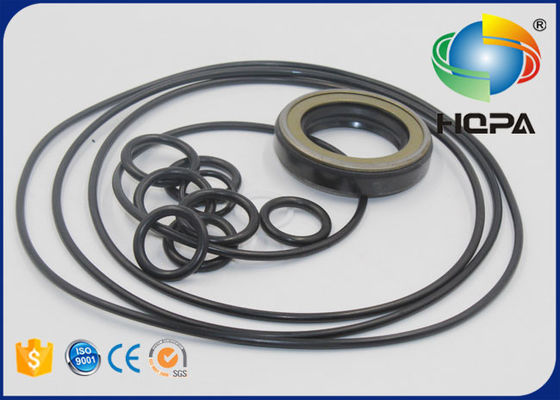

| Product: | 706-73-01071KT 706-73-01071 Swing Motor Seal Kit | Part Number: | 706-73-01071KT 706-73-01071 Swing Motor Assy |
|---|---|---|---|
| Fit For Model: | Komatsu PC100-5 PC120-5 PC120-6 | Group: | Swing Motor Seal Kit / Hydraulic Motor Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | PC100-5 Swing Motor Seal Kit,PC120-5 Swing Motor Seal Kit,706-73-01071 |
||
|
Swing motors are hydraulic motors that form the proper turning force of excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power. Swing motor seal kits maintain the power of the swing motor. If the swing motor leaks oil, the boom cylinder will be powerless. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 706-73-01071KT 706-73-01071 Swing Motor Seal Kit for Komatsu PC100-5 PC120-5 PC120-6 |
| Product style | Swing Motor Seal Kit / Motor Seal Kit |
| Part No. | 706-73-01071KT 706-73-01071 7067301071KT 7067301071 |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Komatsu PC100-5Z PC100-5 PC100-5C PC100-5S PC100L-5 PC120-5Z PC120-5 PC120-5X PC120-5M PC120-5S PC120-5C PC130-5 PC130-5S PC120-5K PC130-5K PC150HD-5K PC150NHD-5K |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
|
Part Number: 706-73-01071KT 706-73-01071 |
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 706-73-01071 | SWING MOTOR ASS'Y | 706-73-72461 | HOUSING |
| 706-73-42121 | CHN,BRAKE | 706-73-92160 | SPRING |
| 706-74-40320 | BOLT | 195-30-33190 | O-RING |
| 706-73-41091 | BLOCK,CYLINDER | 706-73-42740 | PLATE,VALVE |
| 04020-00616 | PIN,DOWEL | 706-73-41163 | PISTON ASS'Y |
| 706-73-41220 | BALL,CENTER | 706-73-41110 | SPRING |
| 706-73-41130 | RING,CENTER | 706-73-40010 | BEARING |
| 706-73-42661 | SHAFT,DRIVE | 706-73-42260 | RETAINER |
| 706-73-42270 | SCREW | 706-73-92180 | PISTON,BRAKE |
| 07000-12130 | O-RING | 07000-12145 | O-RING |
| 706-73-42820 | PIN,DOWEL | 706-73-92140 | PLATE |
| 706-75-90050 | DISK | 706-73-92130 | PLATE |
| 706-74-41880 | BEARING | 706-75-40890 | BEARING |
| 706-73-42610 | SPRING | 706-73-42620 | SEAT |
| 706-73-05010 | SPACER KIT | 04064-04018 | RING,SNAP |
| 706-73-42711 | COVER | 708-8D-12210 | SEAL,OIL |
| 07000-02080 | O-RING | 04065-08530 | RING,SNAP |
| 706-77-72280 | PLUG | 07002-12034 | O-RING |
| 706-77-72170 | PLUG | 07002-12434 | O-RING |
| 706-73-72420 | VALVE | 706-73-72440 | SPRING |
| 706-73-72430 | PLUG | 702-73-01200 | VALVE ASS'Y,C.O.R. (SEE FIG. 6442) |
| 706-73-01071 | SWING MOTOR ASS'Y | 702-73-01200 | VALVE ASS'Y,C.O.R. |
| 07001-02016 | RING,BACK-UP | 07002-12434 | O-RING |
| 07000-22016 | O-RING | 703-08-33110 | SWIVEL JOINT ASS'Y |
| 703-08-91730 | ROTOR | 703-08-95611 | SEAL |
| 703-08-96510 | SEAL,OIL | 04077-00100 | RING,SNAP |
| 703-08-92740 | SHAFT,SWIVEL | 07043-20108 | PLUG |
| 703-08-98611 | PLUG | 07002-12034 | O-RING |
| 703-08-94510 | RING | 04064-07525 | RING,SNAP |
| 703-08-93510 | COVER | 07000-02105 | O-RING |
| 01010-50835 | BOLT | 01643-30823 | WASHER |
5. Fitted for below models:
| PC100-5Z | PC100-5 | PC100-5C | PC100-5S | PC100L-5 |
| PC120-5Z | PC120-5 | PC120-5X | PC120-5M | PC120-5S |
| PC120-5C | PC130-5 | PC130-5S | PC120-5K | PC130-5K |
| PC150HD-5K | PC150NHD-5K |
