Product Details:
Payment & Shipping Terms:
|

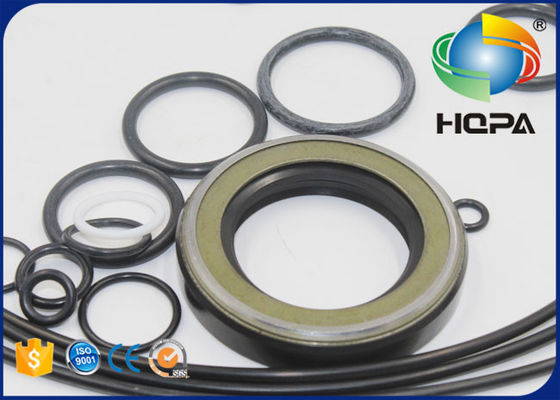

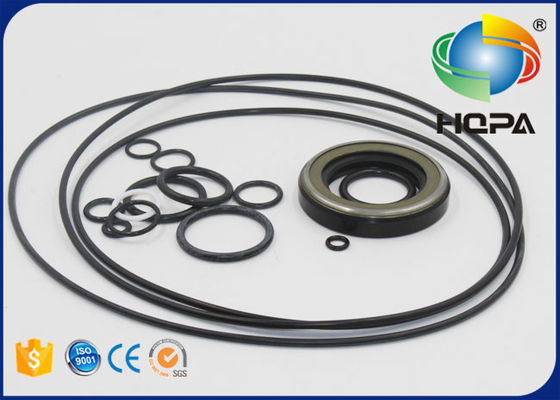

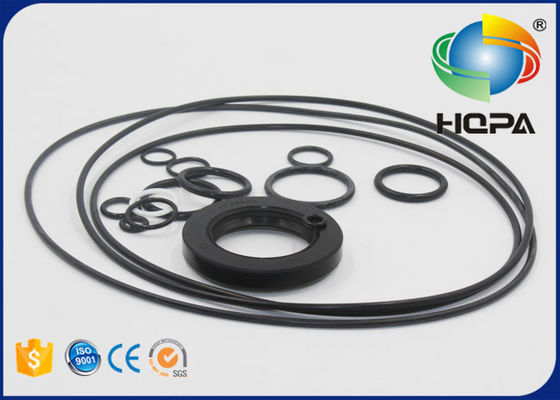

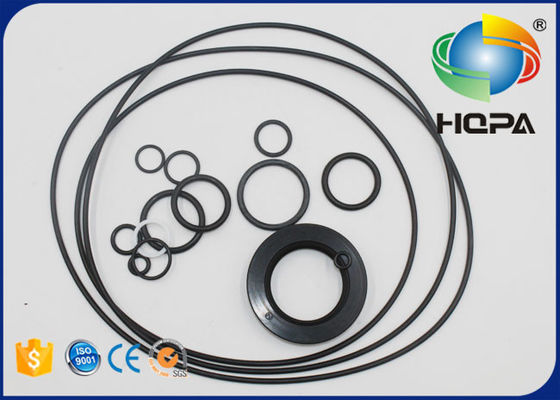

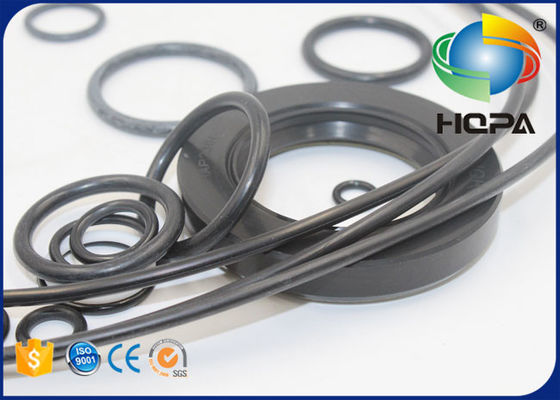

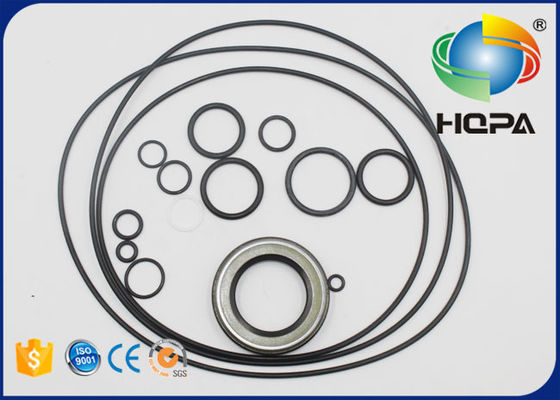

| Product: | 706-75-01150KT 706-75-01150 Swing Motor Seal Kit | Part Number: | 706-75-01150KT 706-75-01150 7067501150KT 7067501150 |
|---|---|---|---|
| Fit For Model: | Komatsu PC200-6 PC220-6 PC210LC-6 | Group: | Swing Motor Seal Kit / Hydraulic Motor Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | PC210LC-6 Swing Motor Seal Kit,PC200-6 Swing Motor Seal Kit,706-75-01150KT |
||
|
Swing motors are hydraulic motors that form the proper turning force of excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power. Swing motor seal kits maintain the power of the swing motor. If the swing motor leaks oil, the boom cylinder will be powerless. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 706-75-01150KT 706-75-01150 Swing Motor Seal Kit for Komatsu PC200-6 PC220-6 PC210LC-6 |
| Product style | Swing Motor Seal Kit / Motor Seal Kit |
| Part No. | 706-75-01150KT 706-75-01150 7067501150KT 7067501150 |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Komatsu PC200-6S PC200-6H PC200-6Z PC200CA-6 PC200LC-6H PC200LC-6Z PC210-6 PC210LC-6G PC210-6D PC210-6G PC210LC-6 PC200LC-6S |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
|
Part Number: 706-75-01150KT 706-75-01150 |
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 706-75-01150 | MOTOR ASS'Y OEM | 706-75-03330 | MOTOR SUB ASS'Y |
| 706-75-43110 | CHN | 706-75-00150 | HOUSING SUB ASS'Y |
| 706-75-40010 | BEARING | 706-75-42820 | PIN,DOWEL |
| 706-77-72170 | PLUG | 07002-12434 | O-RING |
| 708-8H-11530 | PLUG | 07002-11423 | O-RING |
| 709-25-11650 | VALVE | 709-25-11361 | SPRING |
| 709-25-11640 | PLUG | 07000-12020 | O-RING |
| 706-75-74540 | VALVE | 706-75-74550 | SPRING |
| 706-75-74850 | PLUG | 07002-13334 | O-RING |
| 706-75-01150 | MOTOR ASS'Y OEM | 706-75-03330 | MOTOR SUB ASS'Y |
| 565-14-22440 | O-RING | 01252-61445 | BOLT |
| 706-75-43660 | SHAFT,DRIVE | 706-75-42880 | BEARING |
| 706-75-43810 | SPACER | 706-7E-11260 | SPRING |
| 706-7E-11270 | SEAT | 706-76-40890 | BEARING |
| 706-75-05040 | SPACER KIT | 04064-04518 | RING,SNAP |
| 706-7E-11280 | SEAL,OIL | 706-75-43720 | SPACER |
| 04065-06220 | RING | 706-75-43190 | BLOCK,CYLINDER |
| 706-75-43741 | PLATE,VALVE | 706-75-43750 | PIN,DOWEL |
| 706-75-43120 | SHAFT,CENTER | 706-75-43130 | RING,CENTER |
| 706-75-43140 | SPRING | 706-75-05020 | RETAINER KIT |
| 706-75-43160 | PISTON SUB ASS'Y | 706-75-92130 | PLATE |
| 706-75-92340 | PLATE | 706-75-92350 | DISK |
| 706-75-92380 | PISTON,BRAKE | 706-75-92390 | RING,BRAKE |
| 07000-12145 | O-RING | 706-75-92310 | O-RING |
| 706-75-92360 | SPRING | 07000-F2020 | O-RING |
| 07001-02020 | RING | 07002-13034 | O-RING |
| 706-77-72170 | PLUG | 07002-12434 | O-RING |
| 706-75-74920 | PLATE | 07000-11007 | O-RING |
| 01252-60825 | BOLT | 706-75-01150 | MOTOR ASS'Y OEM |
| 20Y-26-22270 | RING | 07042-30108 | PLUG |
| 20Y-26-22210 | CHN | 20Y-26-22330 | BEARING |
| 20Y-26-22340 | BEARING | 20Y-26-22190 | COVER |
| 01010-81045 | BOLT | 01643-31032 | WASHER |
| 07012-00125 | SEAL,20Y-26-22191) | 20Y-26-21141 | SHAFT¤ 15 TEETH OEM |
| 20Y-26-22170 | CARRIER | 20Y-26-22140 | GEAR¤ 36 TEETH |
| 20G-26-11240 | BEARING | 20Y-27-21240 | WASHER |
| 20Y-26-22250 | PIN | 20Y-27-21280 | PIN |
| 20Y-26-21240 | PLATE | 112-32-11211 | BOLT¤ SHOE |
| 20Y-26-22150 | GEAR¤ 101 TEETH | 20Y-26-22130 | GEAR¤ 27 TEETH |
| 04064-07525 | RING | 20Y-26-22220 | THRUST WASHER |
| 20Y-26-22160 | CARRIER | 20Y-26-22120 | GEAR¤ 39 TEETH |
| 20Y-26-21280 | BEARING | 20Y-26-22240 | PIN |
| 20Y-26-22110 | GEAR¤ 22 TEETH | 20Y-26-22230 | THRUST WASHER |
| 195-03-13241 | VALVE | 205-26-71620 | TUBE |
| 07281-00197 | CLAMP | 01011-81465 | BOLT |
| 01643-31445 | WASHER | 20Y-26-21340 | GAUGE |
| 20Y-26-22260 | FILLER | 07000-05240 | O-RING OEM |
| 01010-62060 | BOLT | 01643-32060 | WASHER |
5.Related:
|
We have important business in the overseas market due to our high quality and reasonable prices. Also, we can supply all kinds of excavator spare parts according to customers’ requirements! All the picture is just for your reference. |
Welcome to contact us, we can provide high quality and the best price!
