Product Details:
Payment & Shipping Terms:
|

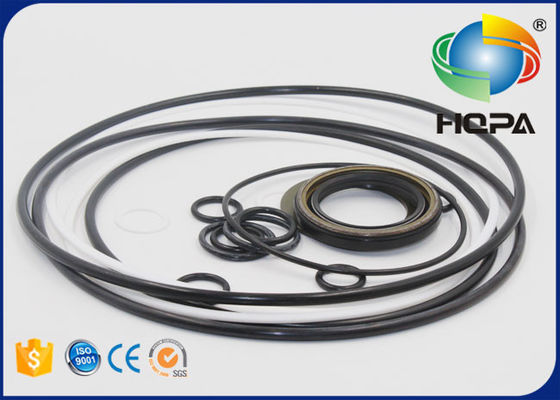

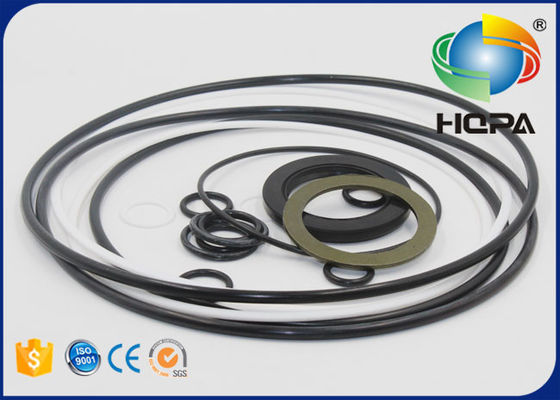

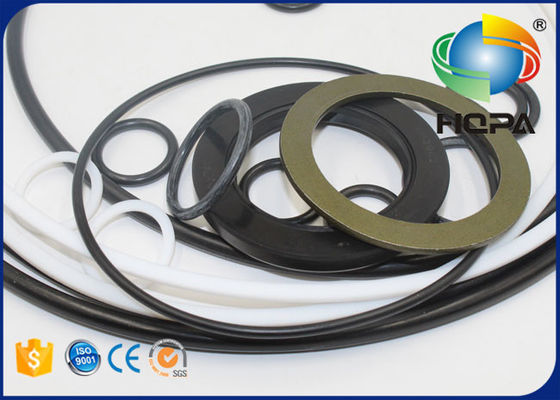

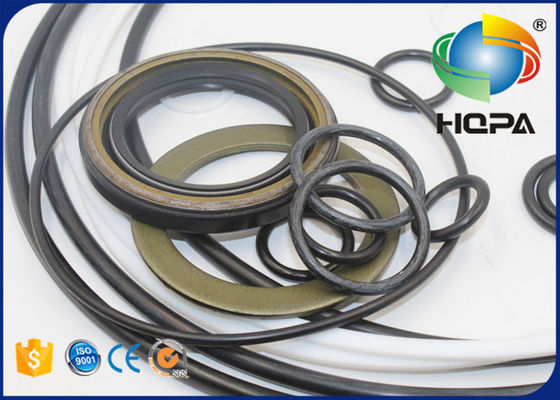

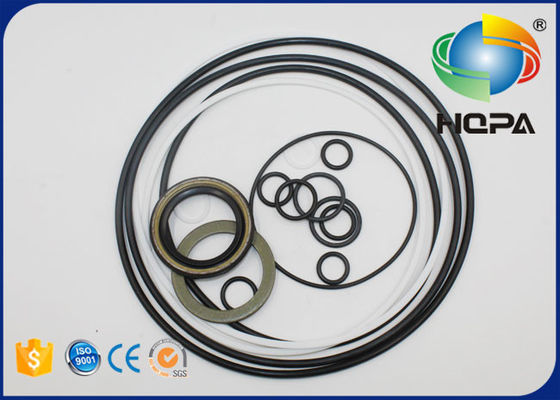

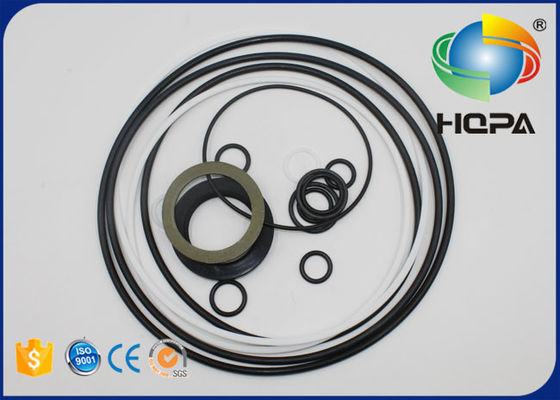

| Product: | 706-77-01150KT 706-77-01150 Travel Motor Seal Kit | Part Number: | 706-77-01150KT 706-77-01150 7067701150KT 7067701150 Swing Motor Assy |
|---|---|---|---|
| Fit For Model: | Komatsu PC300-5 PC400-5 | Group: | Swing Motor Seal Kit / Hydraulic Motor Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | PC400-5 Travel Motor Seal Kit,PC300-5 Travel Motor Seal Kit,706-77-01150 |
||
|
Swing motors are hydraulic motors that form the proper turning force of excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power. Swing motor seal kits maintain the power of the swing motor. If the swing motor leaks oil, the boom cylinder will be powerless. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 706-77-01150KT 706-77-01150 Travel Motor Seal Kit for Komatsu PC300-5 PC400-5 |
| Product style | Travel Motor Seal Kit / Motor Seal Kit |
| Part No. | 706-77-01150KT 706-77-01150 7067701150KT 7067701150 Swing Motor Assy |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Komatsu PC300-5C PC300-5 PC300 PC300LC PC310LC-5 PC300LC-5 PC310-5 PC300NLC-5K PC300LC-5K PC300HD-5K PC300-5K PC300LC-5LC |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
|
Part Number: 706-77-01150KT 706-77-01150 |
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 207-60-X1120 | SWING MOTOR GROUP | 706-77-01150 | SWING MOTOR ASS'Y |
| 706-77-43191 | BLOCK,CYLINDER | 706-77-42160 | PISTON SUB ASS'Y |
| 706-77-42081 | SHAFT,CENTER | 706-77-42110 | SPRING |
| 706-77-43130 | RING,CENTER | 706-77-42071 | BUSHING |
| 706-77-43850 | PLATE,VALVE | 04020-01024 | PIN,DOWEL |
| 706-77-42260 | RETAINER | 706-77-42861 | SHAFT |
| 706-75-41271 | SCREW | 706-77-42022 | CHN,BRAKE |
| 706-77-42881 | BEARING | 706-77-42890 | BEARING |
| 706-77-42041 | SEAT | 706-77-42051 | SPRING |
| 706-77-42440 | SPACER¤ 2.3MM | 706-77-42450 | SPACER¤ 2.5MM |
| 706-77-42460 | SPACER¤ 2.7MM | 04064-06525 | RING,SNAP |
| 706-77-42060 | COVER | 07000-02115 | O-RING |
| 706-77-43950 | SEAL,OIL | 04071-00130 | RING,SNAP |
| 706-77-91331 | PLATE | 706-77-91341 | PLATE |
| 706-77-91350 | DISC | 706-77-91490 | PISTON,BRAKE |
| 07000-15200 | O-RING | 07001-05200 | RING,BACK-UP |
| 07000-15220 | O-RING | 07001-05220 | RING,BACK-UP |
| 07000-05250 | O-RING | 706-77-91410 | SPRING |
| 706-75-42830 | PIN,DOWEL | 01010-51860 | BOLT |
| 01602-21854 | WASHER,SPRING | 706-77-72430 | HOUSING |
| 706-77-72130 | VALVE | 706-77-72140 | SPRING |
| 706-77-72150 | PLUG | 07002-14234 | O-RING |
| 706-77-72170 | PLUG | 07002-12434 | O-RING |
| 706-77-71670 | PLUG | 07002-13034 | O-RING |
| 706-77-76701 | RELIEF VALVE ASS'Y | 07000-23022 | O-RING |
| 07001-03022 | RING,BACK-UP | 07002-13634 | O-RING |
| 207-26-54270 | FILLER | 207-26-54431 | GAUGE |
| 207-26-54430 | GAUGE | 07000-03025 | O-RING |
| 205-26-71680 | BREATHER | 207-26-00100 | SWING MACHINERY A. |
| 207-26-54111 | COVER | 07049-01620 | PLUG |
| 207-26-54121 | COVER | 01010-51660 | BOLT |
| 01643-31645 | WASHER | 01011-51605 | BOLT |
| 207-26-54280 | GEAR | 207-26-54151 | GEAR |
| 06002-32919 | BEARING,ROLLER | 07000-05145 | O-RING |
| 207-26-00120 | SHIM ASS'Y | 207-26-54310 | CAGE |
| 01010-51035 | BOLT | 01643-31032 | WASHER |
| 07042-30108 | PLUG | 07049-01012 | PLUG |
| 207-26-54141 | GEAR | 06002-30214 | BEARING,ROLLER |
| 07000-05175 | O-RING | 207-26-00110 | SHIM ASS'Y |
| 207-26-54290 | CAGE | 04020-01228 | PIN,DOWEL |
| 07000-05150 | O-RING | 01010-52495 | BOLT |
| 01643-32460 | WASHER | 207-26-00100 | SWING MACHINERY A. |
| 207-26-54210 | GEAR | 205-32-51210 | BOLT |
| 207-26-54230 | PLATE | 207-26-54220 | CARRIER |
| 207-26-54160 | GEAR | 207-26-54170 | BEARING,ROLLER |
| 207-26-54180 | PIN | 207-26-54190 | HOLDER |
| 01011-51405 | BOLT | 06000-22222 | BEARING,ROLLER |
| 207-26-54251 | SPACER | 207-26-54131 | CHN |
| 01011-51605 | BOLT | 01643-31645 | WASHER |
| 06000-22324 | BEARING | 207-26-54261 | COVER |
| 01010-51040 | BOLT | 01643-31032 | WASHER |
| 07012-00140 | SEAL | 207-26-54241 | SHAFT |
| 195-03-13241 | VALVE | 207-26-31220 | TUBE |
| 07281-00197 | CLAMP | 07000-05290 | O-RING |
| 01010-52480 | BOLT | 01643-32460 | WASHER |
5. Fitted for Models:
| PC300-5C | PC300-5 | PC300 | PC300LC | PC310LC-5 |
| PC300LC-5 | PC310-5 | PC300NLC-5K | PC300LC-5K | PC300HD-5K |
| PC300-5K | PC300LC-5LC |
