703-09-00221KT 703-09-00221 Swivel Joint Seal Kit For Komatsu PC700-8 PC700LC-8E0

703-09-00221KT 703-09-00221 Swivel Joint Seal Kit For Komatsu PC700-8 PC700LC-8E0
703-09-00221KT 703-09-00221 Swivel Joint Seal Kit For Komatsu PC700-8 PC700LC-8E0

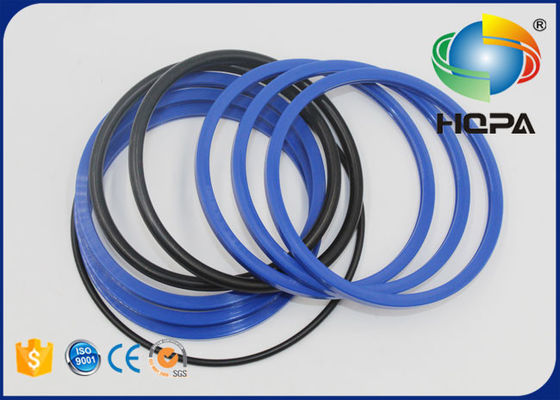

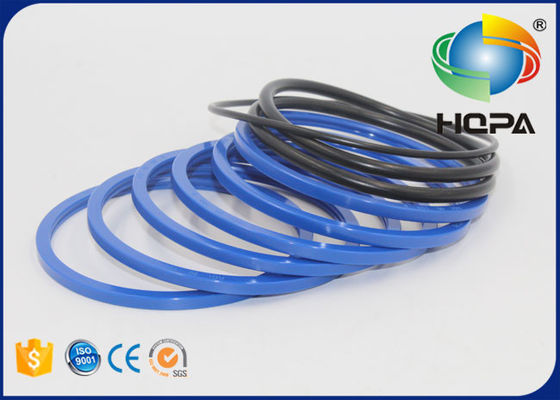

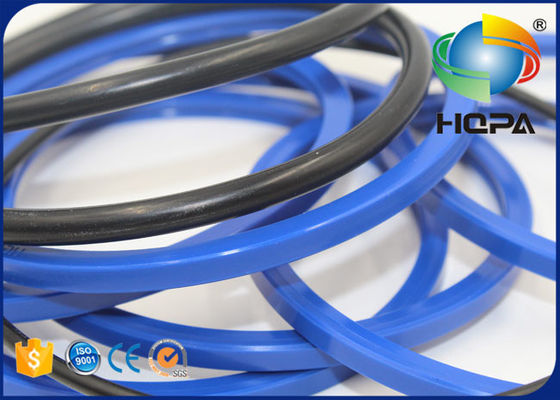

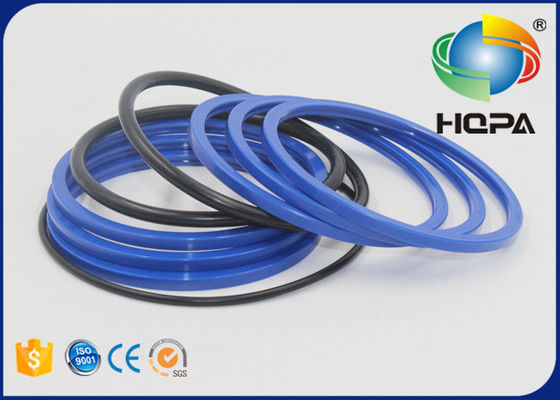

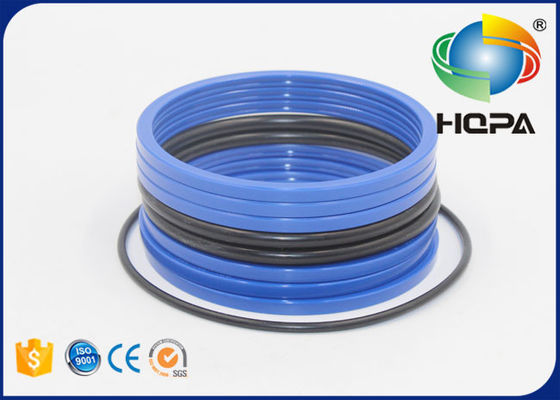

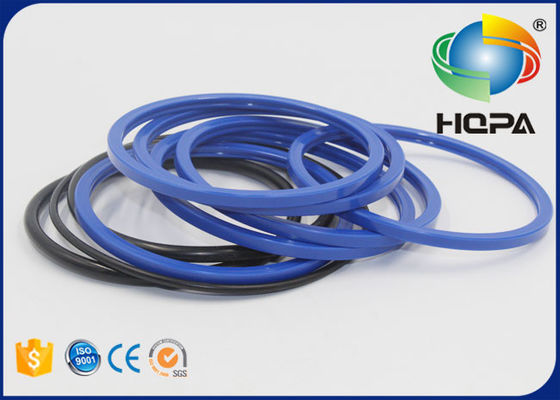

Large Image :  703-09-00221KT 703-09-00221 Swivel Joint Seal Kit For Komatsu PC700-8 PC700LC-8E0

Product Details:

Place of Origin: CHINA(MAINLAND)
Brand Name: HQPA/OEM
Certification: ISO9001
Model Number: 703-09-00221KT 703-09-00221 Swivel Joint Seal Kit

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: negotiation
Packaging Details: PP bag inside, carton box outside
Delivery Time: 3-5 days after payment received(public holiday excluded)
Payment Terms: Western Union, L/C, T/T, MoneyGram, D/A, D/P
Supply Ability: 500 Sets per Week
Detailed Product Description
Product: 703-09-00221KT 703-09-00221 Swivel Joint Seal Kit Part Number: 703-09-00221KT 703-09-00221 7030900221KT 7030900221 Swivel Joint Assy
Fit For Model: Excavator Komatsu PC700-8 PC700LC-8E0 Group: Center Joint Seal Kit / Swivel Joint Seal Kit
Loading Port: HUAGNPU,China (Mainland) Packing: Neutral Packing / HQPA Packing
High Light:

PC700-8 Swivel Joint Seal Kit

,

703-09-00221KT Swivel Joint Seal Kit

,

PC700LC-8E0

703-09-00221KT 703-09-00221 Swivel Joint Seal Kit for Komatsu PC700LC-8E0
1.Product Description:

Swivel joint is used to be a channel for the hydraulic fluid going to the travel motor.

It has many other names, including rotary manifold, rotary union, center swivel, and center joint.

It's an important part of the machine.

If there is oil leak in the swivel joint, the travel motor will lose power.

So when the travel motor acts without power, you should take it into consideration too that whether it‘s the problem of swivel joint, and to change swivel join seal kits.




2.General Product Information:



703-09-00221KT 703-09-00221 Swivel Joint Seal Kit for Komatsu PC700-8 PC700LC-8E0
Brand Name HQPA/OEM
Product Name 703-09-00221KT 703-09-00221 Swivel Joint Seal Kit for Komatsu PC700-8 PC700LC-8E0
Product style Swivel Joint Seal Kit / Joint Seal Kit
Part No. 703-09-00221KT 703-09-00221 7030900221KT 7030900221 Swivel Joint Assy
Related parts: Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit
Application Komatsu PC600-8 PC600-8R PC600LC-8R PC600LC-8 PC700LC-8E0 PC650LC-8E0 PC600LC-8E0 PC600-8E0 PC700LC-8R PC600LC-8R1 PC600-8R1
MOQ 1 PC
Condition 100% New
Package Inner-Plastic Bag; Outer -Standard Carton Box.
Payment Western Union, L/C, T/T, MoneyGram, D/A, D/P etc.
Departure ports Huangpu(Guangzhou), China (Mainland)
Delivery time 3-5 days after payment received(public holiday excluded)
Place of origin China (Mainland)
Application Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck.





3. Fit Model



Part Number: 703-09-00221KT 703-09-00221
Group: Swivel Joint Seal Kit
Fit for model: Komatsu PC600-8 PC600-8R PC600LC-8R PC600LC-8 PC700LC-8E0 PC650LC-8E0 PC600LC-8E0 PC600-8E0 PC700LC-8R PC600LC-8R1 PC600-8R1



4.Related parts



703-09-00221KT 703-09-00221 Swivel Joint Seal Kit for Komatsu PC700-8 PC700LC-8E0



Part No Parts name Part No Parts name
703-09-00221 Swivel Joint Assembly 703-09-43201 Swivel Joint Assembly
703-09-95620 Seal 07000-15090 O-Ring
703-09-98610 Plug 07002-12434 O-Ring
703-09-94210 Ring, Snap 04064-08530 Ring, Snap
703-09-93610 Cover 07000-12115 O-Ring
01010-80835 Bolt 01643-30823 Washer
21M-26-21170 CHN 06000-22222 Bearing
06000-22324 Bearing 207-26-54263 Cover
01010-81040 Bolt 01643-31032 Washer
207-26-61210 Seal 21M-26-11180 Shaft
207-26-62150 Coupling 207-26-54230 Plate
205-32-51211 Bolt 20Y-27-22170 Carrier
20Y-27-22140 Gear 20Y-27-22220 Bearing
20Y-27-21250 Washer, Thrust 20Y-27-21230 Pin
20Y-27-21290 Pin 207-26-62190 Gear
20Y-27-13310 Washer, Thrust 20Y-27-22240 Washer, Thrust
21M-26-11261 Gear 21M-26-11150 Carrier
21M-26-11140 Gear 20Y-27-22210 Bearing
20Y-27-21240 Washer, Thrust 20Y-27-21220 Pin
20Y-27-21280 Pin 21M-26-11190 Plate
21M-26-21130 Gear 20Y-27-21310 Washer
21M-26-11161 Cover 20Y-27-22280 O-Ring
20Y-27-13281 Bolt 01643-31645 Washer
208-27-61350 Button 20Y-26-22411 Cover
01010-81445 Bolt 01643-31445 Washer
07042-30617 Plug, Taper 07042-30108 Plug
07040-12412 Plug 07002-12434 O-Ring
707-01-0CA60 Boom Cylinder Assembly 721-13-18230 Cylinder
707-58-12660 Rod 707-76-11160 Bushing
07145-00110 Seal, Dust, 07020-00000 Fitting, Grease
707-76-12530 Bushing 07145-00125 Seal, Dust,
707-71-32900 Collar 707-35-91840 Ring, Back-Up,
07000-15175 O-Ring, 707-71-61330 Plunger
707-27-18930 Head, Cylinder 707-56-12740 Seal, Dust,
07179-13136 Ring, Snap 707-51-12030 Packing, Rod,
707-51-12650 Ring, Buffer, 707-52-90981 Bushing
07179-13126 Ring, Snap 01011-82400 Bolt
707-88-75410 Washer 707-36-18520 Piston
707-44-18250 Ring, Piston, 707-39-18510 Ring, Wear,
707-44-18920 Ring 07000-B5110 O-Ring,
07001-05110 Ring, Back-Up, 01310-01225 Screw
707-86-13240 Tube,LHS 21M-63-52180 Tube,LHS
707-88-28240 Bracket 707-88-26120 Band
07372-21060 Bolt 01643-51032 Washer
07000-13035 O-Ring, 01010-81025 Bolt
01643-31032 Washer 07283-33442 Clip, Pipe
01597-01009 Nut 07371-31049 Flange, Split
707-88-33040 Cap 07372-21035 Bolt
707-99-68480 Service Kit, Boom Cylinder 01643-51232 Washer





Welcome to contact us, we can provide high quality and the best price!
