Product Details:
Payment & Shipping Terms:
|

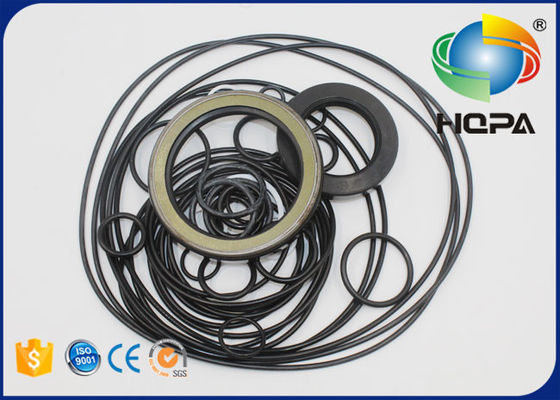

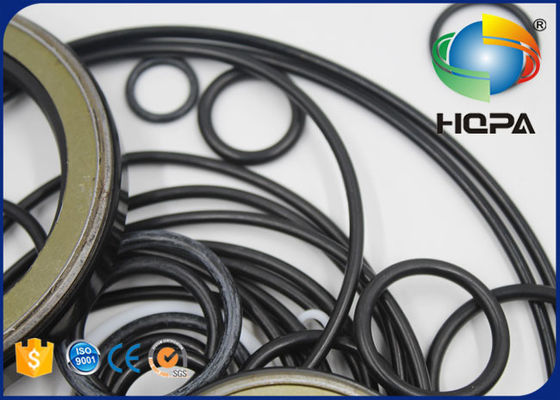

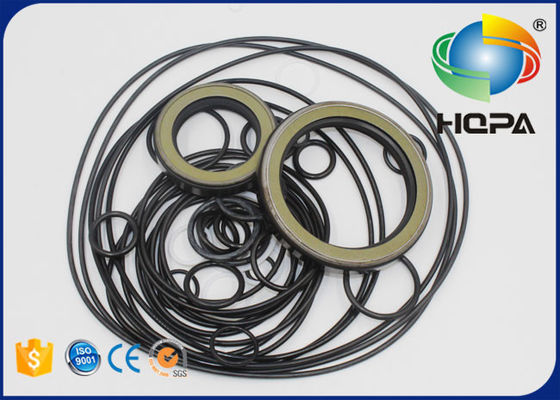

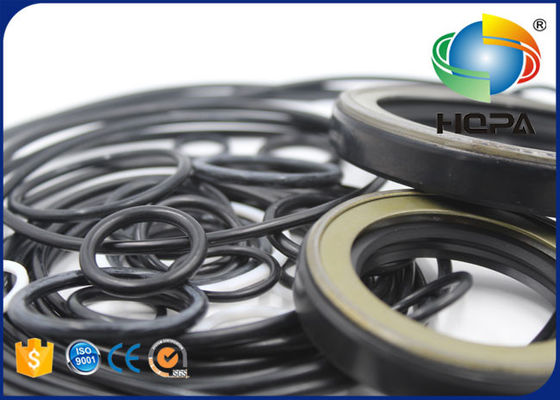

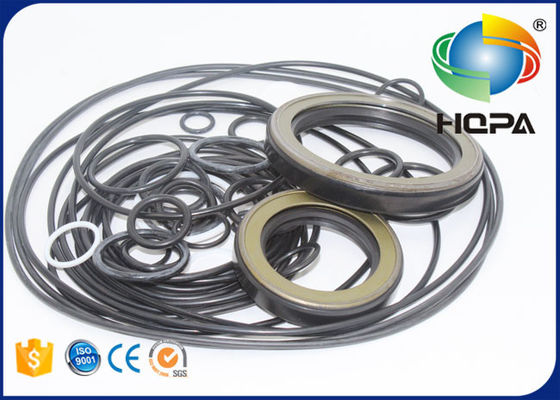

| Product: | 708-27-04013KT 708-27-04013 Hydraulic Main Pump Seal Kit | Part Number: | 708-27-04013KT 708-27-04013 7082704013KT 7082704013 Hydraulic Pump Assy |
|---|---|---|---|
| Fit For Model: | Komatsu PC300LC-5LC PC300LC-5 PC310-5 PC300NLC-5K | Group: | Hydraulic Main Pump Seal Kit / Pump Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | PC300-5 Main Pump Seal Kit,708-27-04013 Main Pump Seal Kit,708-27-04013KT |
||
|
The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.
Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 708-27-04013KT 708-27-04013 Hydraulic Main Pump Seal Kit for Komatsu PC300-5 |
| Product style | Hydraulic Main Pump Seal Kit / Main Pump Seal Kit |
| Part No. | 708-27-04013KT 708-27-04013 7082704013KT 7082704013 Hydraulic Pump Assy |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Komatsu PC310-5 PC300NLC-5K PC300LC-5K PC300HD-5K PC300-5K PC300LC-5LC PC300LC-5 PC300-5C PC300-5 PC300 PC300LC PC310LC-5 |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
|
Part Number: 708-27-04013KT 708-27-04013 |
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 708-27-04012 | HYDRAULIC PUMP ASS'Y | 708-27-04012 | HYDRAULIC PUMP ASS'Y |
| 708-27-04011 | HYDRAULIC PUMP ASS'Y | 708-27-04113 | PUMP ASS'Y |
| 708-27-04112 | PUMP ASS'Y | 708-27-04111 | PUMP ASS'Y |
| 704-23-30601 | PUMP ASS'Y | 708-27-04311 | RELIEF VALVE ASS'Y |
| 708-27-04310 | RELIEF VALVE ASS'Y | 07000-02075 | O-RING |
| 07000-02020 | O-RING | 01011-51010 | BOLT |
| 01602-01030 | WASHER,SPRING | 708-27-08111 | SERVO VALVE ASS'Y,FRONT |
| 708-27-08211 | SERVO VALVE ASS'Y,REAR | 04020-00616 | PIN,DOWEL |
| 708-25-19130 | BOLT | 01602-00825 | WASHER,SPRING |
| 07102-20203 | HOSE | 07235-10210 | ELBOW |
| 07232-20210 | ELBOW | 07239-11408 | NUT |
| 07002-01423 | O-RING | 708-27-14210 | ELBOW |
| 07000-02021 | O-RING | 720-68-15240 | FILTER |
| 01010-50855 | BOLT | 01643-30823 | WASHER |
| 07102-20505 | HOSE | 207-62-33710 | TEE |
| 07040-11409 | PLUG | 07002-02434 | O-RING |
| 207-62-31770 | TEE | 20B-27-11210 | BLEEDER |
| 708-25-17460 | PLUG | 07000-02010 | O-RING |
| 708-25-17131 | COVER | 01580-10806 | NUT |
| 708-25-17141 | SPOOL | 708-25-17150 | SLEEVE |
| 708-25-17160 | PISTON | 708-25-17170 | COVER |
| 07000-02014 | O-RING | 708-25-17180 | SEAT |
| 708-25-17690 | SPRING | 708-25-17451 | SLEEVE |
| 07000-02012 | O-RING | 708-25-17220 | PISTON |
| 07000-12012 | O-RING | 07001-02012 | RING,BACK-UP |
| 708-25-17370 | SEAT | 708-25-17250 | SPRING |
| 708-25-17260 | SEAT | 708-23-17240 | COVER |
| 708-25-17380 | PLUG | 07000-02021 | O-RING |
| 708-23-17270 | PISTON | 708-25-15320 | BOLT |
| 01602-20619 | WASHER,SPRING | 07000-12021 | O-RING |
| 07001-02021 | RING,BACK-UP | 708-25-17430 | SCREW |
| 708-25-15340 | SCREW | 708-23-17290 | COVER |
| 07000-03028 | O-RING | 706-75-40310 | BOLT |
| 708-25-15120 | PISTON | 708-25-15130 | SEAT |
| 708-27-25150 | SPRING | 708-23-15120 | SEAT |
| 708-27-25140 | SPRING | 708-23-15160 | PLUG |
| 07000-02018 | O-RING | 708-25-15150 | COVER |
| 01580-10806 | NUT | 708-25-15320 | BOLT |
| 01602-20619 | WASHER,SPRING | 708-25-15171 | PLUG |
| 07002-02034 | O-RING | 07239-12009 | NUT |
| 07040-11007 | PLUG | 07002-01023 | O-RING |
| 708-25-15180 | SLEEVE | 708-25-15280 | SPOOL |
| 708-25-15310 | SPRING | 708-25-15330 | SPACER |
| 708-25-15430 | PLUG | 07000-02012 | O-RING |
| 708-25-15250 | COVER | 708-25-15260 | PLUG |
| 07002-00823 | O-RING | 708-67-16260 | ARM |
| 708-25-15360 | PIN | 708-25-15370 | WASHER |
| 708-25-15380 | E-RING | 708-25-15340 | SCREW |
| 704-28-30250 | BODY | 704-27-00620 | BUSHING |
| 704-28-00751 | STRAINER | 07040-13316 | PLUG |
| 07002-03334 | O-RING | 704-28-30650 | GEAR,DRIVE |
| 704-28-30750 | GEAR,DRIVEN | 04020-00820 | PIN,COTTER |
| 704-28-00430 | HOUSING | 01252-31030 | BOLT |
| 01643-51032 | WASHER | 704-28-00770 | COLLAR |
| 708-23-14810 | SLEEVE | 708-23-14930 | VALVE |
| 708-23-14820 | RING,SNAP | 708-23-14980 | SPRING |
| 708-23-14950 | PISTON | 708-23-14860 | SCREW |
| 07000-02010 | O-RING | 706-73-75350 | NUT |
| 700-22-11410 | O-RING | 07002-02434 | O-RING |
| 708-27-05010 | SHIM KIT | 708-2H-12140 | SEAL,OIL |
| 708-27-12770 | HOUSING | 07000-02105 | O-RING |
| 01010-50820 | BOLT | 01643-30823 | WASHER |
| 708-27-14430 | SHAFT | 708-27-14470 | COLLAR |
| 708-27-14420 | GEAR | 708-18-12860 | PLATE |
| 708-27-14490 | BOLT | 708-27-14440 | COUPLING |
| 708-27-14450 | PIN | 04065-07225 | RING,SNAP |
| 06030-06207 | BEARING,ROLLER | 708-27-14480 | COLLAR |
| 06030-06307 | BEARING,ROLLER | 07000-03035 | O-RING |
| 708-25-52860 | SEAL,OIL | 708-27-14460 | HOUSING |
| 07000-02085 | O-RING | 04000-01020 | KEY |
| 04530-11628 | BOLT,EYE | 708-27-00420 | END CAP ASS'Y,REAR |
| 720-68-19530 | PLUG | 07002-11823 | O-RING |
| 708-27-12540 | O-RING | 04020-01024 | PIN,DOWEL |
| 708-27-12530 | O-RING | 07000-12012 | O-RING |
| 708-2E-11790 | O-RING | 07000-03025 | O-RING |
| 708-25-12330 | JOINT | 07000-12015 | O-RING |
| 708-25-13930 | O-RING | 708-18-13230 | PIN |
| 708-27-12550 | BOLT | 708-27-12560 | BOLT |
| 01141-82040 | STUD | 708-27-12570 | NUT |
| 01643-32060 | WASHER | 708-27-13630 | RING |
| 708-27-08311 | SERVO VALVE SUB A. | 708-27-08511 | VALVE ASS'Y,CO AND NC |
| 708-27-08711 | VALVE ASS'Y | 07000-02011 | O-RING |
5. Related models:
| PC310-5 | PC300NLC-5K | PC300LC-5K | PC300HD-5K | PC300-5K |
| PC300LC-5LC | PC300LC-5 | PC300-5C | PC300-5 | PC300 |
| PC300LC | PC310LC-5 | D20P-5A | PC40FR-1 | PC27MR-1 |
| PC400-8R | D61E-12 | D65E-12 | PC28UG-2 | PC1100LC-6 |
| PC100-1 | PW160-7K | D70-LE | D61EX-12A | PC1800-6 |
| D65EX-15 | PC400-6 | PC300LC-6LE | PC100L-6 | PC210-6D |
| PC27R-8 | PC200LC-5 | PC10MR-1-A | PC228US-3-YB | PC40MRX-1 |
| PC210-6-A1 | PC350LC-6 | PC35MR-1 | PC78UU-8 | PC1600-1 |
| PC100-6Z | PC240LC-10 | PC600-6A-KJ | PC78MR-6 | PC45MR-3 |
| PC400LC | D155AX-3 | DNP031-3C | PC450-7E0 | PC290-8 |
| PC300LL-7L | D85A-21A | PC14R-2 | PC02-1A | PC200-8M0 |
