Product Details:
Payment & Shipping Terms:
|

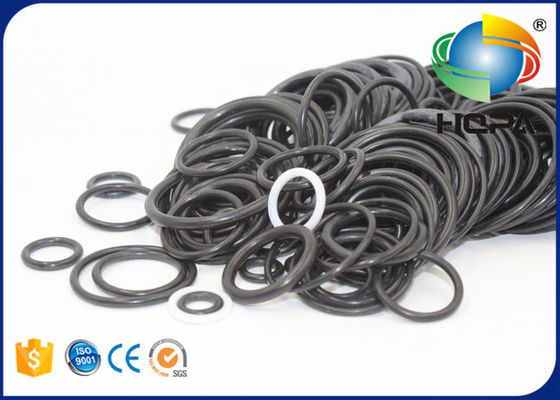

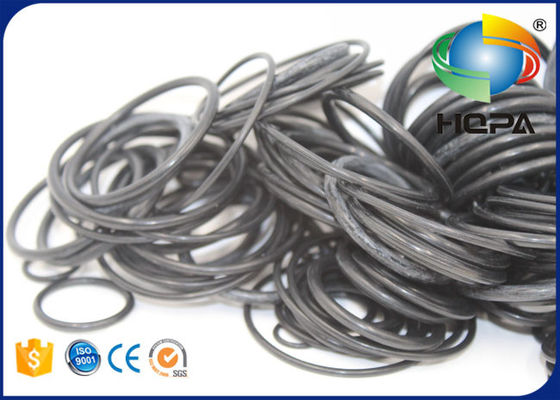

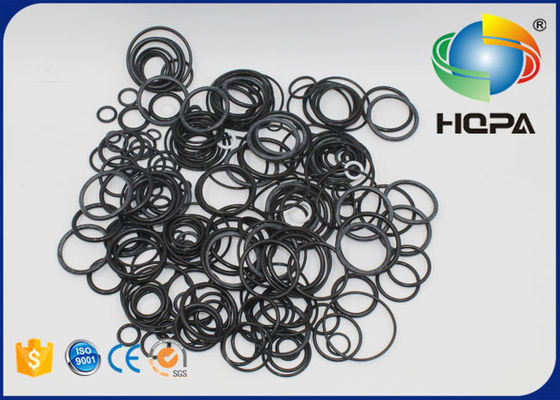

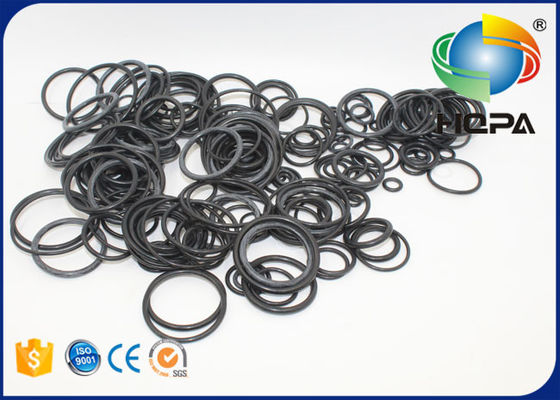

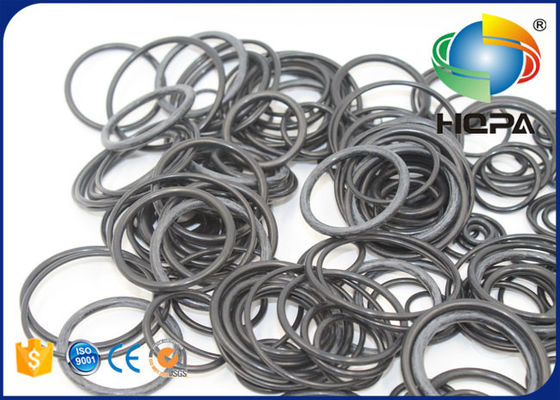

| Product: | 723-48-20403 723-48-20401 723-48-20400 Main Control Valve Seal Kit | Part Number: | 723-48-20403KT 723-48-20401KT 723-48-20400KT 723-48-20403 723-48-20401 723-48-20400 7234820403KT 7234820401KT 7234820400KT 7234820403 7234820401 7234820400 Hydraulic Main Control Valve Assy |
|---|---|---|---|
| Fit For Model: | Komatsu PC200-7 PC200LC-7 | Group: | Main Control Valve Seal Kit / Control Valve Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | PC200-7 Control Valve Seal Kit,723-48-20400,723-48-20401 |
||
|
The travel motor provides the power that the final drive transforms into torque. Then torque is transferred to the sprocket, which turns the wheel or track. |
2.General Product Information:
|
Brand Name |
HQPA/OEM |
|
Product Name |
723-48-20403 723-48-20401 723-48-20400 Main Control Valve Seal Kit for Komatsu PC200-7 |
|
Product style |
Main Control Valve Seal Kit / Control Valve Seal Kit |
|
Part No. |
723-48-20403KT 723-48-20401KT 723-48-20400KT 723-48-20403 723-48-20401 723-48-20400 7234820403KT 7234820401KT 7234820400KT 7234820403 7234820401 7234820400 Hydraulic Main Control Valve Assy |
|
Related parts: |
Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
|
Appliion |
Komatsu PC200-7 PC200LC-7 |
|
MOQ |
1 PC |
|
Condition |
100% New |
|
Package |
Inner-Plastic Bag; Outer -Standard Carton Box. |
|
Payment |
Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
|
Departure ports |
Huangpu(Guangzhou), China (Mainland) |
|
Delivery time |
3-5 days after payment received(public holiday excluded) |
|
Place of origin |
China (Mainland) |
|
Appliion |
Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
|
Part Number: 723-48-20403 723-48-20401 723-48-20400 |
4.Related spare parts:
| Part No | Parts name | Part No | Parts name |
| 723-48-20403 | VALVE ASS'Y | 723-48-20401 | VALVE ASS'Y |
| 723-48-20400 | VALVE ASS'Y | 07049-01012 | PLUG |
| 07049-01215 | PLUG | 22U-62-22480 | ELBOW |
| 201-60-11390 | O-RING | 20Y-62-19560 | O-RING |
| 20Y-62-41820 | NIPPLE | 11Y-62-12160 | ELBOW |
| 02896-11008 | O-RING | 02782-10311 | ELBOW |
| 02896-11009 | O-RING | 11Y-62-12330 | ELBOW |
| 11Y-62-12130 | NIPPLE | 11Y-62-12520 | NIPPLE |
| 07002-11423 | O-RING | 20Y-62-22160 | ADAPTER |
| 20F-61-12460 | ELBOW | 20Y-62-41602 | VALVE ASS'Y |
| 20Y-62-41601 | VALVE ASS'Y | BODY | |
| 20Y-60-22270 | POPPET | 20Y-62-41971 | NIPPLE |
| 20Y-62-41970 | NIPPLE | 701-20-61230 | SPRING |
| 723-46-15630 | PLUG | 07000-13024 | O-RING |
| 723-46-18600 | CHN SUB ASS'Y | 723-46-15111 | CHN |
| 07430-71380 | O-RING | 702-16-53920 | O-RING |
| 01252-60820 | BOLT | 723-46-17350 | BOLT |
| 723-40-56900 | VALVE ASS'Y,UNLOAD | 723-40-56302 | VALVE ASS'Y,UNLOAD |
| 07000-12014 | O-RING | 723-40-56350 | RING |
| 07000-12016 | O-RING | 723-60-22230 | RING,BACK-UP |
| 07002-12434 | O-RING | 723-46-15130 | PLUG |
| 723-46-15140 | PLUG | 07002-10823 | O-RING |
| 708-7T-16460 | BALL | 723-46-15120 | RETAINER |
| 723-46-15690 | RETAINER | 723-46-14110 | SPRING |
| 723-46-14270 | SPRING | 723-46-14131 | SPRING |
| 07002-11423 | O-RING | 723-40-66601 | VALVE ASS'Y |
| 01252-61045 | BOLT | 01252-61050 | BOLT |
| 01643-51032 | WASHER | 723-40-60101 | VALVE ASS'Y |
| 07000-12020 | O-RING | 07001-02020 | RING,BACK-UP |
| 709-25-11390 | O-RING | 07000-11009 | O-RING |
| 07001-01009 | RING,BACK-UP | 07000-11007 | O-RING |
| 07001-01007 | RING,BACK-UP | 723-40-91500 | VALVE ASS'Y,RELIEF |
| 700-80-64220 | RING | 700-22-11410 | O-RING |
| 709-25-11390 | O-RING | 709-25-11390 | O-RING |
| 723-90-61600 | VALVE ASS'Y,SUCTION AND SAFETY | 07000-13024 | O-RING |
| 07430-71380 | O-RING | 01252-60820 | BOLT |
| 723-40-71440 | SPRING | 709-74-91860 | PLUG |
| 07002-12434 | O-RING | 723-40-71390 | SPRING |
| 723-40-61150 | PLUG | 723-40-71800 | VALVE ASS'Y |
| 702-16-53920 | O-RING | 07002-11623 | O-RING |
| 723-48-20403 | VALVE ASS'Y | 723-48-20401 | VALVE ASS'Y |
| 723-48-20400 | VALVE ASS'Y | THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.Y1664-01A0 TO Y1664-21A0. | |
| 723-40-71103 | VALVE ASS'Y | 723-40-71102 | VALVE ASS'Y |
| 723-40-71430 | VALVE | 702-21-55460 | SPRING |
| 702-21-55420 | O-RING | 702-21-55520 | O-RING |
| 702-21-55440 | O-RING | 702-21-53120 | FILTER |
| 07000-12011 | O-RING | 702-21-55620 | PLUG |
| 07002-11423 | O-RING | 702-21-55710 | SEAT |
| 702-21-55720 | SPRING | 04260-00793 | BALL |
| 07000-11009 | O-RING | 708-8H-11530 | PLUG |
| 01252-61040 | BOLT | 01643-51032 | WASHER |
| 708-8E-16160 | PLUG | 07002-11023 | O-RING |
| 723-40-87170 | O-RING | 07000-13035 | O-RING |
| 07000-11007 | O-RING | 07002-13334 | O-RING |
| 723-40-84420 | VALVE,CHECK | 709-25-11650 | VALVE,CHECK |
| 723-40-84430 | SPRING | 709-25-11361 | SPRING |
| 723-40-84440 | PLUG | 723-40-82161 | PLUG |
| 07000-13024 | O-RING | 07002-11823 | O-RING |
| 07000-12011 | O-RING | 07001-02011 | RING |
| 07000-11010 | O-RING | 07001-01010 | RING |
| 723-11-18190 | PLUG | 07002-11023 | O-RING |
| 07002-10823 | O-RING | 708-7T-16460 | BALL |
| 723-46-15120 | RETAINER | 723-46-14110 | SPRING |
| 723-46-15111 | CHN | 07430-71380 | O-RING |
| 01252-60820 | BOLT | 07000-11009 | O-RING |
| 07000-12021 | O-RING | 723-11-19130 | O-RING |
| 07000-13032 | O-RING | 723-46-17510 | O-RING |
| 723-46-17520 | RING,BACK-UP | 723-46-17530 | O-RING |
| 700-93-11320 | O-RING | 723-46-41950 | RING |
| 07002-13634 | O-RING | 07002-10823 | O-RING |
| 708-7T-16460 | BALL | 723-46-15120 | RETAINER |
| 723-46-14110 | SPRING | 723-46-15111 | CHN |
| 07430-71380 | O-RING | 01252-60820 | BOLT |
| 07000-11009 | O-RING | 07000-12021 | O-RING |
| 723-11-19130 | O-RING | 07000-13032 | O-RING |
| 723-46-17510 | O-RING | 723-46-17520 | RING,BACK-UP |
| 723-46-17530 | O-RING | 07000-13024 | O-RING |
| 700-93-11320 | O-RING | 723-46-41950 | RING |
| 07002-13634 | O-RING | 709-25-11390 | O-RING |
| 723-90-76101 | VALVE ASS'Y,SUCTION AND SAFETY | 07000-13024 | O-RING |
| 07000-13024 | O-RING | 07000-12012 | O-RING |
| 723-11-19130 | O-RING | 723-46-17520 | RING,BACK-UP |
| 07000-12021 | O-RING | 07000-13028 | O-RING |
| 07000-13032 | O-RING | 07000-13038 | O-RING |
| 07000-11010 | O-RING | 723-46-17510 | O-RING |
| 723-46-17530 | O-RING | 723-11-18150 | O-RING |
| 07000-13036 | O-RING | 702-16-53920 | O-RING |
5. Related models:
| D20Q-7 | D41PF-6K | PC1250SP-8 | PC300NLC-5K | D51EX-22 |
| PC40T-7 | PC400LC-7L | PC380UU-2 | PC300LC-7 | PC27MR-2 |
| PC15FR | PC20-6 | D65PX-15E0 | PC350-6 | PC55MR-3 |
| PC130-6 | PC350LL-7E0 | PC300HD-7L | D21P-6B | PC350LC-6Z |
| PC15MRX | PC50FR-1 | PW30T-1 | PC200-5C | PC230LC-6 |
| PC138US-8 | D65EX-15E0 | PC600-8E0 | PC1250SP-8R | D40A-3 |
| PC95R-2 | PC650-3 | PC40-6 | D60PL-8 | PC45MRX-1 |
| PC270LC-8 | PC30R-7 | D20P-3 | PC600-6 | PC310LC-5 |
| PC50UD-2 | PC8000-1 | D85E-SS-2 | PC200LC-6S | PC100-6Z |
| PC450LC-8 | PC600LC-8E0 | PC210MH-7 | D20PLL-6 | PC18MR-3 |
| D275A-5 | PC650SE-3 | DDM020-5 | D61EX-12A | PC70-7E-B |
| PC300HD-8 | PC100L-2 | D575A-2 | PC340LC-7K-E0 | PC240-5K |
| PC290NLC-10 | PC210LC-6LC | PC250LC-6LC | PC120-6H | PC75UD-3 |
| PC228US-3-AB | PC1250SE-7 | D38E-1 | PC200LC-6H | PC450-7 |
| D21PG-7A | PC200-5T | PC70-6 | PC75UU-1 | PW160-7K |
| D475A-5E0 | D275A-2 | PC228US-3 | PC450LC-6K | PC300-3 |
| PW160-7 | PC28UD-2 | PC15-2 | PC60L-5 | D31E-20 |
| PC150LC-3 | PC160LC-7 | PC120-6J | PC158USLC-2 | PW200-1 |
