Part No.: | S6D125E-2D WA470-3 | Material: | Metal |
---|---|---|---|
Color: | Black | Engine No.: | S6D125E-2D |
Appliion: | Excavators | Special Features: | It Forms A Tight Seal For The Combustion Chamber |
Item Type: | Cylinder Head | Vehicle: | WA470-3 |
High Light: | engine parts assembly,engine assembly parts |

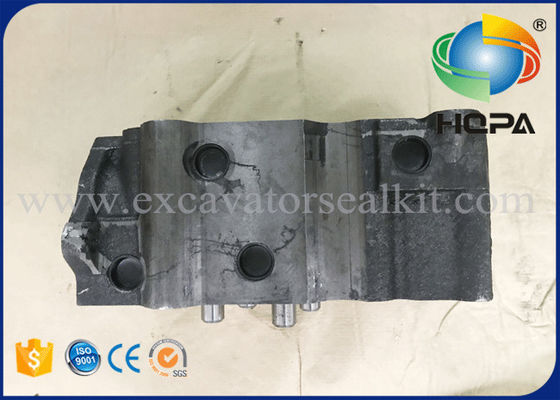

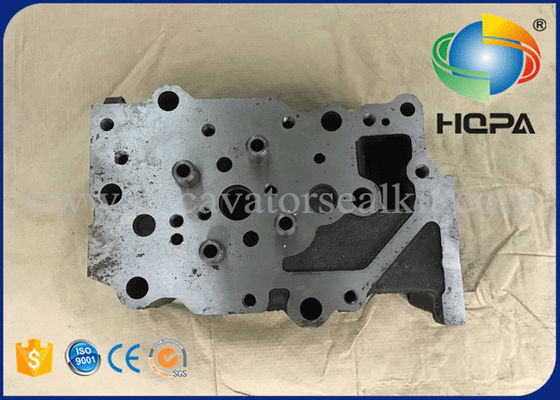

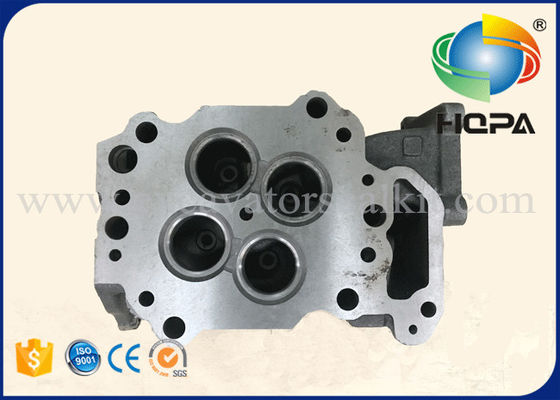

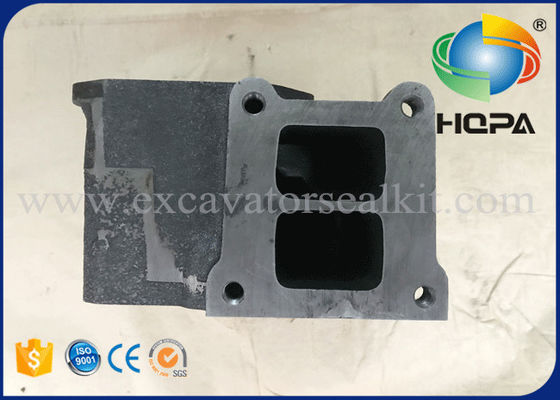

6151-12-1101 Komatsu Excavators Engine Cylinder Head Fits S6D125E-2D WA470-3
Product Name | 6151-12-1101 Komatsu Excavators Engine Cylinder Head Fits S6D125E-2D WA470-3 | ||||||||
Part No. | S6D125E-2D WA470-3 | ||||||||
Material | Metal | ||||||||
Feature | It forms a tight seal for the combustion chamber | ||||||||
egory Group | Excavator Engine Parts | ||||||||
Color | Black | ||||||||
Size | Standard | ||||||||
MOQ | 1PC | ||||||||
Packing | Carton Box, Wooden CHN | ||||||||
Delivery Time | 3-5 days after payment received(public holiday excluded) | ||||||||
Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. | ||||||||
Port | HUAGNPU,China (Mainland) | ||||||||
Shipping | By airplane, ship | ||||||||
Express | Fedex,TNT,UPS,DHL | ||||||||
Customized | OEM & ODM are welcomed | ||||||||
Appliion | WA470-3 | ||||||||
Condition | New | ||||||||
Product:
NO. | PART NUMBER | NAME | QTY | OPTION |
6151-12-1101 | CYLINDER HEAD ASS'Y,VALVE LESS | 6 | SN: 67992-UP | |
1 | 6136-11-1130 | • HEAD,CYLINDER | 1 | SN: 61779-UP |
2 | 6150-11-1320 | • SLEEVE | 1 | SN: 61779-UP |
3 | 6150-19-1320 | • INSERT,EXHAUST VALVE (STD) | 2 | SN: 61779-UP |
4 | 6151-19-1330 | • INSERT,INTAKE VALVE (STD) | 2 | SN: 67992-UP |
5 | 07043-70108 | • GUIDE,VALVE (FOR SERVICE PARTS) | 4 | SN: 61779-UP |
6 | 6162-13-1150 | • PLUG | 1 | SN: 61779-UP |
7 | 6150-11-1140 | • PLUG | 10 | SN: 61779-UP |
8 | 04020-00820 | • GUIDE | 2 | SN: 61779-UP |
9 | 07046-41810 | • PIN,DOWEL | 2 | SN: 61779-UP |
10 | 6150-42-4110 | • PLUG | 1 | SN: 61779-UP |
11 | 6150-42-4210 | VALVE,INTAKE | 12 | SN: 61779-UP |
12 | 6150-41-4510 | VALVE,EXHAUST | 12 | SN: 61779-UP |
13 | 6150-41-4430 | SEAT,UPPER | 24 | SN: 61779-UP |
14 | 6136-42-4520 | SEAT,LOWER | 24 | SN: 61779-UP |
15 | 6150-41-4450 | COTTER,VALVE | 48 | SN: 61779-UP |
16 | 6150-41-4570 | SPRING | 24 | SN: 61779-UP |
17 | 6150-42-5610 | CROSSHEAD ASS'Y | 12 | SN: 61779-UP |
18 | 6150-41-5621 | • CROSSHEAD | 1 | SN: 61779-UP |
19 | 6150-41-5620 | • SCREW | 1 | SN: 85897-UP |
20 | 6150-41-5630 | • SCREW | 1 | SN: 61779-85896 |
21 | 6150-12-1810 | STANDARD | ||
22 | 6150-11-1930 | • GROMMET,OIL | 1 | SN: 61779-UP |
24 | 6150-12-1960 | • GROMMET,WATER | 4 | SN: 61779-UP |
21 | 6150-19-1920 | GASKET, 0.4MM OS,HEAD | 6 | SN: 61779-UP |
22 | 6150-19-1930 | • GROMMET,OIL | 1 | SN: 61779-UP |
24 | 6150-19-1960 | • GROMMET,WATER | 4 | SN: 61779-UP |
25 | 6150-11-1610 | • GROMMET,WATER | 1 | SN: 61779-UP |
