Product Details:
Payment & Shipping Terms:
|
Material: | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ | Part No.: | VOE11990347 |
---|---|---|---|
MOQ:: | Trial Order Accepted | Type:: | Seal Kit |
Color: | Black,white Or Other | Style: | Hydraulic,Mechanical Seal,repair Kits,Engineer Seal Kit |
Appliion: | Hydraulic Cylinder,Excavator | Feature: | Oil Resistance / Abrasion Resistant / Corrosion Resistance,High Chemical Resistance,Sealing Performance,Wear-resistant |
Advantage: | Long Service Life And Low Price,Competitive Price And Quality,OEM Product | Model Number: | L150C L150D |
Highlight: | bucket cylinder seal kit,track adjuster seal replacement |

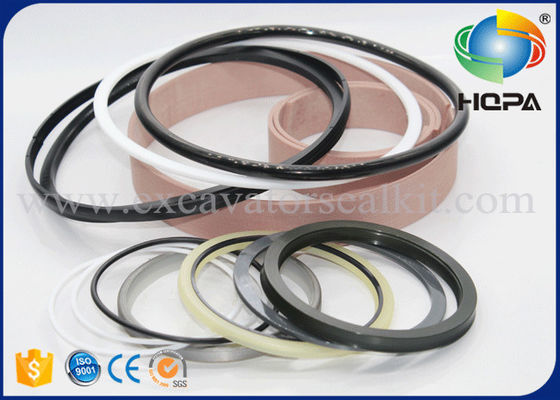

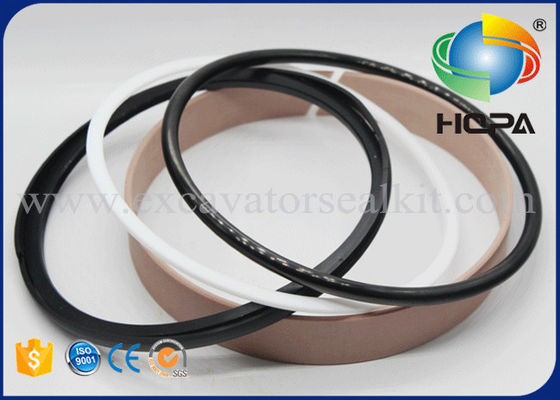

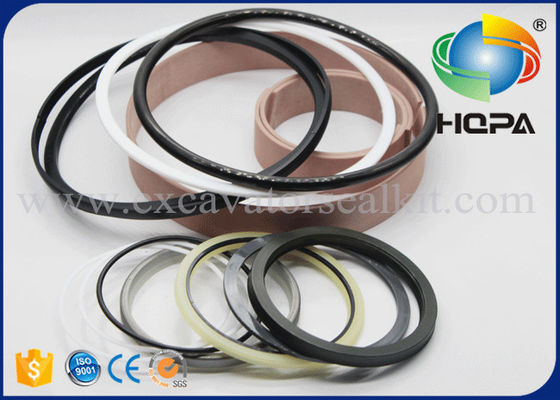

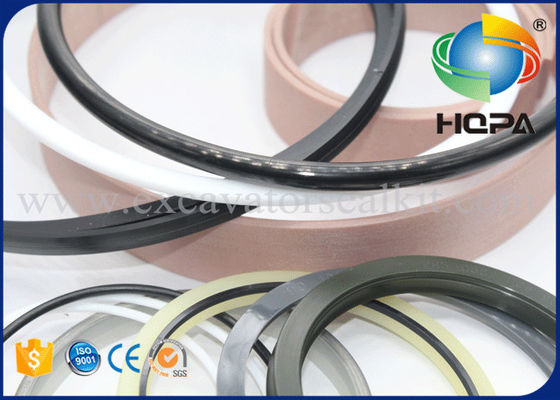

Product Name | VOE11990347 Steering Cylinder Seal Kit Fits VOLVO Wheel Loader L150C L150D |
Part No. | VOE11990347 L150C L150D |
Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
Feature | Resistance to high pressure, oil, weather, abrasion, solvent,and so on |
Hardness | 70-90 Shore A |
Color | Black,White or other |
Size | Standard Size |
MOQ | We accept trial order |
Packing | PP bag inside, carton box outside |
Delivery Time | 3-5 days after payment received(public holiday excluded) |
Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
Port | HUAGNPU,China (Mainland) |
Shipping | By airplane, ship |
Express | Fedex,TNT,UPS,DHL |
Customized | OEM & ODM are welcomed |
Appliion | Excavator&Hydraulic Systerm |
Condition | New |
RELATION PARTS:
NO. | NUMBER | NAME | QTY1 | QTY2 |
VOE11005294 | Hydraulic Cylinder | 1 | ||
VOE11088296 | Hydraulic Cylinder | 1 | ||
1 | VOE11005295 | Cylinder Tube | 1 | 1 |
2 | VOE11088723 | Piston Rod | 1 | 1 |
3 | VOE13960175 | O-ring | 1 | 1 |
4 | VOE4784427 | Piston | 1 | 1 |
5 | VOE4833024 | Piston Seal | 1 | 1 |
6 | VOE4782719 | Spring Pin | 1 | 1 |
7 | VOE4784426 | Piston Rod Guide | 1 | |
VOE11088505 | Piston Rod Guide | 1 | ||
8 | VOE13925095 | O-ring | 1 | 1 |
9 | VOE4880854 | Back-up Ring | 1 | 1 |
9A | VOE11088052 | Bushing | 2 | |
10 | VOE4784045 | Piston Rod Seal | 1 | 1 |
11 | VOE11005053 | Scraper Ring | 1 | 1 |
12 | VOE4782857 | Bolt | 8 | 8 |
13 | VOE941908 | Spring Washer | 8 | 8 |
14 | VOE484062 | Bearing | 1 | 1 |
15 | VOE914538 | Snap Ring | 2 | 2 |
VOE11990347 | Seal Kit | 1 | 1 |
Hydraulic Seal installation requirements:
1. the hydraulic sealing gaskets and flange sealing surface should be clean
2. hydraulic sealing gasket diameter should be smaller than flange seal face outside and inside diameter should be slightly bigger than a pipe inside diameter
3. Sealing gasket pre-tightening force should not exceed the design rules
4. sealing asbestos gasket compression, it is best to use the torque wrench
5. Installing a sealing gasket, should be in order, in turn, tighten the nut
6. if there is any leakage, must be installed after antihypertensive treatment to replace or adjust the sealing gasket
Welcom to contact us,we can provide the high quality and best price!
