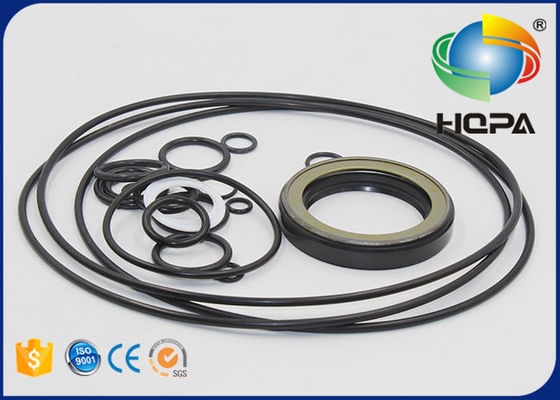

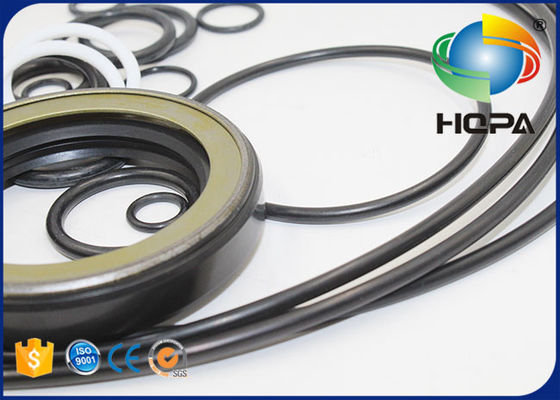

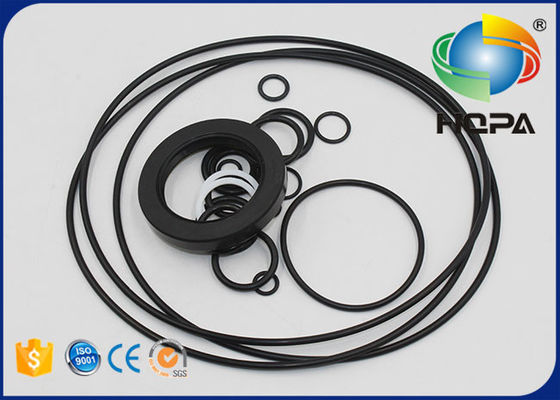

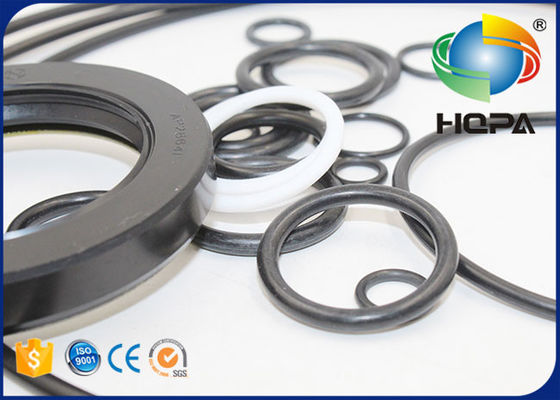

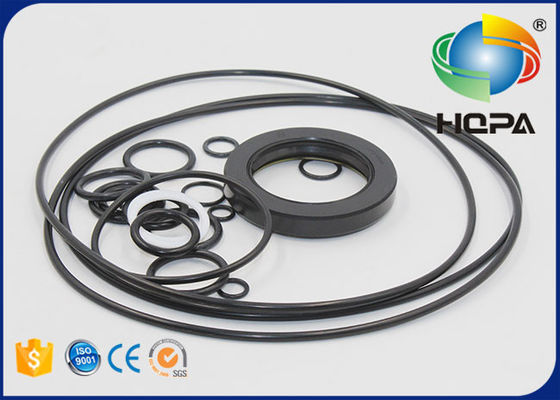

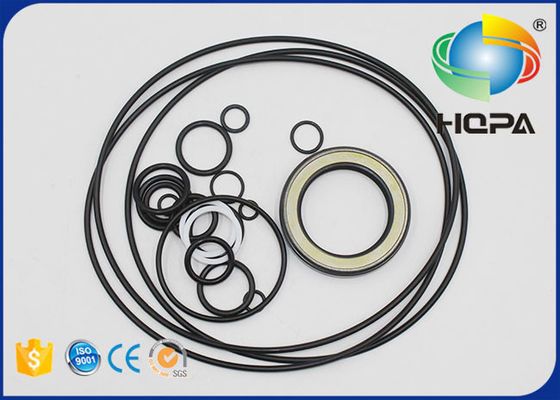

| Product: | 31Q6-10131 31Q610131 Swing Motor Seal Kit | Part Number: | 31Q6-10131 31Q610131 Swing Motor Assy |
|---|---|---|---|
| Fit For Model: | Hyundai R210NLC-9 R220LC-9S R220NLC-9A | Group: | Swing Motor Seal Kit / Hydraulic Motor Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | 31Q610131,R210NLC-9 Swing Motor Seal Kit,R220NLC-9A Swing Motor Seal Kit |
||
|
Swing motors are hydraulic motors that form the proper turning force of excavator booms using oil pressure, shift rotation either to the right or left and convey or cut off turning power. Swing motor seal kits maintain the power of the swing motor. If the swing motor leaks oil, the boom cylinder will be powerless. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 31Q6-10131 31Q610131 Swing Motor Seal Kit for Hyundai R210NLC-9 R220LC-9S R220NLC-9A |
| Product style | Swing Motor Seal Kit / Motor Seal Kit |
| Part No. | 31Q6-10131 31Q610131 |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Hyundai R210LC-9 R210NLC-9 R210W-9 R220LC-9(INDIA) R220LC-9A R220LC-9S R220LC-9S(BRAZIL) R220LC-9SH R220NLC-9A |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
|
Part Number: 31Q6-10131 31Q610131 . |
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 31Q6-10131 | SWING MOTOR UNIT | 31Q6-10131AR | SWING MOTOR UNIT |
| XKAY-00637 | BODY | XKAY-02096 | BODY |
| XKAY-00521 | SEAL-OIL | XKAY-00522 | BEARING-ROLLER |
| XKAY-00523 | RING-SNAP | XKAY-00524 | SHAFT |
| XKAY-00525 | BUSHING | XKAY-00526 | RING-STOP |
| XKAY-00625 | PIN | XKAY-00527 | PLATE-SHOE |
| XKAY-00635 | ROTARY KIT | XKAY-00634 | CYLINDER BLOCK KIT |
| XKAY-00633 | BLOCK-CYLINDER | XKAY-00531 | SPRING |
| XKAY-00544 | PLATE-VALVE | XKAY-00532 | RETAINER KIT |
| XKAY-00533 | GUIDE-BALL | XKAY-00534 | PLATE-SET |
| XKAY-00535 | PISTON KIT | XKAY-00536 | PISTON ASSY |
| XKAY-00537 | PLATE-FRICTION | XKAY-00538 | PLATE |
| XKAY-00632 | PISTON-BRAKE | XKAY-00468 | O-RING |
| XKAY-00540 | O-RING | XKAY-00541 | SPRING |
| XKAY-00630 | COVER-REAR | XKAY-00543 | BEARING-NEEDLE |
| XKAY-00382 | PIN | XKAY-00546 | BOLT-WRENCH |
| XKAY-00309 | PLUG | XKAY-00141 | RING-BACK UP |
| XKAY-00310 | O-RING | XKAY-00311 | SPRING |
| XKAY-00312 | CHECK | XKAY-00976 | RELIEF VALVE ASSY |
| XKAY-00314 | VLV ASSY-REACTIONLESS | XKAY-01470 | VALVE ASSY-TIME DELAY |
| XKAY-00149 | BOLT-WRENCH | XKAY-00150 | PLUG |
| XKAY-00151 | O-RING | XKAY-00140 | PLUG |
| XKAY-00975 | PLUG | XKAY-00548 | PLUG |
| XKAY-01986 | GAUGE-LEVEL | XKAY-01988 | PLUG |
| XKAY-00322 | PLUG | XKAY-00324 | O-RING |
| XKAY-00247 | O-RING | XKAY-00605 | RING-BACK UP |
| XJBN-01127 | CHECK VALVE ASSY | XKAY-01517 | SEAL KIT |
| XKAQ-00771 | CASING | XKAQ-00962 | CASING |
| XKAQ-00403 | SHAFT-DRIVE | XKAQ-00780 | SHAFT-DRIVE |
| XKAQ-00018 | SPACER | XKAQ-00026 | BEARING-ROLLER |
| XKAQ-00032 | SEAL-OIL | XKAQ-00029 | BEARING-ROLLER |
| XKAQ-00961 | BEARING-ROLLER | XKAQ-00404 | PLATE-THRUST |
| XKAQ-00753 | CARRIER ASSY 2 | XKAQ-00075 | CARRIER 2 |
| XKAQ-00023 | GEAR-PLANET 2 | XKAQ-00643 | PIN ASSY 2 |
| XKAQ-00070 | PIN 2 | XKAQ-00291 | BUSHING 2 |
| XKAQ-00071 | WASHER-THRUST | XKAQ-00048 | PIN-SPRING |
| XKAQ-00755 | GEAR-SUN 2 | XKAQ-00754 | CARRIER ASSY 1 |
| XKAQ-00531 | CARRIER 1 | XKAQ-00025 | GEAR-PLANET 1 |
| XKAQ-00415 | PIN 1 | XKAQ-00030 | CAGE-NEEDLE |
| XKAQ-00057 | PLATE-SIDE 1 | XKAQ-00040 | PLATE-SIDE 2 |
| XKAQ-00041 | RING-STOP | XKAQ-00010 | GEAR-SUN 1 |
| XKAQ-00534 | PLATE-SIDE 3 | XKAQ-00529 | GEAR-RING |
| XKAQ-00779 | GEAR-RING | XKAQ-00977 | GEAR-PINION |
| XKAQ-00074 | RING-STOP | XKAQ-00072 | PIN-KNOCK |
| XKAQ-00065 | BOLT-SOCKET | XKAQ-00031 | PLATE-COVER |
| XKAQ-00064 | BOLT-HEX | XKAQ-00043 | PLATE-LOCK |
| XKAQ-00042 | BOLT-HEX | XKAQ-00292 | WASHER-LOCK |
| XKAQ-00049 | PLUG | XKAQ-00066 | PLUG |
| XJBN-00790 | SHAFT-DRIVE | XJBN-00789 | SHAFT-DRIVEN |
| XJBN-00788 | BEARING-ROLLER | XJBN-00787 | BEARING-ROLLER |
| XJBN-00786 | BEARING-NEEDLE | XJBN-00785 | SPACER-BEARING |
| XJBN-00081 | SPACER-BEARING | XJBN-00784 | SPACER-BEARING |
| XJBN-00569 | SPACER-BEARING | XJBN-00783 | CASING-FRONT |
| XJBN-00782 | GEAR-DRIVE | XJBN-00781 | GEAR-DRIVEN |
| XJBN-00778 | COVER-FRONT | XJBN-00777 | CASING-PUMP |
| XJBN-00355 | SCREW | XJBN-00695 | SCREW-HEX |
| XJBN-00238 | PLUG | XJBN-00032 | PLUG |
| XJBN-00772 | RESTRICTOR | XJBN-00767 | SEAT |
| XJBN-00766 | STOPPER 1 | XJBN-00765 | BALL-STEEL |
| XJBN-00387 | O-RING | XJBN-00044 | O-RING |
| XJBN-00231 | O-RING | XJBN-00046 | O-RING |
| XJBN-00280 | O-RING | XJBN-00764 | PACKING |
| XJBN-00762 | SEAL-OIL | XJBN-00759 | RING-SNAP |
| XJBN-00102 | RING-SNAP | XJBN-00508 | RING-SNAP |
| XJBN-00052 | RING-SNAP | XJBN-00489 | RING-SNAP |
| XJBN-00130 | RING-SNAP | XJBN-00758 | PIN-SPRING |
| XJBN-00712 | PIN | XJBN-00104 | BOLT-EYE |
