Product Details:
Payment & Shipping Terms:
|
| Model Number: | WB93R-5 WB142-5 WB91R-5 WB146-5 WB146PS-5 WB93S-5E0 | Material: | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
|---|---|---|---|
| Part No.: | 707-99-35590 7079935590 | MOQ:: | Trial Order Accepted |
| Type:: | Seal Kit | Color: | Black，white Or Other |
| Style: | Hydraulic,Mechanical Seal,repair Kits,Engineer Seal Kit | Appliion: | Hydraulic Cylinder,Excavator |
| Feature: | Oil Resistance / Abrasion Resistant / Corrosion Resistance,High Chemical Resistance,Sealing Performance,Wear-resistant | Advantage: | Long Service Life And Low Price,Competitive Price And Quality,OEM Product |
| High Light: | track adjuster seal replacement,bucket cylinder seal kit |
||

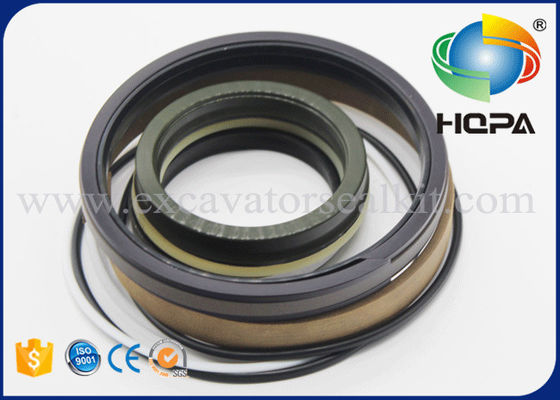

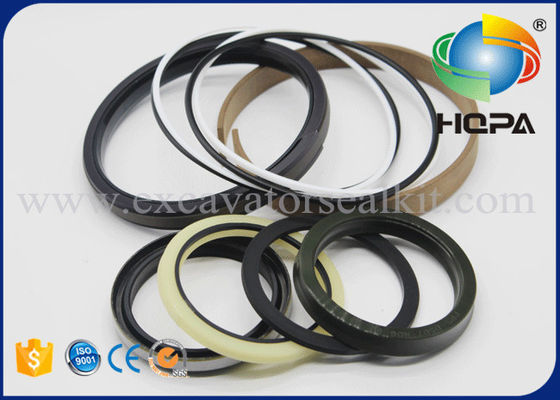

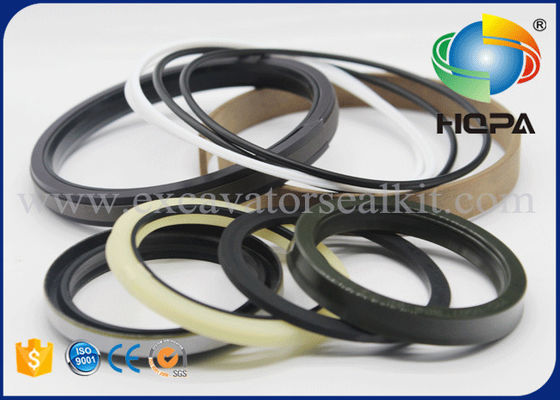

| Product Name | 707-99-35590 Komatsu Cylinder Seal Kit Fits Backhoe Loader WB93R-5 WB142-5 WB91R-5 |
| Part No. | 707-99-35590 7079935590 |
| Material | PU , Rubber , PTFE , NBR , HNBR , ACM , VMQ |
| Feature | Resistance to high pressure, oil, weather, abrasion, solvent,and so on |
| Hardness | 70-90 Shore A |
| Color | Black, White or other |
| Size | Standard Size |
| MOQ | We accept trial order |
| Packing | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Port | HUAGNPU,China (Mainland) |
| Shipping | By airplane, ship |
| Express | Fedex,TNT,UPS,DHL |
| Customized | OEM & ODM are welcomed |
| Appliion | Excavator&Hydraulic Systerm |
| Condition | New |
RELATION PARTS:
| NO. | PARTS NUMBER | NAME | QTY | OPTIONS |
| 707-00-0Y873 | CYLINDER, ASSEMBLY | 1 | SN: F50003-UP | |
| 1 | 707-76-50371 | • BUSHING | 1 | SN: F50003-UP |
| 2 | 707-58-60900 | • ROD, PISTON | 1 | SN: F50003-UP |
| 3 | 07179-12074 | • RING, BACK-UP | 1 | SN: F50003-UP |
| 4 | 707-29-11991 | • CYLINDER HEAD | 1 | SN: F50003-UP |
| 5 | 707-71-80660 | • SPACER | 1 | SN: F50003-UP |
| 6 | 707-36-11991 | • PISTON | 1 | SN: F50003-UP |
| 7 | 707-67-42010 | • NUT | 1 | SN: F50003-UP |
| 8 | 707-11-11C52 | • CYLINDER | 1 | SN: F50003-UP |
| 9 | 707-76-60170 | • BUSHING | 1 | SN: F50003-UP |
| 707-99-35590 | • KIT, GASKET | 1 | SN: F50003-UP | |
| 10 | 07145-00050 | •• SEAL, DUST | 2 | SN: F50003-UP |
| 11 | 141-63-93270 | •• GASKET | 1 | SN: F50003-UP |
| 12 | 07000-12115 | •• O-RING | 1 | SN: F50003-UP |
| 13 | 707-51-60030 | •• GASKET | 1 | SN: F50003-UP |
| 14 | 707-51-60640 | •• GASKET | 1 | SN: F50003-UP |
| 15 | 07000-12110 | •• O-RING | 1 | SN: F50003-UP |
| 16 | 707-35-91630 | •• RING, BACK-UP | 1 | SN: F50003-UP |
| 17 | 707-35-91610 | •• RING, BACK-UP | 2 | SN: F50003-UP |
| 18 | 07000-12110 | •• O-RING | 1 | SN: F50003-UP |
| 19 | 707-44-11280 | •• GASKET | 1 | SN: F50003-UP |
| 20 | 707-39-11520 | •• PACKING, ROD | 1 | SN: F50003-UP |
| 21 | 02896-11018 | •• O-RING | 2 | SN: F50003-UP |
Hydraulic Seal installation requirements:
1. the hydraulic sealing gaskets and flange sealing surface should be clean
2. hydraulic sealing gasket diameter should be smaller than flange seal face outside and inside diameter should be slightly bigger than a pipe inside diameter
3. Sealing gasket pre-tightening force should not exceed the design rules
4. sealing asbestos gasket compression, it is best to use the torque wrench
5. Installing a sealing gasket, should be in order, in turn, tighten the nut
6. if there is any leakage, must be installed after antihypertensive treatment to replace or adjust the sealing gasket
