Product Details:
Payment & Shipping Terms:
|
| Part No.: | HZZC-M2X170CHB 31Q8-10130 | Appliion: | Hyundai R290-3 R290-5 R290-7 R300-5 R300-7 R305-7 R305-9 R335-7 R335-9 |
|---|---|---|---|
| Conditions: | 100% New | Packing: | Wooden Box |
| Type: | Swing Motor And Hydraulic Parts | Terms Of Payment: | Western Union, T/T, Paypal Etc. |
| Place Of Original: | China | ||
| Highlight: | portable water pump,hydraulic gear pump |
||
Product Description

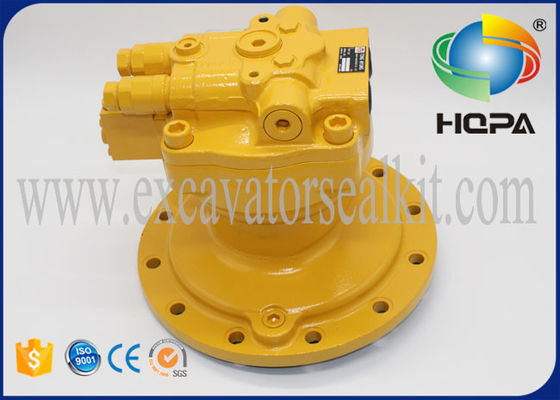

| Part Name | Swing Motor HZZC-M2X170CHB 31Q8-10130 for R290-7 R300-7 R305-7 R335-7 |
| Position | Track Frame/Swing Motor |
| Material | Stainless Steel |
| OEM | HZZC-M2X170CHB 31Q8-10130 |
| Type | Swing Motor |
| Appliion | Hyundai R290-3 R290-5 R290-7 R300-5 R300-7 R305-7 R305-9 R335-7 R335-9 |
| Color | HQPA/OEM |
| Feature | Standard size |
| Product egory | Hydraulic Parts |
| Packing Method | PP bag inside, carton box outside |
| Delivery Time | 3-5 days after payment received(public holiday excluded) |
| The Port of Loading | HUAGNPU,China (Mainland) |
| Transport Method | AIR / SEA / EXPRESS |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P |

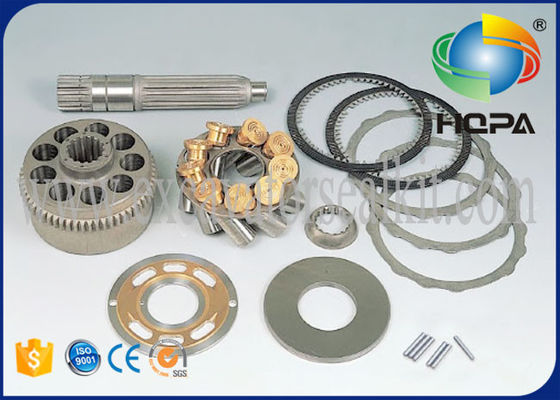

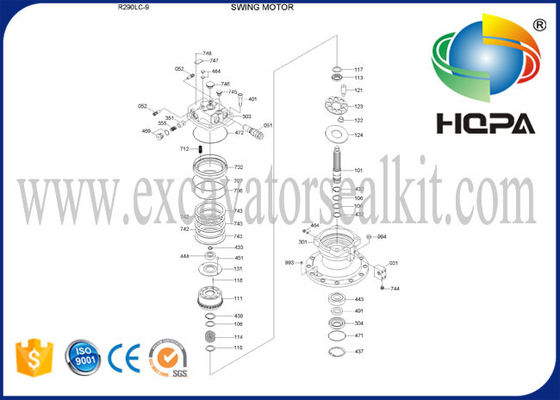

| Refereence. | Part No | Parts name |
| *. | 31Q8-10150 | SWING MOTOR ASSY |
| *. | 31Q8-10151 | SWING MOTOR ASSY |
| *-1. | 31Q8-10130 | SWING MOTOR UNIT |
| 101 | XKAH-01090 | SHAFT-DRIVE |
| 111 | XKAH-00160 | BLOCK-CYLINDER |
| 113 | XKAH-00159 | BUSHING-SPHERICAL |
| 113 | XKAH-01621 | BUSHING-SPHERICAL |
| 114 | XKAH-00158 | SPRING |
| 114 | XKAH-01484 | SPRING |
| 116 | XKAH-01079 | ROD-PUSH |
| 121 | XKAH-01162 | PISTON ASSY |
| 123 | XKAH-01081 | RETAINER |
| 124 | XKAH-00151 | PLATE-SHOE |
| 131 | XKAH-01082 | PLATE-VALVE |
| 131 | XKAH-01161 | PLATE-VALVE K1 |
| 301 | XKAH-01091 | CASING |
| 303 | XKAH-01084 | CASING-VALVE,R |
| 304 | XKAH-00930 | COVER-FRONT |
| 351 | XKAH-01085 | PLUNGER |
| 443 | XKAH-00139 | BEARING-ROLLER |
| 444 | XKAH-00138 | BEARING-ROLLER |
| 451 | XKAH-00137 | PIN-SPRING |
| 464 | XKAH-01157 | PLUG ASSY-VP |
| 469 | XKAH-01237 | PLUG ASSY-VP |
| 702 | XKAH-00130 | PISTON-BRAKE |
| 742 | XKAH-00126 | PLATE-FRICTION |
| 743 | XKAH-00125 | PLATE-SEPERATION |
| 51 | XKAH-01086 | RELIEF VALVE |
| 31 | XKAH-01268 | BRAKE VALVE |
| 747 | XKAH-01094 | PLATE-NAME |
| 747 | XKAH-01624 | PLATE-NAME |
|
The following seal kits we also can supply:
Main pump seal kit;
Hydraulic pump seal kit;
Regulater valve seal kit;
Plunger pump seal kit;
O ring box;
Gear pump seal repair kit,
Travel motor seal kit,
Breaker hammer seal kit;
Swing motor seal kit,
Lever seal kit;
Pilot valve seal kit/PPC seal;
Adjuster seal kit;
Center joint seal kit;
Turing joint seal kit;
Servo valve seal kit;
Boom cylinder seal kit;
Arm cylinder seal kit;
Bucket cylinder seal kit;
Control valve seal kit.
About Our Services
· Wide product range and delivery goods in time · Choosing the best quality of products (if we don't make) for customers in whole China. · Guaranteed quality and pretty competitive price. · Products are superior in quality. Each product must pass strict inspection by our QC and engineer. · Accept orders for products custom-made according to your drawings or technical specifiion. |
Welcom to contact us,we can provide the high quality and best price!
