Product Details:
Payment & Shipping Terms:
|
| Product: | XKAY-01431 XKAY-01723 Remote Control Lever Seal Kit | Part Number: | XKAY-01431 XKAY-01723 XKAY01431 XKAY01723 |
|---|---|---|---|
| Fit For Model: | Hyundai R140W-9 R170W-9 R140LC-9 R145CR-9 | Group: | Remote Control Valve Pedal Seal Kit / Remote Control Lever Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | XKAY-01723,140LC-9 Lever Seal Kit,R140W-9 Lever Seal Kit |
||
| Brand Name | HQPA/OEM |

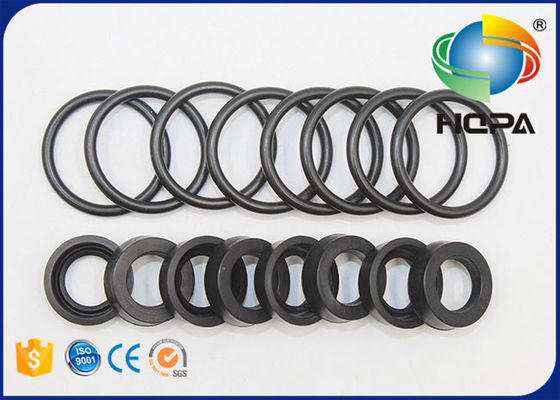

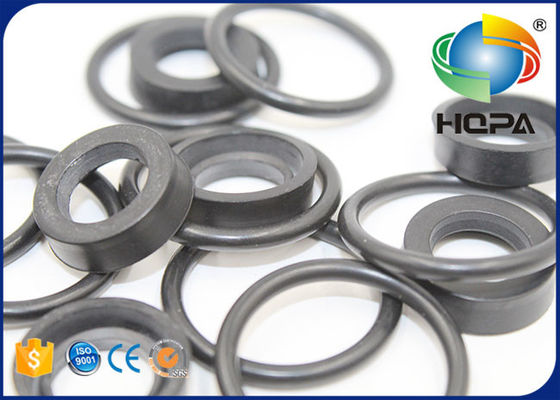

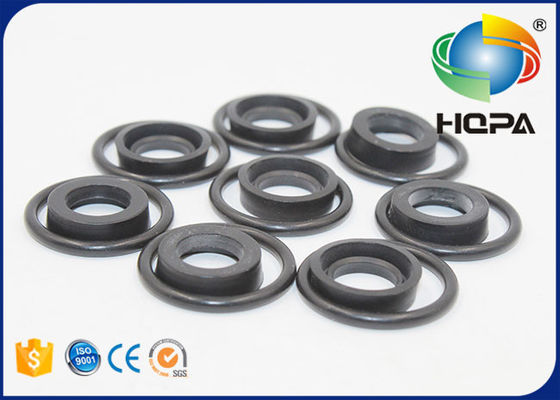

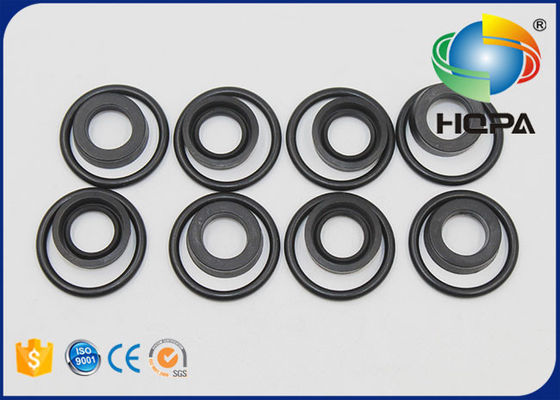

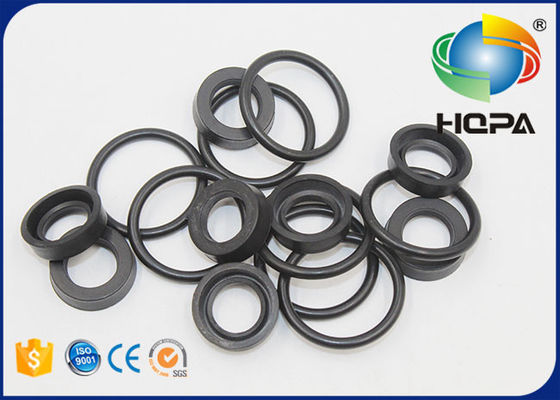

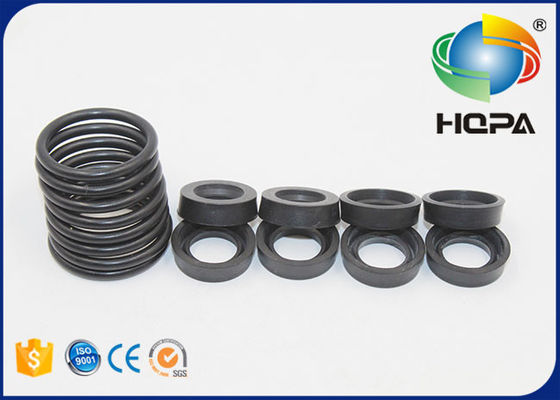

| Product Name | XKAY-01431 XKAY-01723 Remote Control Lever Seal Kit for Hyundai R140W-9 R140LC-9 |
| Product style | Remote Control Lever Seal Kit / Control Lever Seal Kit |
| Part No. | XKAY-01431 XKAY-01723 XKAY01431 XKAY01723 |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Hyundai R140W-9 R170W-9 R140LC-9 R145CR-9 |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
2. Fit Model
Part Number: XKAY-01431 XKAY-01723
Group: Remote Control Lever Seal Kit
Fit for model: Hyundai R140W-9 R170W-9 R140LC-9 R145CR-9
.
3.Related parts
| Part No | Parts name | Part No | Parts name |
| 31Q6-20011 | RCV LEVER ASSY-LH | 31Q6-20012 | RCV LEVER ASSY-LH |
| 31Q6-20013 | RCV LEVER ASSY-LH | 31QA-20013 | RCV LEVER ASSY-LH |
| 31Q6-20021 | RCV LEVER ASSY-RH | 31Q6-20022 | RCV LEVER ASSY-RH |
| 31Q6-20023 | RCV LEVER ASSY-RH | 31QA-20023 | RCV LEVER ASSY-RH |
| 31Q6-21011 | RCV LEVER SUB-LH | 31Q6-21012 | RCV LEVER SUB-LH |
| 31Q6-21013 | RCV LEVER SUB-LH | 31QA-21013 | RCV LEVER SUB-LH |
| 31Q6-21021 | RCV LEVER SUB-RH | 31Q6-21022 | RCV LEVER SUB-RH |
| 31Q6-21023 | RCV LEVER SUB-RH | 31QA-21023 | RCV LEVER SUB-RH |
| XKAY-01417 | CHN | XKAY-01706 | CHN |
| XKAY-00065 | PLUG | XKAY-00768 | BUSHING |
| XKAY-01708 | BUSHING | XKAY-01418 | SPOOL KIT(1,3) |
| XKAY-01709 | SPOOL KIT(1,3) | XKAY-01419 | SPOOL KIT(2,4) |
| XKAY-01973 | SPOOL KIT(2,4) | XKAY-00771 | SPOOL |
| XKAY-01711 | SPOOL | XKAY-00772 | SHIM |
| XKAY-01420 | SPRING(1,3) | XKAY-00436 | SEAT-SPRING(1,3) |
| XKAY-00058 | STOPPER | XKAY-01421 | SPRING |
| XKAY-01749 | SPRING | XKAY-01422 | PLUG KIT(1,3) |
| XKAY-01918 | PLUG KIT(1,3) | XKAY-01423 | PLUG KIT(2,4) |
| XKAY-01974 | PLUG KIT(2,4) | XKAY-00052 | ROD-PUSH(1,3) |
| XKAY-00439 | ROD-PUSH(2,4) | XKAY-00781 | SPRING(2,4) |
| XKAY-00059 | SEAT-SPRING(2,4) | XKAY-00784 | PLUG |
| XKAY-01714 | PLUG | XKAY-00785 | O-RING |
| XKAY-01424 | SEAL-ROD | XKAY-01715 | SEAL-ROD |
| XKAY-01425 | PLATE | XKAY-01716 | PLATE |
| XKAY-00786 | BOOT | XKAY-00049 | JOINT ASSY |
| XKAY-01717 | JOINT ASSY | XKAY-01066 | SWASH PLATE |
| XKAY-00047 | NUT-HEX | XKAY-01426 | HANDLE KIT LH |
| XKAY-01718 | HANDLE KIT-LH | XKAY-01427 | HANDLE KIT RH |
| XKAY-01719 | HANDLE KIT-RH | XKAY-00046 | NUT-LOCK |
| XKAY-01428 | HANDLE ASSY-LH | XKAY-01720 | HANDLE ASSY-LH |
| XKAY-01429 | HANDLE ASSY-RH | XKAY-01721 | HANDLE ASSY-RH |
| 31QA-22013 | HANDLE KIT-LH | 31QA-22023 | HANDLE KIT-RH |
| XKAY-01430 | BAR-HANDLE | XKAY-01722 | BAR-HANDLE |
| XKAY-00811 | NUT | XKAY-01083 | BOOT |
| XKAY-00662 | PIN-SPRING | XKAY-00074 | BUSHING |
| XKAY-00792 | CONNECTOR-ORFS | XKAY-00798 | CONNECTOR-ORFS |
| XKAY-00793 | O-RING | XJBN-01115 | FILTER-LAST GUARD |
| XKAY-00799 | FILTER-LAST GUARD | XKAY-00795 | O-RING |
| XKAY-00800 | O-RING | XKAY-01431 | SEAL KIT |
| XKAY-01723 | SEAL KIT | 31Q4-41010 | TRAVEL MOTOR |
| 31Q4-41300 | TRAVEL MOTOR | XJDD-00887 | MOTOR UNIT |
| XJDD-01259 | MOTOR UNIT | XJDD-00336 | ROTARY GROUP |
| XJDD-00337 | ROTARY-HYD SECTION | XJDD-00230 | CYLINDER |
| XJDD-00231 | CONTROL LENS | XJDD-00232 | PIN-CENTER |
| XJDD-00233 | PISTON ASSY | XJDD-00918 | SHIM(3.3T)-ADJUST |
| XJDD-00919 | SHIM(3.4T)-ADJUST | XJDD-00234 | SHIM(3.5T)-ADJUST |
| XJDD-00235 | SHIM(3.6T)-ADJUST | XJDD-00236 | SHIM(3.7T)-ADJUST |
| XJDD-00237 | SHIM(3.8T)-ADJUST | XJDD-00238 | SHIM(3.9T)-ADJUST |
| XJDD-00239 | SHIM(4.0T)-ADJUST | XJDD-00240 | SPRING-PRESSURE |
| XJDD-00241 | PLATE-RETAINING | XJDD-00674 | SCREW-PAN HEAD |
| XJDD-00477 | SHAFT-DRIVE | XJDD-00217 | SHIM(5.9T) |
| XJDD-00218 | PLATE(3.1T)-BACK UP | XJDD-00219 | PLATE(3.5T)-BACK UP |
| XJDD-00220 | PLATE(3.45T)-BACK UP | XJDD-00221 | PLATE(3.4T)-BACK UP |
| XJDD-00222 | PLATE(3.35T)-BACK UP | XJDD-00223 | PLATE(3.3T)-BACK UP |
| XJDD-00224 | PLATE(3.25T)-BACK UP | XJDD-00225 | PLATE(3.2T)-BACK UP |
| XJDD-00226 | PLATE(3.15T)-BACK UP | XJDD-00227 | RING-RETAINING |
| XJDD-00228 | BEARING-ROLLER | XJDD-00229 | BEARING-ROLLER |
| XJDD-01009 | HOUSING | XJDD-01010 | SCREW-LOCKING |
| XJDD-00211 | RING-RETAINING | XJDD-00212 | SEAL RING-SHAFT |
| XJDD-00213 | PLATE-BACK UP | XJDD-00214 | O-RING |
| XJDD-01010 | SCREW-LOCKING | XJDD-00111 | PIN-THREADED |
| XJDD-00120 | NUT-SEAL LOCK | XJDD-00890 | CONTROL |
| XJDD-00929 | CONTROL PART | XJDD-00944 | HOUSING-CONTROL |
| XJDD-00265 | BUSHING-CONTROL | XJDD-01014 | PISTON-CONTROL |
| XJDD-00267 | BUSHING-ADJUSTING | XJDD-00268 | COLLAR-SPRING |
| XJDD-00269 | SPRING-PRESSURE | XJDD-00270 | SPRING-PRESSURE |
| XJDD-00271 | O-RING | XJDD-00272 | BOLT-SOCKET |
| XJDD-00174 | SCREW-LOCKING | XJDD-00273 | RING-RETAINING |
| XJDD-00954 | PIN-THREADED | XJDD-00275 | PIN-CYLINDER |
| XJDD-00276 | NUT-SEAL LOCK | XJDD-00277 | PIN-D/BREAK OFF |
| XJDD-00278 | DISC-RETAINING | XJDD-00930 | LIMIT-STROKE |
| XJDD-00958 | HOUSING | XJDD-00959 | PISTON |
| XJDD-00281 | PISTON-CONTROL | XJDD-00338 | SPRING-PRESSURE |
| XJDD-00282 | SCREW-LOCKING | XJDD-00963 | SCREW-LOCKING |
| XJDD-00964 | SCREW-SOCKET HEAD | XJDD-00284 | O-RING |
| XJDD-00966 | SCREW-LOCKING | XJDD-00175 | SCREW-LOCKING |
| XJDD-00286 | ORIFICE | XJDD-00287 | O-RING |
| XJDD-01019 | SHIM | XJDD-00277 | PIN-D/BREAK OFF |
| XJDD-00971 | PISTON | XJDD-00972 | PISTON-CONTROL |
| XJDD-00973 | SPRING-PRESSURE | XJDD-00974 | O-RING |
| XJDD-00975 | SHIM | XJDD-00931 | PORT PLATE |
| XJDD-00248 | PISTON-POSITIONING | XJDD-00249 | TRUNNION |
| XJDD-00934 | PISTON-W/PISTON RINGS | XJDD-00251 | PIN-THREADED |
| XJDD-00936 | VALVE-CHECK | XJDD-00259 | O-RING |
| XJDD-00329 | RING-BACK UP | XJDD-00620 | O-RING |
| XJDD-00254 | BUSHING | XJDD-00255 | SCREW-SOCKET HEAD |
| XJDD-00256 | SCREW-SOCKET HEAD | XJDD-00258 | O-RING |
| XJDD-00260 | SCREW-SOCKET HEAD | XJDD-00262 | PIN-CYLINDER |
| XJDD-00178 | PIN-D/BREAK OFF | XJDD-00181 | PIN-D/BREAK OFF |
| XJDD-00210 | SCREW-LOCKING | XJDD-00622 | RELIEF VALVE |
| XJDD-01004 | SEAL KIT |
4.Fitted for below models:
| R1200-9 | R125LCR-9A | R140LC-9 | R140LC-9(INDIA) | R140LC-9A |
| R140LC-9S | R140LC-9S(BRAZIL) | R140LC-9V(INDIA) | R140W-9 | R140W-9A |
| R140W-9S | R145CR-9 | R145CR-9A | R160LC-9 | R160LC-9A |
| R160LC-9S | R160LC-9S(BRAZIL) | R170W-9 | R170W-9S | R180LC-9 |
| R180LC-9A | R180LC-9S | R180W-9A | R180W-9S | R210LC-9 |
| R210NLC-9 | R210W-9 | R210W-9A | R210W9-MH | R210W-9S |
| R220LC-9(INDIA) | R220LC-9A | R220LC-9S | R220LC-9S(BRAZIL) | R220LC-9SH |
| R220NLC-9A | R235LCR-9 | R235LCR-9A | R250LC-9 | R260LC-9A |
| R260LC-9S | R260LC-9S(BRAZIL) | R290LC-9 | R290LC-9MH | R300LC-9A |
| R300LC-9S | R300LC-9SH | R320LC-9 | R330LC-9A | R330LC-9S |
| R330LC-9SH | R380LC-9 | R380LC-9A | R380LC-9DM | R380LC-9MH |
| R380LC-9SH | R390LC-9(INDIA) | R430LC-9 | R430LC-9A | R430LC-9SH |
| R480LC-9 | R480LC-9A | R480LC-9MH | R480LC-9S | R520LC-9 |
| R520LC-9A | R520LC-9S | R55-9 | R55-9A | R55W-9 |
| R55W-9A | R60-9S | R60CR-9 | R60CR-9A | R60W-9S |
| R800LC-9 | R800LC-9 FS | R80CR-9 | R80CR-9A |
