Product Details:
Payment & Shipping Terms:
|

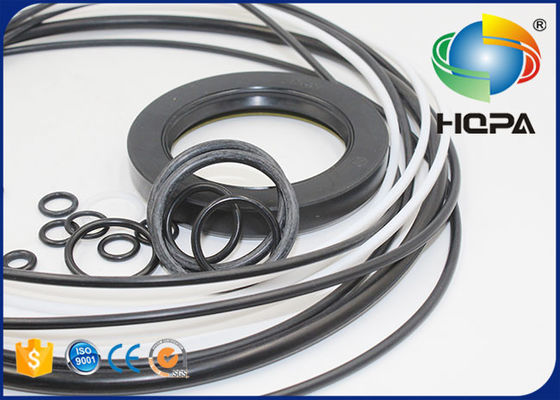

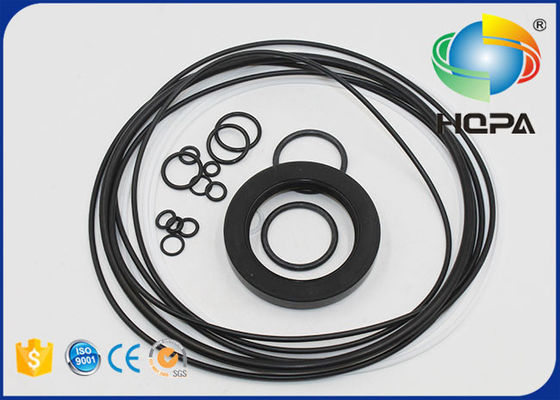

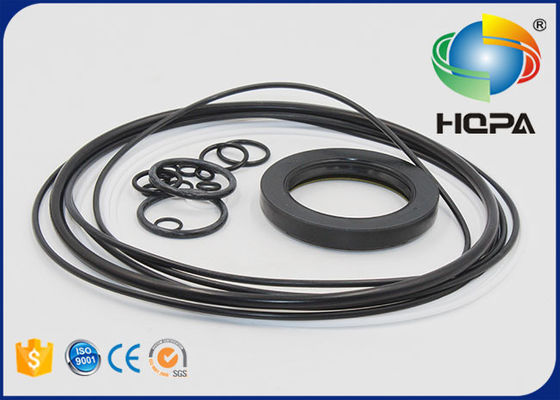

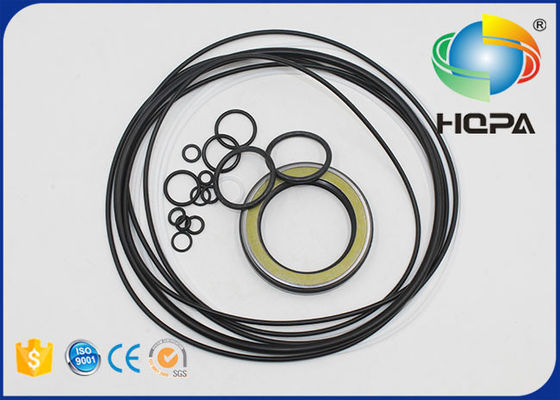

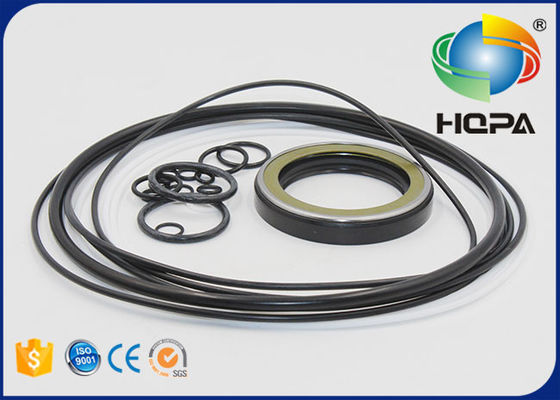

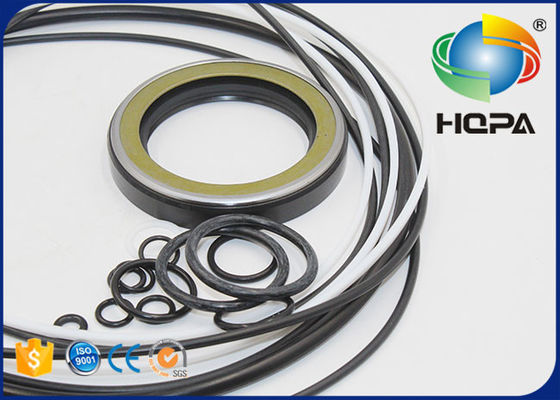

| Product: | 7Y-4222 7Y4222 Final Drive Seal Kit | Part Number: | 7Y-4222 7Y4222 |
|---|---|---|---|
| Fit For Model: | E320B E312D2 LGP | Group: | Final Drive Seal Kit / Travel Motor Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | 7Y4222,E320B Final Drive Seal Kit,E312D2 Final Drive Seal Kit |
||
|
The travel motor provides the power that the final drive transforms into torque. Then torque is transferred to the sprocket, which turns the wheel or track. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 7Y-4222 7Y4222 Final Drive Seal Kit for Excavator E320B E312D2 LGP |
| Product style | Travel Motor Seal Kit / Motor Seal Kit |
| Part No. | 7Y-4222 7Y4222 |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | 313D2 LGP 315C 315D L 316E L 318B 318C 318D L |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
Part Number: 7Y-4222 7Y4222
Group: Travel Motor Seal Kit
Fit for model: E320B E312D2 LGP
.
4.Related spare parts:
| Part No | Parts name | Part No | Parts name |
| 209-5894 | SHAFT | 087-4743 | STOP |
| 094-1399 | RING-RETAINING | 7Y-4212 | BEARING |
| 087-4757 | PISTON | 107-6969 | BODY |
| 122-5114 | GUIDE-BALL | 209-5909 | PLATE-CAM |
| 147-5860 | PISTON AS | 133-6777 | BARREL AS |
| 107-6954 | PLATE-FRICTION | 107-6955 | PLATE-SEPARATOR |
| 096-1523 | GUIDE-PISTON | 7Y-4213 | PISTON-BRAKE |
| 7Y-4202 | HEAD | 8T-4944 | BOLT-SOCKET HEAD (M16X2X40-MM) |
| 096-1521 | SHIM (1-MM THK) | 096-3785 | SHIM (1.2-MM THK) |
| 096-3786 | SHIM (1.4-MM THK) | 096-3787 | SHIM (1.6-MM THK) |
| 096-1522 | SHIM (2-MM THK) | 096-3788 | SHIM (1.8-MM THK) |
| 096-5916 | SEAT | 2D-6642 | BALL |
| 095-1572 | SEAL-O-RING | 096-5919 | RING-BACKUP |
| 096-5915 | RETAINER | 096-4003 | SET-BEARING |
| 7Y-4234 | RACE-NEEDLE ROLLER | 095-1585 | SEAL-O-RING |
| 087-4742 | VALVE | 096-1519 | SEAT |
| 095-7380 | SPRING | 095-7382 | RETAINER |
| 094-1875 | DOWEL | 095-7378 | WASHER SET |
| 8T-6759 | PLUG-PIPE | 095-1575 | SEAL-O-RING |
| 096-4378 | RING-BACKUP | 096-4377 | SEAL-O-RING |
| 8T-6759 | PLUG-PIPE | 095-7384 | SEAL-O-RING |
| 095-7383 | SEAL-O-RING | 095-7386 | RING-BACKUP |
| 095-7387 | RING | 095-1685 | SEAL-O-RING |
| 118-4057 | SPRING | 7Y-4215 | SPACER |
| 095-1586 | SEAL-O-RING | 7Y-4217 | RING-BACKUP |
| 096-4376 | SEAL-LIP TYPE | 123-2008 | KEY |
| 3K-0360 | SEAL-O-RING | 9S-4185 | PLUG (3/4-16-THD) |
| 095-1700 | SEAL-O-RING | 7Y-4224 | ORIFICE |
| 096-3978 | SPRING | 7Y-4216 | SPOOL |
| 2M-9780 | SEAL-O-RING | 087-4786 | ADAPTER |
| 121-1558 | PIN | 094-1882 | PLUG |
| 7Y-4222 | KIT-SEAL (TRAVEL MOTOR) | 543-3690 | SWASHPLATE GP |
| 543-3692 | CONTROL AS-PISTON PUMP | 543-3689 | SHAFT & CPLG GP-PISTON PUMP (MAIN HYDRAULIC) |
| 543-3694 | VALVE GP-PUMP CONTROL (CONTROL) | 543-3691 | SWASHPLATE GP |
| 543-3693 | COVER GP-PUMP | 517-2780 | RING-RETAINING |
| 543-3698 | SEAL-LIP TYPE | 9T-3743 | SHIM (1-MM THK) |
| 095-0687 | BOLT-SOCKET HEAD (M14X2X45-MM) | 543-3745 | FLANGE |
| 543-3687 | ROTATING GP-PUMP | 465-4551 | PIN-CYLINDER |
| 543-3697 | GASKET | 543-3688 | ROTATING GP-PUMP |
| 543-3696 | BLOCK | 469-3314 | SEAL-O-RING |
| 543-3699 | COVER | 6V-3938 | BOLT (M10X1.5X20-MM) |
5. Fitted for models:
| 311C | 313D2 LGP | 315C | 315D L | 316E L |
| 318B | 318C | 318D L | 318D2 L | 318E L |
| 319D | 319D L | 319D LN | 320 L | 320B |
| 320B L | 320C | 320C L | 320D | 320D FM |
| 320D GC | 320D L | 320D LN | 320D LRR | 320D RR |
| 320D2 | 320D2 GC | 320D2 L | 320E | 320E L |
| 320E LN | 320E LRR | 320E RR | 320N | 321B |
| 321C | 321D LCR | 322 | 322B L | 322C |
| 323D L | 323D LN | 323D SA | 323D2 L | 323E L |
| 324D | 324D L | 324D LN | 324E | 324E L |
| 324E LN | 325 | 325 L | 325 LN | 325B |
| 325B L | 325C | 325D | 325D L | 326D L |
| 329D | 329D L | 329D LN | 329E | 329E L |
| 329E LN | 330B | 330B L | 324D LN | 325D |
| 329D L | 336D L |
Welcome to contact us, we can provide high quality and the best price!
Contact Person: Sum Huang
Tel: 86-18902494641
Fax: 86-20-89858960
| Factory Address:Three Lane Seventh, LianXi,DongPu,TianHe District,GuangZhou | |
| Sales office:Building E NO.10 ,ZhuCun International Machinery City,ZhongShan Road,TianHe District,GuangZhou. | |
| +86-20-89858960 | |
| sum@excavatorsealkit.com | |
