Product Details:
Payment & Shipping Terms:
|

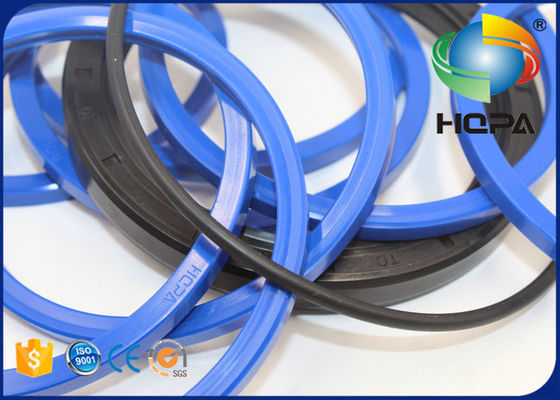

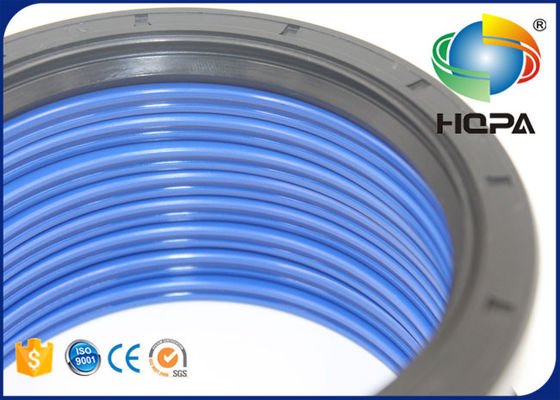

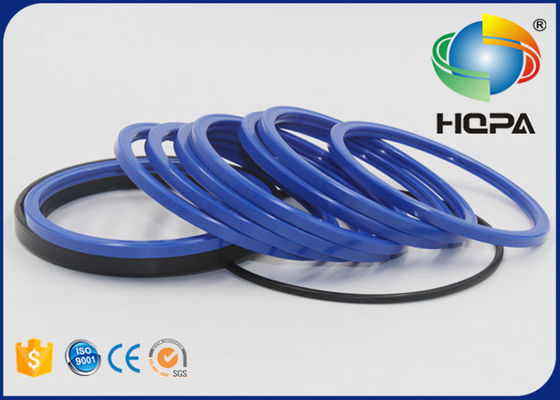

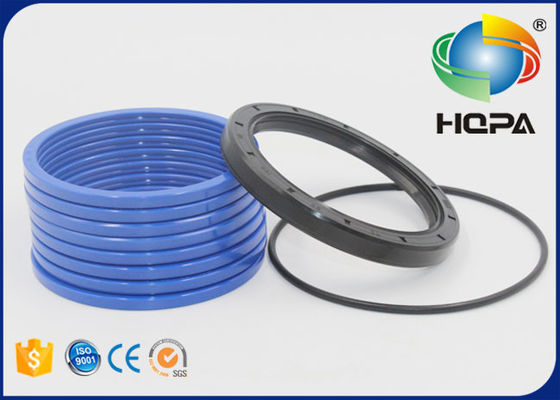

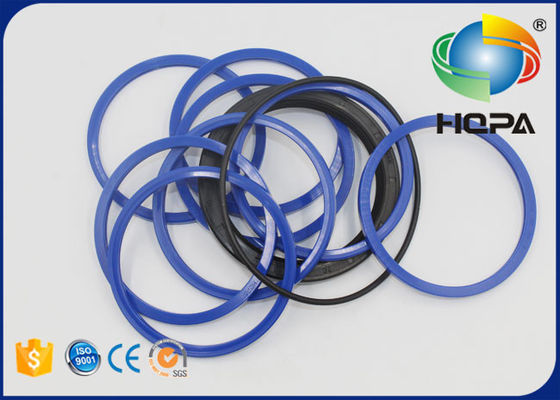

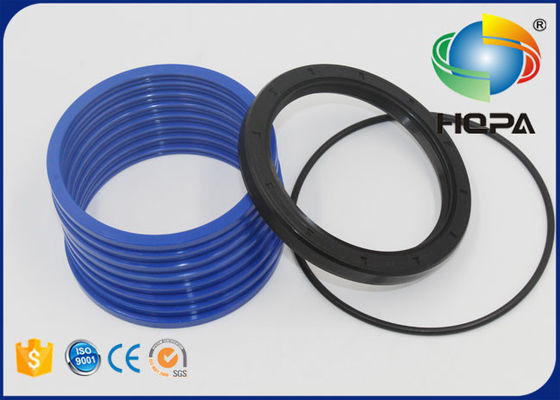

| Product: | 703-08-13102KT 703-08-13102 Swivel Joint Seal Kit | Part Number: | 703-08-13102KT 703-08-13102 7030813102KT 7030813102 Swivel Joint Assy |
|---|---|---|---|
| Fit For Model: | Excavator Komatsu PC50UU-1 PC38UU-1 PC40-6 | Group: | Center Joint Seal Kit / Swivel Joint Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | PC38UU-1 Swivel Joint Seal Kit,PC50UU-1 Swivel Joint Seal Kit,703-08-13102 |
||
|
Swivel joint is used to be a channel for the hydraulic fluid going to the travel motor. It has many other names, including rotary manifold, rotary union, center swivel, and center joint. It's an important part of the machine. If there is oil leak in the swivel joint, the travel motor will lose power. So when the travel motor acts without power, you should take it into consideration too that whether it‘s the problem of swivel joint, and to change swivel join seal kits. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 703-08-13102KT 703-08-13102 Swivel Joint Seal Kit for Komatsu PC50UU-1 PC38UU-1 |
| Product style | Swivel Joint Seal Kit / Joint Seal Kit |
| Part No. | 703-08-13102KT 703-08-13102 7030813102KT 7030813102 Swivel Joint Assy |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Komatsu PC50UU-1 PC38UU-1 PC40-6 |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
|
Part Number: 703-08-13102KT 703-08-13102 |
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 703-08-13102 | SWIVEL JOINT ASS'Y | 703-08-13101 | SWIVEL JOINT ASS'Y |
| 703-08-92541 | SHAFT,SWIVEL | 703-08-98110 | PLUG |
| 703-08-91521 | ROTOR | 703-08-91520 | ROTOR |
| 703-08-96510 | SEAL,OIL | 04077-00100 | RING,SNAP |
| 703-08-95510 | SEAL,SLIPPER | 703-08-94510 | RING |
| 04064-07525 | RING,SNAP | 703-08-93520 | COVER |
| 07000-02105 | O-RING | 01010-50835 | BOLT |
| 01643-30823 | WASHER | 01602-20825 | WASHER,SPRING |
| 20U-25-11100 | CIRCLE,SWING | 07020-00000 | FITTING,GREASE |
| 01010-51680 | BOLT | 04020-01638 | PIN,DOWEL |
| 07049-02025 | PLUG | 20T-26-00100 | SWING MACHINERY A. |
| 20U-26-00010 | SWING MACHINERY A. | 20T-26-00080 | SWING MACHINERY A. |
| 20T-26-31220 | CHN,LOWER | 07044-12412 | PLUG |
| 07002-02434 | O-RING | 06030-22212 | BEARING,ROLLER |
| 04071-00110 | RING,SNAP | 20T-26-31250 | COLLAR |
| 07000-02060 | O-RING | 07012-00075 | SEAL,OIL |
| 20T-26-41230 | SHAFT | 20T-26-31230 | SHAFT |
| 20T-26-41250 | COLLAR | 20T-26-31240 | COLLAR |
| 20T-26-41260 | GEAR | 20T-26-31260 | GEAR |
| 06044-00308 | BEARING,ROLLER | 20R-26-11360 | COLLAR |
| 04064-04018 | RING,SNAP | 20T-26-41110 | CHN,UPPER |
| 20T-26-31210 | CHN,UPPER | 20T-26-41220 | SHAFT |
| 20S-26-11130 | SHAFT | 06040-06304 | BEARING,BALL |
| 06044-00205 | BEARING,ROLLER | 20T-26-41210 | COUPLING |
| 21E-26-11210 | COUPLING | 04050-15050 | PIN,COTTER |
| 04020-01434 | PIN,DOWEL | 01011-51200 | BOLT |
| 01643-31232 | WASHER | 01010-51035 | BOLT |
| 01643-31032 | WASHER | 07049-01215 | PLUG |
| 20T-26-31110 | FILLER | 20T-26-31120 | GAUGE,OIL |
Welcome to contact us, we can provide high quality and the best price!
