Product Details:
Payment & Shipping Terms:
|

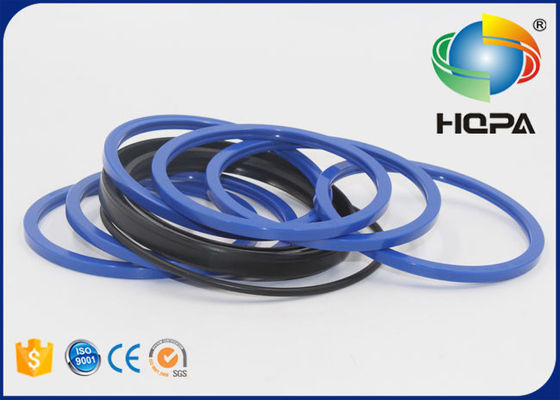

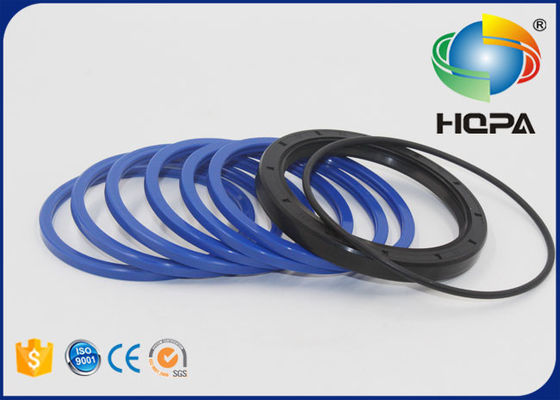

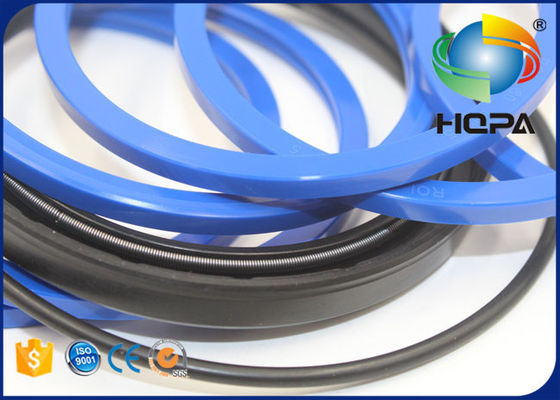

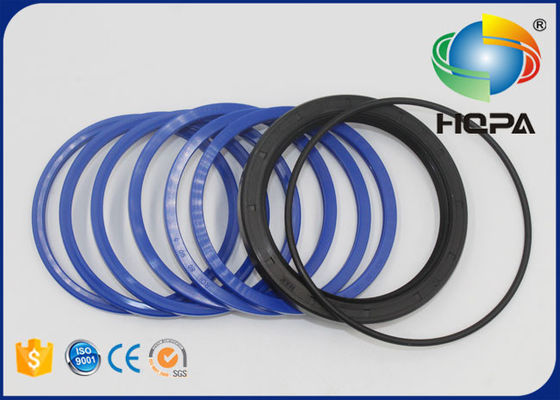

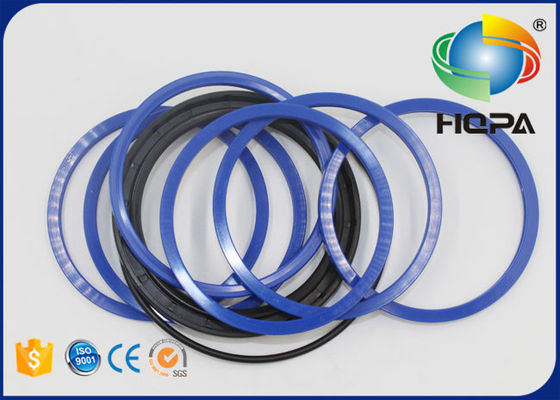

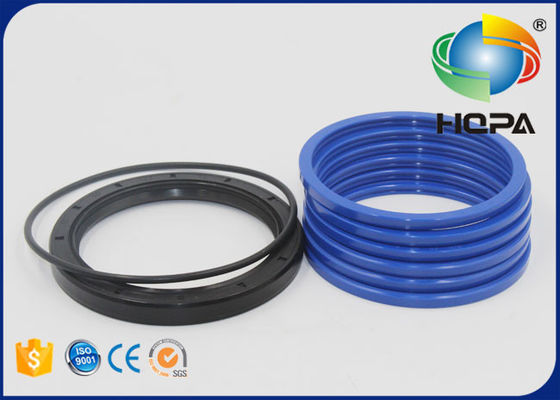

| Product: | 703-08-33110KT 703-08-33110 Swivel Joint Seal Kit | Part Number: | 703-08-33110KT 703-08-33110 7030833110KT 7030833110 Swivel Joint Assy |
|---|---|---|---|
| Fit For Model: | Excavator Komatsu PC100-5 PC120-5 | Group: | Center Joint Seal Kit / Swivel Joint Seal Kit |
| Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
| High Light: | PC120-5 Swivel Joint Seal Kit,PC120-5 Swivel Joint Seal Kit,703-08-33110KT |
||
|
Swivel joint is used to be a channel for the hydraulic fluid going to the travel motor. It has many other names, including rotary manifold, rotary union, center swivel, and center joint. It's an important part of the machine. If there is oil leak in the swivel joint, the travel motor will lose power. So when the travel motor acts without power, you should take it into consideration too that whether it‘s the problem of swivel joint, and to change swivel join seal kits. |
2.General Product Information:
| Brand Name | HQPA/OEM |
| Product Name | 703-08-33110KT 703-08-33110 Swivel Joint Seal Kit for Komatsu PC100-5 PC120-5 |
| Product style | Swivel Joint Seal Kit / Joint Seal Kit |
| Part No. | 703-08-33110KT 703-08-33110 7030833110KT 7030833110 Swivel Joint Assy |
| Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
| Appliion | Komatsu PC100-5Z PC100-5 PC100-5C PC100-5S PC100L-5 PC120-5Z PC120-5 PC120-5X PC120-5M PC120-5S PC120-5C PC130-5 PC130-5S PC120-5K PC130-5K PC150HD-5K PC150NHD-5K |
| MOQ | 1 PC |
| Condition | 100% New |
| Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
| Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
| Departure ports | Huangpu(Guangzhou), China (Mainland) |
| Delivery time | 3-5 days after payment received(public holiday excluded) |
| Place of origin | China (Mainland) |
| Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
|
Part Number: 703-08-33110KT 703-08-33110 |
4.Related parts
| Part No | Parts name | Part No | Parts name |
| 703-08-33110 | SWIVEL JOINT ASS'Y | 703-08-91730 | ROTOR |
| 703-08-95611 | SEAL | 703-08-96510 | SEAL,OIL |
| 07000-02105 | O-RING | 01010-50835 | BOLT |
| 01643-30823 | WASHER | 203-60-56702 | TRAVEL MOTOR ASS'Y |
| 203-60-56701 | TRAVEL MOTOR ASS'Y | TZ203B210101-A | FLANGE KIT,REAR |
| TZMB700-070 | PLUG | TZGM1-4 | PLUG |
| TZGM1-8 | PLUG | TZMB700-050 | PLUG |
| TZ850A0006-00 | PLATE, NAME | 04260-00793 | BALL |
| TZ210A7105-00 | PISTON KIT,(9 PIECES) | TZ200B2004-00 | BLOCK,CYLINDER |
| TZ200B200301-C | PLATE,SWASH | TZ200B2032-01 | PLATE |
| TZ200B2032-00 | PLATE,THRUST | TZ200B2007-01 | PLATE |
| TZ231F2012-00 | PISTON | TZ100A2013-00 | SPRING |
| 07000-15145 | O-RING | TZ231F2023-00 | RING,BACK-UP |
| 07000-15170 | O-RING | TZSUN-2BG170 | RING,BACK-UP |
| TZ200B2002-01 | SHAFT | TZJB1501-26 | BALL |
| 06000-06207 | BEARING | TZTCN-32-52-11 | SEAL,OIL |
| TZ210A2009-00 | PLATE,TIMING | TZJB1354-5-12 | PIN |
| 06000-06204 | BEARING | TZ430F2019-00 | VALVE |
| TZ100A2020-00 | SPRING | 07000-11009 | O-RING |
| TZ100A2018-00 | SEAT,VALVE | TZ100A2022-00 | RING |
| TZ200B2073-00 | VALVE | TZ300B2043-01 | SPRING |
| TZ300B2039-00 | STOPPER | TZ300B2042-00 | RING |
| TZ200B2085-00 | SPRING | 203-60-56702 | TRAVEL MOTOR ASS'Y |
| 203-60-56701 | TRAVEL MOTOR ASS'Y | TZ203B2107-01 | BODY KIT |
| TZ203B2107-00 | BODY KIT | TZ150F2075-00 | STOPPER |
| TZ150F2077-00 | SPRING | TZ150F2064-01 | SPRING |
| TZ203B2062-00 | PLUG | 07000-13032 | O-RING |
| 07000-11006 | O-RING | 07000-12020 | O-RING |
| 01252-30860 | BOLT | 01252-30855 | BOLT |
| TZSW-M8 | WASHER | TZ100A2052-00 | STOPPER |
| 07002-02034 | O-RING | TZJB1354-10-28 | PIN |
| 01252-31440 | BOLT | 203-60-56702 | TRAVEL MOTOR ASS'Y |
| 203-60-56701 | TRAVEL MOTOR ASS'Y | TZ240B1001-00 | HUB |
| TZ200B1001-00 | HUB | TZ200B1102-03 | SPINDLE KIT |
| 07000-15280 | O-RING | TZ200B1021-00 | BEARING |
| TZ200B1104-02 | RV GEAR ASS'Y | TZ200B1204-01 | RV GEAR KIT |
| TZ200B1009-01 | SHAFT,CRANK | TZ200B1022-00 | BEARING |
| TZ200B1023-00 | BEARING | TZ150A1020-00 | SNAP RING KIT,(12 KINDS) |
| TZ700C1016-00 | RING | TZ200B1008-00 | COVER |
| TZGM1-2 | PLUG | TZARP568-378-9 | O-RING |
| 01010-31245 | BOLT | TZSW-M12 | WASHER |
| 07000-11008 | O-RING | TZJW1516-G41-9 | O-RING |
| TZJB2808-4-14 | PIN | TZ220B9000-00 | SERVICE KIT |
| TZ205B9000-00 | SERVICE KIT | 07000-15145 | O-RING |
| TZ231F2030-00 | RING,BACK-UP | 07000-15170 | O-RING |
| TZSUN-2BG170 | RING,BACK-UP | TZTCN-32-52-11 | SEAL,OIL |
| 07000-11009 | O-RING | 07000-13032 | O-RING |
| 07000-11006 | O-RING | 07000-12020 | O-RING |
5. Relates:
|
We have important business in the overseas market due to our high quality and reasonable prices. Also, we can supply all kinds of excavator spare parts according to customers’ requirements! All the picture is just for your reference. We can provide service according to the client's requirements! |
Welcome to contact us, we can provide high quality and the best price!
