Product Details:
Payment & Shipping Terms:
|

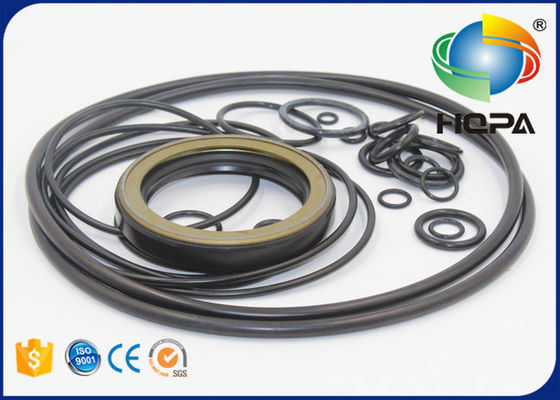

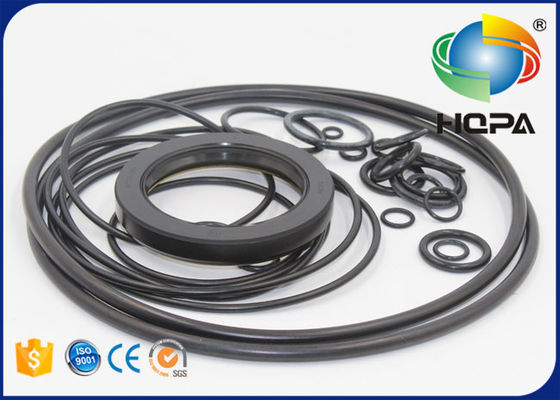

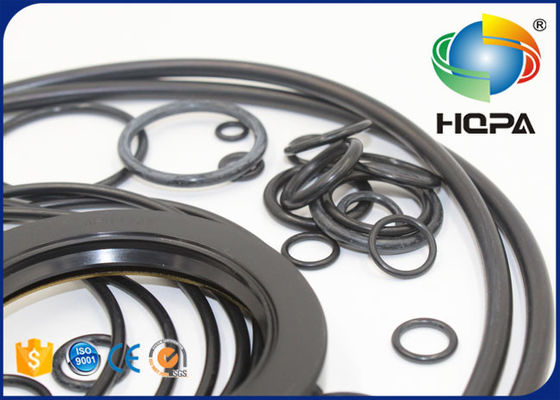

Product: | 708-2H-00380KT 708-2H-00380 Hydraulic Main Pump Seal Kit | Part Number: | 708-2H-00380KT 708-2H-00380 Hydraulic Main Pump Seal Kit For Komatsu PC300-6Z |
---|---|---|---|
Fit For Model: | Komatsu PC300-6 PC300-6Z PC300LC-6 PC300LC-6Z | Group: | Hydraulic Main Pump Seal Kit / Pump Seal Kit |
Loading Port: | HUAGNPU,China (Mainland) | Packing: | Neutral Packing / HQPA Packing |
High Light: | PC300-6Z Main Pump Seal Kit,708-2H-00380KT Main Pump Seal Kit,708-2H-00380 |
The hydraulic main pump is a kind of fluid pump. About the fluid sealing, it usually uses the mechanical seal to contain the fluid within a vessel (typically pumps, mixers, etc.) where a rotating shaft passes through a stationary housing or occasionally, where the housing rotates around the shaft.
Mechanical seals are usually fixed at the point of entry or exit of a rotating shaft. Typically it is used to prevent the leakage of one high-pressure fluid into a lower pressure fluid. |
2.General Product Information:
Brand Name | HQPA/OEM |
Product Name | 708-2H-00380KT 708-2H-00380 Hydraulic Main Pump Seal Kit for Komatsu PC300-6Z |
Product style | Hydraulic Main Pump Seal Kit / Main Pump Seal Kit |
Part No. | 708-2H-00380KT 708-2H-00380 7082H00380KT 7082H00380 Hydraulic Pump Assy |
Related parts: | Boom Cylinder Seal Kit / Arm Cylinder Seal Kit / Swing Motor Seal Kit / Travel Motor Seal Kit / Main Pump Seal Kit / Pilot Pump Seal Kit / Regulator Valve Seal Kit / Main Control Valve Seal Kit |
Appliion | Komatsu PC300-6 PC300-6Z PC300LC-6 PC300LC-6Z |
MOQ | 1 PC |
Condition | 100% New |
Package | Inner-Plastic Bag; Outer -Standard Carton Box. |
Payment | Western Union, L/C, T/T, MoneyGram, D/A, D/P etc. |
Departure ports | Huangpu(Guangzhou), China (Mainland) |
Delivery time | 3-5 days after payment received(public holiday excluded) |
Place of origin | China (Mainland) |
Appliion | Excavators, heavy machinery, mining, earth-moving, construction machinery, digger, car, truck. |
3. Fit Model
Part Number: 708-2H-00380KT 708-2H-00380 |
4.Related parts
Part No | Parts name | Part No | Parts name |
708-2H-00380 | PUMP ASS'Y | 708-2H-03110 | VALVE ASS'Y |
708-2H-03800 | BODY ASS'Y | 708-2H-01380 | PUMP SUB ASS'Y |
708-2H-04110 | CHN ASS'Y,FRONT | 07044-12412 | PLUG |
708-1W-28910 | O-RING | 708-2L-25650 | ORIFICE |
04530-01222 | BOLT,EYE | 708-2L-25731 | SPOOL |
708-2L-25611 | PISTON | 708-2L-25521 | SLEEVE |
708-2L-25531 | PLUG | 708-2L-24910 | O-RING |
708-2L-25542 | SEAT | 708-2L-25551 | SPRING |
708-2L-25640 | SEAT | 708-2H-25620 | PLUG |
07001-02012 | RING,BACK-UP | 07000-B2012 | O-RING |
01583-12012 | NUT | 708-2L-25631 | SPACER |
708-2L-25480 | FILTER | 708-2L-25490 | O-RING |
708-8E-16150 | PLUG | 708-2L-23920 | O-RING |
07000-B2110 | O-RING | 01252-61025 | BOLT |
01252-61065 | BOLT | 04020-00616 | PIN |
207-62-33920 | ELBOW | 708-2L-23950 | O-RING |
21T-62-29960 | TEE | 07102-20304 | HOSE |
01010-81025 | BOLT | 708-1L-29120 | PLATE |
07000-A2080 | O-RING | 07000-B2018 | O-RING |
708-1H-12262 | BEARING | 07000-A5180 | O-RING |
04020-01434 | PIN | 07000-B2012 | O-RING |
01010-61860 | BOLT | 01643-31845 | WASHER |
708-2H-22110 | SHAFT | 708-1H-22150 | BEARING |
708-17-05010 | WASHER KIT | 708-17-12780 | RING,SNAP |
708-2H-22510 | SEAL,OIL | 708-2H-22160 | SPACER |
04065-08225 | RING,SNAP | 708-18-13230 | PIN |
04065-05820 | RING | 708-2H-23130 | SEAT |
708-2H-23151 | SPRING | 708-2H-23141 | SEAT |
708-2H-23350 | GUIDE,RETAINER | 708-2H-23360 | PIN |
708-2H-23340 | RETAINER,SHOE | 708-2H-23311 | PISTON SUB ASS'Y |
04020-01434 | PIN | 07000-B1009 | O-RING |
706-75-40340 | BOLT | 708-2H-24311 | PISTON |
708-2H-24220 | ROD | 04020-00514 | PIN |
708-2H-25870 | CAM | 01010-80825 | BOLT |
01643-30823 | WASHER | 708-2H-24260 | STOPPER |
07000-B3032 | O-RING | 07001-03032 | RING |
708-2H-24320 | SCREW | 01643-32460 | WASHER |
01583-52414 | NUT | 708-2H-24270 | SCREW |
708-1W-28910 | O-RING | 708-2H-24140 | SPRING |
708-2H-24130 | PLUG | 708-2L-24620 | O-RING |
708-2H-24330 | PLATE | 708-2H-24340 | PACKING |
708-23-12350 | SCREW | 708-2H-21740 | PLUG |
708-1W-28910 | O-RING | 706-87-40150 | PLUG |
20B-27-11210 | BLEEDER | 708-2L-25650 | ORIFICE |
04530-01222 | BOLT,EYE | 708-2H-22220 | SHAFT |
708-1H-22150 | BEARING | 708-17-05010 | WASHER KIT |
708-17-12780 | RING,SNAP | 708-18-13230 | PIN |
04065-05820 | RING | 708-2H-23130 | SEAT |
708-2H-23151 | SPRING | 708-2H-23141 | SEAT |
708-2H-23350 | GUIDE,RETAINER | 708-2H-23360 | PIN |
708-2H-23340 | RETAINER,SHOE | 708-2H-23311 | PISTON SUB ASS'Y |
04020-01434 | PIN | 07000-B1009 | O-RING |
706-75-40340 | BOLT | 708-2H-24311 | PISTON |
708-2H-24220 | ROD | 04020-00514 | PIN |
708-2H-25870 | CAM | 01010-80825 | BOLT |
01643-30823 | WASHER | 708-2H-24260 | STOPPER |
07000-B3032 | O-RING | 07001-03032 | RING |
708-2H-24320 | SCREW | 01643-32460 | WASHER |
01583-52414 | NUT | 708-2H-24270 | SCREW |
708-1W-28910 | O-RING | 708-2H-24140 | SPRING |
708-2H-24130 | PLUG | 708-2L-24620 | O-RING |
708-2H-22140 | COUPLING | 708-2H-12420 | RING |
708-2H-21860 | BEARING,THRUST | 708-2H-21820 | GEAR,BEVEL |
708-2H-21850 | BUSHING | 708-2H-21810 | IMPELLER |
04020-00820 | PIN | 708-2H-21830 | GEAR,BEVEL |
01010-61440 | BOLT | 01643-31445 | WASHER |
708-2H-21630 | COVER | 07000-A2105 | O-RING |
708-2H-05010 | SHIM KIT | 01010-81235 | BOLT |
01643-31232 | WASHER | 708-2H-25650 | ORIFICE |
708-2L-25211 | SOLENOID ASS'Y | 07000-B2016 | O-RING |
01252-60612 | BOLT | 708-2L-25223 | SLEEVE |
708-2L-25232 | SPOOL | 708-2L-25291 | SEAT |
708-2L-25251 | SPRING | 708-2L-25261 | SPRING |
708-2L-25281 | PISTON | 07040-11007 | PLUG |
708-2L-23920 | O-RING | 708-2H-25370 | LEVER |
708-2L-25311 | PIN | 708-2L-25330 | BEARING |
708-2L-25321 | WASHER | 01580-00605 | NUT |
708-2L-25340 | PLUG | 01583-11811 | NUT |
708-2H-19250 | O-RING | 708-2L-25382 | PLUG |
07000-B2010 | O-RING | 04065-01610 | RING |
5. Related models:
PC200-8 | PC30-1 | PC90-1 | PC450-6 | D20AG-7 |
D39PX-23 | D21E-6 | PW130-7K | PC300LC-7 | PC120-5C |
PC18MR-2 | PW05-1 | PC120SC-6 | PC190NLC-8 | PC120S-3 |
DDM020-5 | PC1250LC-7 | PC400LC-5 | D50A-18 | PC200LL-6 |
PC150HD-5K | PC75UD-3 | PC200LC-6LE | PC1600SP-1 | D39EX-21 |
PC120-6E0 | PC1000SP-1 | PC200-5S | PC300-6Z | PC210LC-6 |
D61EX-23 | PC25R-8 | PC200-7 | PC130-5 | PC100U-2 |
D21P-7A | PC120-5X | PC25-1 | D85A-21B-ER | PC850-8R |
PC290LC-7K | PC200-6 | PC750LC-6K | PC350-7-AA | PC200LC-5C |
PC600-7-M1 | D65EX-17 | PC40FR-1 | PC30-7 | D50P-18 |
PC250-6 | D40PL-5 | D20A-3 | D61PX-23 | D70LE-8 |
